Electric Vehicle Power Supplies
Wall Industries offers a wide variety of highly specialized power supplies designed for use in EV applications and EV charging stations.
|PSEF100||Input Range: 85~305||Input Voltage: 115/230||Output Voltage: 12, 15, 24, 48||No. Outputs: S||Output Power (W): 100.5, 100.8, 102||Get a Quote|

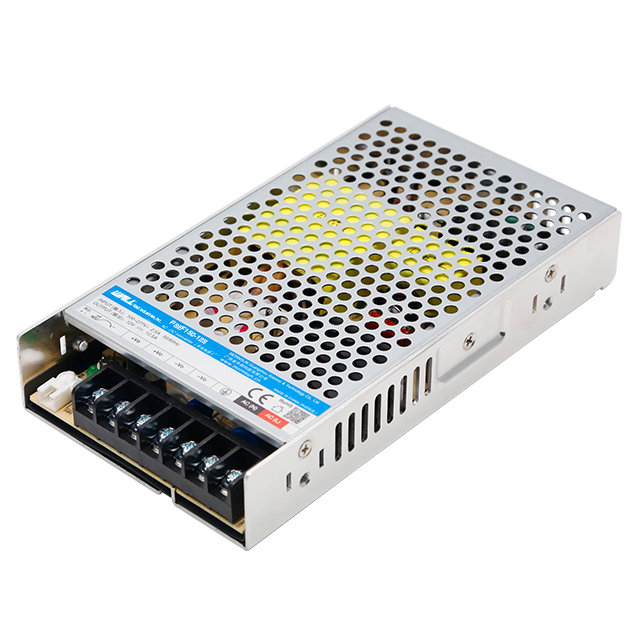

|PSEF150||Input Range: 85~305||Input Voltage: 115/230||Output Voltage: 12, 15, 24, 48||No. Outputs: S||Output Power (W): 150, 151.2, 153.6||Get a Quote|
|DCVK168||Input Range: 60~118||Input Voltage: 70/110||Output Voltage: 14||No. Outputs: S||Output Power (W): 168||Get a Quote|
|PSEH200||Input Range: 85~305||Input Voltage: 115/230||Output Voltage: 5, 12, 24, 36, 48||No. Outputs: S||Output Power (W): 200, 200.4, 201.6||Get a Quote|
|PSEF200||Input Range: 85~305||Input Voltage: 115/230||Output Voltage: 12, 15, 24, 48||No. Outputs: S||Output Power (W): 200.4, 201, 201.6||Get a Quote|

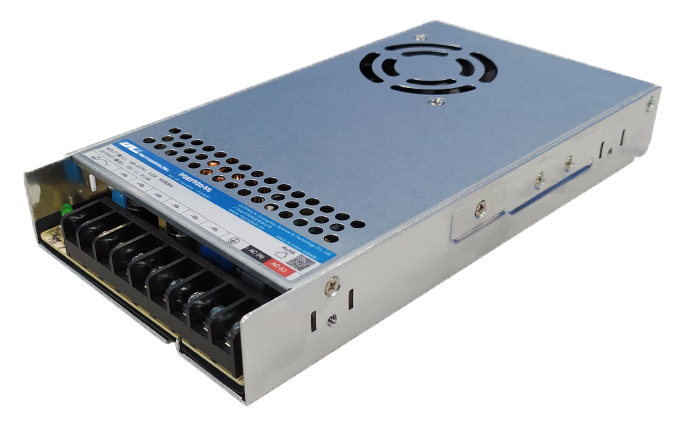

|PSEF320||Input Range: 85~305||Input Voltage: 115/230||Output Voltage: 4, 5, 12, 15, 24, 27, 48||No. Outputs: S||Output Power (W): 240, 300, 320.4, 321, 321.3, 321.6||Get a Quote|
|PSEH350||Input Range: 85~305||Input Voltage: 115/230||Output Voltage: 5, 12, 24, 36, 48||No. Outputs: S||Output Power (W): 300, 350.4, 351||Get a Quote|
|PSEH500||Input Range: 85~305||Input Voltage: 115/230||Output Voltage: 5, 12, 24, 36, 48, 55||No. Outputs: S||Output Power (W): 400, 489.5, 500.4, 501.6||Get a Quote|
|PSAEK3000HV-OR||Input Range: 90~264||Input Voltage: 115/230||Output Voltage: 150, 200, 250, 300, 400||No. Outputs: S||Output Power (W): 3000||Get a Quote|
|PSEV3600||Input Range: 220||Input Voltage: 220||Output Voltage: 29.2, 42, 54.6, 71.4, 84, 29.4, 44.1, 58.8, 73.5, 88.2||No. Outputs: S||Output Power (W): 3600||Get a Quote|
How Do Electric Vehicles Work?
Electric Vehicles (also known as EVs) can come in a number of configurations including hybrids, parallel hybrids, series hybrids, hydrogen fuel-cell cars and plug-in electric.
All cars (including conventional gasoline vehicles) perform a similar function: they are energy conversion devices which turn stored energy into kinetic energy.
Electric vehicles, and their many iterations, harness stored electric energy to either assist or solely power locomotion.
For example, parallel hybrid vehicles use energy from an on-board battery, as well as an internal combustion engine (ICE) to power locomotion.
Series hybrids draw on the electric motor to power the vehicle, when the battery runs low the ICE kicks in, driving a generator which recharges the battery.
Plug-in full electric vehicles, meanwhile, solely run off the stored energy in their batteries.
Key Electric Components In Electric Vehicles
The key electronic components in a full-electric vehicle are:
Electric motor – This is used to drive the rotation of the wheel. Typically an AC motor is used, however they can also be DC too. Electric motors differ greatly from gasoline engines, with a key differentiator being that they can provide instant torque.
Transmission – This transfers power from the electric motor to drive the wheels.
Battery – Most electric cars run off a large electric battery which consists of many smaller lithium-ion battery modules which are linked together in circuits designed to deliver the maximum power in the most efficient way.
Power electronic controller – This controls the speed of the motor (and the torque it produces) by managing the flow of electrical energy from the battery.
Onboard charger – This component takes the incoming power from a charge port and controls the charge placed on the battery optimizing the charge cycle.
DC/DC converter – This device steps down the higher-voltage DC power stored in the battery pack to the lower-voltage DC power that is required to recharge the auxiliary battery and power the vehicle’s on-board systems.
DC/AC Inverter – This crucial component converts the DC electricity stored in the battery to the AC needed to run the motor.
Thermal system – This regulates temperatures across the various systems in the vehicle, including the motor, power electronics and engine.
Electric Vehicle Power Converters and Inverters
Power converters and inverters play a key role in an electric vehicle, working in tandem to supply the vehicle’s separate systems with the correct type and level of power. The majority of electric and hybrid vehicles use two storage devices, with the main energy system providing power for long-distance driving and the secondary system providing acceleration and regenerative braking.
How DC-DC Power Converters Work In Electric Vehicles
High-quality, efficient power converters are required for proper integration between the storage batteries and the traction drive. DC-DC converters are an integral component in an electric vehicle, chopping or boosting voltage levels in order to interface with the electric powertrain.
In order for DC-DC converters to be suitable for electric vehicle applications, components must be lightweight, reliable, be small in size and highly efficient. In order to function within the constraints of the automotive application, converters must also have low electromagnetic interference.
Two types of DC-DC power converters are typically used in electric vehicles: unidirectional DC-DC converters and bidirectional DC-DC converters. Unidirectional converters are used to assist onboard loads such as entertainment, utility, controls and safety systems. Meanwhile, bidirectional DC-DC converters are used for battery charging, backup power and regenerative braking applications.
Bidirectional power converters are required in electric cars in order to connect the battery to the DC link of the motor drive system. Electric vehicles typically function in three modes: acceleration mode, normal mode and regenerative mode.
During normal and acceleration modes, power is drawn from the battery to the motor, whereas regenerative modes require the kinetic energy from the motor to be converted into electrical energy and returned back to the battery.
How DC-AC Power Inverters Work In Electric Vehicles
Power inverters are required in electric vehicles in order to convert the high-current DC electricity into AC electricity that can be used for the motor. Inverters are electronic devices that make use of power transistors in order to slice DC signals into an AC output.
In simple terms, these power transistors switch on and off rapidly to change a DC output into a sine wave or pulse width modulated (PWM) shape. Additional filtering helps to further smooth the signal out until it comprises a purse sinusoidal AC output which can be used by an electric vehicle’s traction motor.
Do you need a special charger for electric cars?
You don’t need a special charger for an electric car. Plug-in electric cars can be charged using a standard 120-volt wall socket, this is referred to as Level 1 charging. Whilst this is easy to achieve, it takes a long time and will not be sufficient to charge a fully electric vehicle that is used on a daily basis.
Electric car owners also have the option of installing a 220V ‘Level 2 charging’ station at their homes that can charge at a quicker pace.
How many amps does an electric car need?
The majority of electric vehicles take approximately 32 amps, charging at a rate of 25 miles of range per hour (depending on the vehicle and driving conditions). However, 50-amp chargers are also available that add 37 miles of range per hour. The amount of amps your home has available for charging will dictate what charging station you’ll be able to install in your home.
How many watts does it take to power an electric car?
Electric cars have batteries with a capacity of between 24 to 100 kWh. A 24 kWh battery holds enough energy to supply 24,000 Watts for an hour. Taking energy costs at $0.15 per kWh, it would cost $3.60 to fill an empty 24 kWh battery which could give you a range of approximately 72 miles, depending on the vehicle and driving conditions.
