PSEOCH05

The PSEOCH05 series of AC/DC ITE power modules offers up to 5.04 watts of output power in a very compact 1.46” x 1.08” x 0.69” package. This series consists of single output models, each with a universal input range of 90~305VAC and I/O isolation of 4000VAC. Additionally, this series offers protection against short circuit, over voltage, and over power conditions and it meets IEC/EN 60335-1, UL/IEC/EN 62368-1, IEC/EN 60950, and IEC/EN 61558-2-16 safety approvals. The PSEOCH05 series is also EMC compliant without any additional external components.

• Universal Input Range of 90~305VAC or 127~430VDC • I/O Isolation 4000VAC • EMC Compliant without External Components • Short Circuit, Over Voltage, and Over Power Protection • Compact Size • Meets IEC/EN 60335-1, UL/IEC/EN 62368-1, IEC/EN 60950, and IEC/EN 61558-2-16 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSEOCH05-33S Input Voltage: 90~305 Output Voltage: 3.3 Output Current: 1515mA Output Power (W): 5 No. Outputs: S Case: PCB Mount Size: 1.46" x 1.08" x 0.69" Get a Quote
PSEOCH05-05S Input Voltage: 90~305 Output Voltage: 5 Output Current: 1000mA Output Power (W): 5 No. Outputs: S Case: PCB Mount Size: 1.46" x 1.08" x 0.69" Get a Quote
PSEOCH05-12S Input Voltage: 90~305 Output Voltage: 12 Output Current: 420mA Output Power (W): 5.04 No. Outputs: S Case: PCB Mount Size: 1.46" x 1.08" x 0.69" Get a Quote
PSEOCH05-24S Input Voltage: 90~305 Output Voltage: 24 Output Current: 210mA Output Power (W): 5.04 No. Outputs: S Case: PCB Mount Size: 1.46" x 1.08" x 0.69" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~305
Input Frequency: 47 to 440Hz
Output
Output Voltage: 3.3, 5, 12, 24
Voltage Accuracy: ±2%
Output Current: 210mA, 420mA, 1000mA, 1515mA
Output Power (Watts): 5, 5.04
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Zener Diode Clamp
General
Efficiency: Up to 83%
Isolation: Input-Output: 4000VAC
Environmental
Operating Temperature: -40 to 70°C
Storage Temperature: -40 to 70°C
Physical
Weight: 0.85oz (24g)

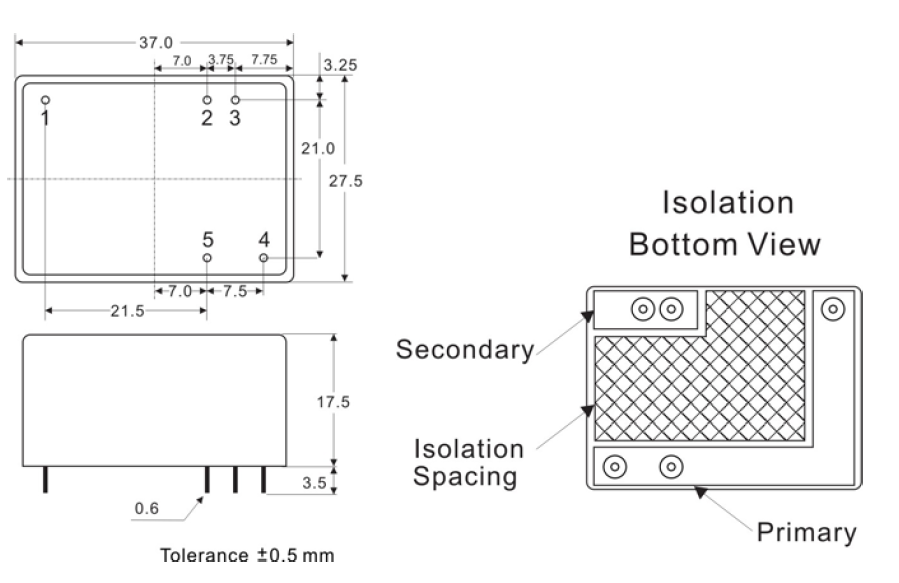

Dimensions: 1.46in x 1.08in x 0.69in (37mm x 27.5mm x 17.5mm)
Case Material: Plastic Resin (Flammability to UL 94V-0)
Notes & safety
Notes: 1. Ripple & Noise are measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor.
2. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: IEC/EN 60335-1, UL/IEC/EN 62368-1, IEC/EN 60950, and IEC/EN 61558-2-16
