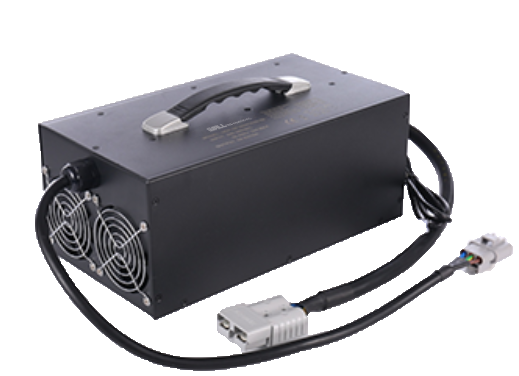

PSEV3600

The PSEV3600 series of AC/DC battery chargers offers up to 3600 watts of output power in a 12.4” x 7.08” x 5.12” package. This series features high efficiency, -20°C ~ 45°C operating temperature, and protection against short circuit, thermal, reverse connection, and battery broken conditions. This series also has UL, CE, FCC, and RoHS certifications and is ideal for electric vehicle applications.

• AC Input Voltage of 220VAC • High Efficiency • -20°C ~ 45°C Operating Temperature • Short Circuit, Thermal, Reverse Connection, and Battery Broken Protection • RoHS Compliant • UL, CE, and FCC Certifications
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSEV3600-24S1 Input Voltage: 220 Output Voltage: 29.2 Output Current: 120A Output Power (W): 3600 No. Outputs: S Case: Bulkhead Mount Size: 12.4" x 7.08" x 5.12" Get a Quote
PSEV3600-36S1 Input Voltage: 220 Output Voltage: 42 Output Current: 100A Output Power (W): 3600 No. Outputs: S Case: Bulkhead Mount Size: 12.4" x 7.08" x 5.12" Get a Quote
PSEV3600-48S1 Input Voltage: 220 Output Voltage: 54.6 Output Current: 70A Output Power (W): 3600 No. Outputs: S Case: Bulkhead Mount Size: 12.4" x 7.08" x 5.12" Get a Quote
PSEV3600-60S1 Input Voltage: 220 Output Voltage: 71.4 Output Current: 60A Output Power (W): 3600 No. Outputs: S Case: Bulkhead Mount Size: 12.4" x 7.08" x 5.12" Get a Quote
PSEV3600-72S1 Input Voltage: 220 Output Voltage: 84V Output Current: 50A Output Power (W): 3600 No. Outputs: S Case: Bulkhead Mount Size: 12.4" x 7.08" x 5.12" Get a Quote
PSEV3600-24S2 Input Voltage: 220 Output Voltage: 29.4 Output Current: 120A Output Power (W): 3600 No. Outputs: S Case: Bulkhead Mount Size: 12.4" x 7.08" x 5.12" Get a Quote
PSEV3600-36S2 Input Voltage: 220 Output Voltage: 36 Output Current: 44.1 Output Power (W): 3600 No. Outputs: S Case: Bulkhead Mount Size: 12.4" x 7.08" x 5.12" Get a Quote
PSEV3600-48S2 Input Voltage: 220 Output Voltage: 58.8 Output Current: 70A Output Power (W): 3600 No. Outputs: S Case: Bulkhead Mount Size: 12.4" x 7.08" x 5.12" Get a Quote
PSEV3600-60S2 Input Voltage: 220 Output Voltage: 73.5 Output Current: 60A Output Power (W): 3600 No. Outputs: S Case: Bulkhead Mount Size: 12.4" x 7.08" x 5.12" Get a Quote
PSEV3600-72S2 Input Voltage: 220 Output Voltage: 88.2 Output Current: 50A Output Power (W): 3600 No. Outputs: S Case: Bulkhead Mount Size: 12.4" x 7.08" x 5.12" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 220
Input Voltage Range: 220
PFC: ≥0.98
Input Frequency: 47 - 65Hz
Output
Output Voltage: 29.2, 42, 54.6, 71.4, 84, 29.4, 44.1, 58.8, 73.5, 88.2
Output Current: 50A, 60A, 70A, 100A, 120A
Output Power (Watts): 3600
Short Circuit Protection: Yes
Thermal Protection: Yes
General
Efficiency: ≥90%
Environmental
Operating Temperature: -20 to 45°C
Storage Temperature: -40 to 85°C
Physical
Weight: 19.84lbs (9kg)

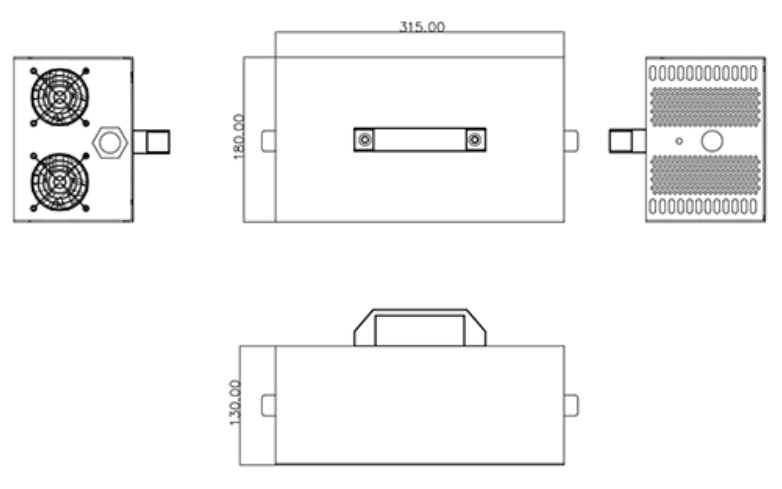

Dimensions: 12.4 x 7.08 x 5.12in (315 x 180 x 130mm)
Notes & safety
Notes: 1. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL, CE, FCC
RoHS Compliance: Yes
