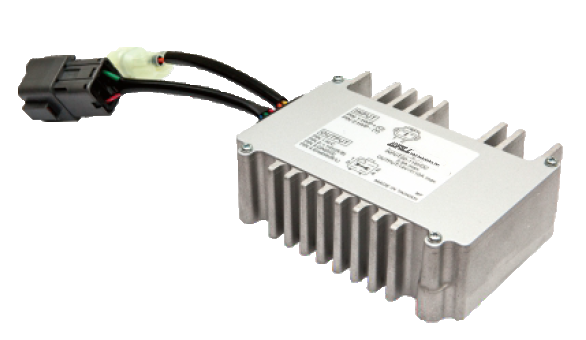

DCVK168

The DCVK168 series of DC/DC converters offers 168 watts of output power in a 4.76” x 3.79” x 1.44” package. This series has a wide operating voltage of 60-118VDC as well as constant current of 12V and constant voltage of 14V. This series also offers protection class II and RoHS2 compliance. With its IP67 waterproof rating, built in ORing diode, high efficiency, and high wattage the DCVK168 is ideal for EV and outdoor applications.

• Wide Operating Voltage Range of 60-118VDC • C.C. Mode & C.V. Mode • Constant Current: 12V • Constant Voltage: 14V • Built-In ORing Diode • All Units Pass Burn-In Test at Full Load • Output Short Circuit, Over Voltage, Over Load, and Over Temperature Protection • Output Reverse Polarity Protection • RoHS2 Complaint • IP67 Waterproof Rating • Protection Class II
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DCVK168-14S Input Voltage: 70/110 Output Voltage: 14 Output Current: 12A Output Power (W): 168 No. Outputs: S Case: Bulkhead Mount Size: 4.76" x 3.79" x 1.44" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 70/110
Input Voltage Range: 60~118
Output
Output Voltage: 14
Output Current: 12A
Output Power (Watts): 168
Short Circuit Protection: Latch
Over Voltage Protection: Yes
Thermal Protection: Yes
General
Efficiency: 88%
Environmental
Operating Temperature: -20 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 1.68lbs (0.76kg)
Dimensions: 4.76in x 3.79in x 1.44in (120.9mm x 96.2mm x 36.5mm)
Notes & safety
Notes: 1. It is normal for a small amount of water to run in, but product can still operate normally.
2. Output can provide up to peak load when the power supply starts up. Continually staying in ore than the rated load is not allowed.
3. At factory, in 60% rated load conditions, each output is checked to be within voltage accuracy.
4. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
6. Load regulation is defined by changing ±40% of measured output load from 60% rated load.
7. The ripple is measured from peak to peak with a bandwidth-limit of 20MHz (measured at output connector with a 0.1uF ceramic capacitor and a 47uF electrolytic capacitor).
8. Efficiency is measured at rated load and nominal line.
*Due to advances in technology, specifications subject to change without notice.
RoHS Compliance: RoHS2
