PSRL0402M
The PSRL0402M series of Medical AC DC power supplies offers up to 400 Watts of output power with airflow. This series consists of single output models with active PFC and a 90~264VAC input voltage range. These supplies also have short circuit, input voltage, over voltage, over power, and over temperature protection. Models are available in U-chassis (Type U) and enclosed with built-in fan (Type E) designs. This series has UL60601-1, EN60601-1,and IEC60601-1 (3rd edition) medical approvals. Optional N+1 forced active current sharing (suffix “I”) is also available. For dual output models see the PSRL0402DM series and for ITE version see the PSRL0402 and PSRL0402D series.
• Single Outputs
• RoHS Compliant
• High Quality & Reliable Component Usage
• Variable Fan Speed & Low Acoustical Noise
• 90~264VAC Input Voltage Range
• Optional N+1 Forced Active Current Sharing
• Providing Peak Power 700W within 500µs Duty Duration
• MTBF: 100,000 Hours (MIL-HDBK-217F)
• Active Power Factor Corrected to EN61000-3-2 Class D
• Current Monitoring and Remote Voltage Adjustment (Margin)
• U-Chassis and Enclosed with Built-in Fan Mechanical Options
• Short Circuit, Input Circuit, Over Power, Input Voltage, Over Voltage, and Over Temperature Protection
• UL60601-1, EN60601-1, IEC60601-1 (3rd Edition) Medical Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSRL0402ME-03I | Input Voltage: 90~264 | Output Voltage: 3.3 | Output Current: 60 A | Output Power (W): 198 | No. Outputs: S | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402MU-03I | Input Voltage: 90~264 | Output Voltage: 3.3 | Output Current: 60 A | Output Power (W): 198 | No. Outputs: S | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| PSRL0402ME-03 | Input Voltage: 90~264 | Output Voltage: 3.3 | Output Current: 60 A | Output Power (W): 198 | No. Outputs: S | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402MU-03 | Input Voltage: 90~264 | Output Voltage: 3.3 | Output Current: 60 A | Output Power (W): 198 | No. Outputs: S | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| PSRL0402ME-05I | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 60 A | Output Power (W): 300 | No. Outputs: S | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402MU-05I | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 60 A | Output Power (W): 300 | No. Outputs: S | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| PSRL0402ME-05 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 60 A | Output Power (W): 300 | No. Outputs: S | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402MU-05 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 60 A | Output Power (W): 300 | No. Outputs: S | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| PSRL0402ME-12I | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 33.34 A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402ME-18I | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 25 A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402ME-24I | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 18.19 A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402ME-36I | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 12.9 A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402ME-48I | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 9.53 A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402MU-12I | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 33.34 A | Output Power (W): 400 | No. Outputs: S | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| PSRL0402MU-18I | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 25 A | Output Power (W): 400 | No. Outputs: S | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| PSRL0402MU-24I | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 18.19 A | Output Power (W): 400 | No. Outputs: S | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| PSRL0402MU-36I | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 12.9 A | Output Power (W): 400 | No. Outputs: S | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| PSRL0402MU-48I | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 8.33A | Output Power (W): 400 | No. Outputs: S | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| PSRL0402ME-12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 33.34 A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402ME-18 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 25 A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402ME-24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 18.19 A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402ME-36 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 12.9 A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402ME-48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 9.53 A | Output Power (W): 400 | No. Outputs: S | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402MU-12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 33.34 A | Output Power (W): 400 | No. Outputs: S | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| PSRL0402MU-18 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 25 A | Output Power (W): 400 | No. Outputs: S | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| PSRL0402MU-24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 18.19 A | Output Power (W): 400 | No. Outputs: S | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| PSRL0402MU-36 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 12.9 A | Output Power (W): 400 | No. Outputs: S | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| PSRL0402MU-48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 9.53 A | Output Power (W): 400 | No. Outputs: S | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Remote ON/OFF: | Yes |
| PFC: | 0.98 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 18, 24, 36, 48 |
| Output Current: | 8.33A, 11.11A, 16.67A, 22.2A, 33.33A, 60A |
| Output Power (Watts): | 198, 300, 400 |
| Output Trim/Adjustability: | ±5% |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | Yes |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | 70~80% |
| Isolation: | 4000VAC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | U Type Models: 2.87 lbs (1.3kg) E Type Models: 3.53 lbs (1.6kg) |

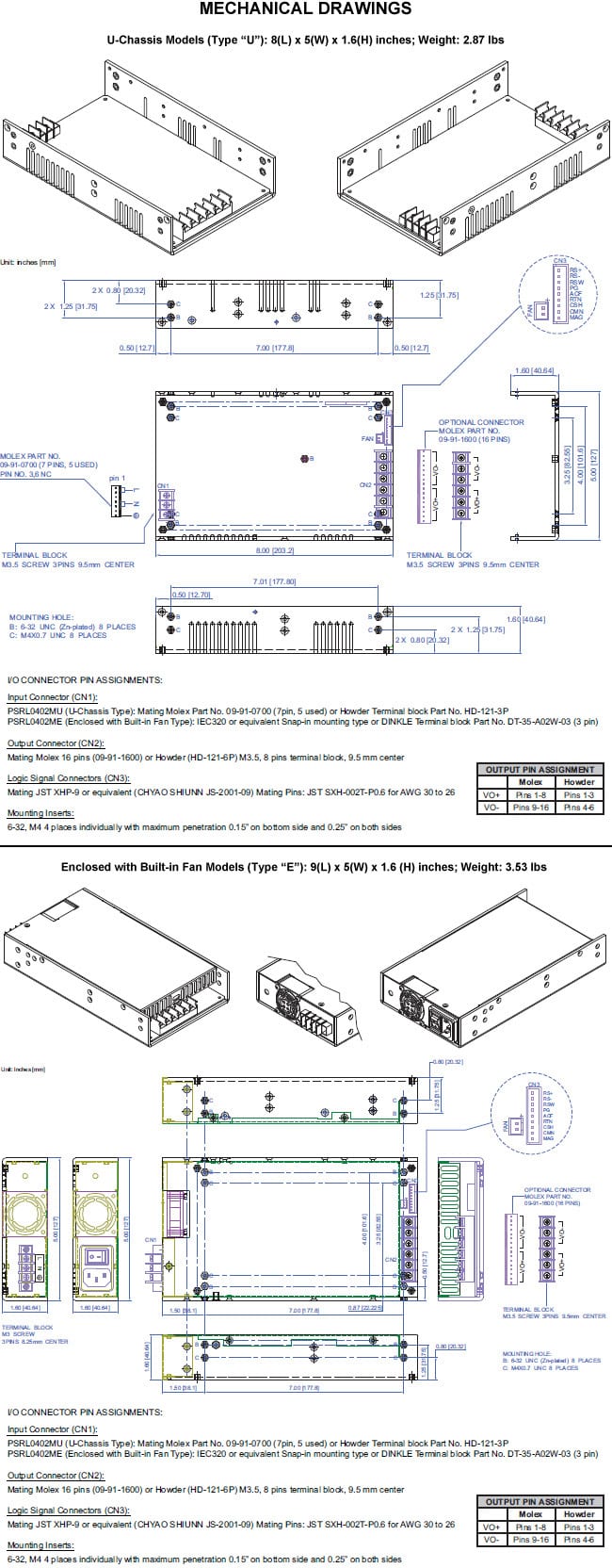

| Dimensions: | U Type Models: 8" x 5" x 1.6" (203.2 x 127 x 40.64 mm) E Type Models: 9" x 5" x 1.6" (228.6 x 127 x 40.64 mm) |
| Notes & safety | |
| Notes: | 1. The “I” suffix denotes forced current sharing option (OR-ring diode). See page 6 for installation guide. Optional top cover (Type “C”) is also available for U-Chassis Models. Please call factory for more details. 2. PSRL0402MU Models (U-Chassis): 400W max. with 23CFM forced airflow or 250W max with convection cooling. PSRL0402ME Models (Enclosed with built-in fan): 400W max with built-in fan airflow. 3. Provides peak power to 700W within 500µs for all models; for longer duty duration must contact manufacturer. 4. All output ranges are covered in agency certifications and the preset voltage will be set as standard models if nothing different is requested. If desired preset output does not appear, please contact factory. 5. 1% minimum load is required to maintain the ripple and regulation specifications. 6. Output is fully isolated. 7. For dual output models see the PSRL0402MD series. 8. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60601-1, EN60601-1, IEC60601-1 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60601-1 |
