PSRL0402

The PSRL0402 series of AC DC power supplies offers up to 400 Watts of output power with airflow. This series consists of single output models with active PFC and a 90~264VAC input voltage range. These supplies also have short circuit, input voltage, over voltage, over power, and over temperature protection. Models are available in U-chassis (Type U) and enclosed with built-in fan (Type E) designs. This series has UL60950-1, EN60950-1,and IEC60950-1 safety approvals. Optional N+1 forced active current sharing (suffix “I”) is also available. For dual output models see the PSRL0402D series and for medical version see thePSRL0402M and PSRL0402DM series.

• Single Outputs • RoHS Compliant • High Quality & Reliable Component Usage • Variable Fan Speed & Low Acoustical Noise • 90~264VAC Input Voltage Range • Optional N+1 Forced Active Current Sharing • MTBF: 100,000 Hours (MIL-HDBK-217F) • Providing Peak Power 700W within 500µs Duty Duration • Active Power Factor Corrected to EN61000-3-2 Class D • Current Monitoring and Remote Voltage Adjustment (Margin) • U-Chassis and Enclosed with Built-in Fan Mechanical Options • Short Circuit, Input Circuit, Over Power, Input Voltage, Over Voltage, and Over Temperature Protection • UL60950-1, EN60950-1, IEC60950-1 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSRL0402E-03 Input Voltage: 90~264 Output Voltage: 3.3 Output Current: 60 A Output Power (W): 198 No. Outputs: S Case: Enclosed with Fan Size: 9" x 5" x 1.6" Get a Quote
PSRL0402E-03I Input Voltage: 90~264 Output Voltage: 3.3 Output Current: 60 A Output Power (W): 198 No. Outputs: S Case: Enclosed with Fan Size: 9" x 5" x 1.6" Get a Quote
PSRL0402U-03I Input Voltage: 90~264 Output Voltage: 3.3 Output Current: 60 A Output Power (W): 198 No. Outputs: S Case: U-Chassis Size: 8" x 5" x 1.6" Get a Quote
PSRL0402U-03 Input Voltage: 90~264 Output Voltage: 3.3 Output Current: 60 A Output Power (W): 198 No. Outputs: S Case: U-Chassis Size: 8" x 5" x 1.6" Get a Quote
PSRL0402E-05 Input Voltage: 90~264 Output Voltage: 5 Output Current: 60 A Output Power (W): 300 No. Outputs: S Case: Enclosed with Fan Size: 9" x 5" x 1.6" Get a Quote
PSRL0402E-05I Input Voltage: 90~264 Output Voltage: 5 Output Current: 60 A Output Power (W): 300 No. Outputs: S Case: Enclosed with Fan Size: 9" x 5" x 1.6" Get a Quote
PSRL0402U-05I Input Voltage: 90~264 Output Voltage: 5 Output Current: 60 A Output Power (W): 300 No. Outputs: S Case: U-Chassis Size: 8" x 5" x 1.6" Get a Quote
PSRL0402U-05 Input Voltage: 90~264 Output Voltage: 5 Output Current: 60 A Output Power (W): 300 No. Outputs: S Case: U-Chassis Size: 8" x 5" x 1.6" Get a Quote
PSRL0402E-12 Input Voltage: 90~264 Output Voltage: 12 Output Current: 33.34 A Output Power (W): 400 No. Outputs: S Case: Enclosed with Fan Size: 9" x 5" x 1.6" Get a Quote
PSRL0402E-12I Input Voltage: 90~264 Output Voltage: 12 Output Current: 33.34 A Output Power (W): 400 No. Outputs: S Case: Enclosed with Fan Size: 9" x 5" x 1.6" Get a Quote
PSRL0402E-18 Input Voltage: 90~264 Output Voltage: 18 Output Current: 25 A Output Power (W): 400 No. Outputs: S Case: Enclosed with Fan Size: 9" x 5" x 1.6" Get a Quote
PSRL0402E-18I Input Voltage: 90~264 Output Voltage: 18 Output Current: 25 A Output Power (W): 400 No. Outputs: S Case: Enclosed with Fan Size: 9" x 5" x 1.6" Get a Quote
PSRL0402E-24 Input Voltage: 90~264 Output Voltage: 24 Output Current: 18.19 A Output Power (W): 400 No. Outputs: S Case: Enclosed with Fan Size: 9" x 5" x 1.6" Get a Quote
PSRL0402E-24I Input Voltage: 90~264 Output Voltage: 24 Output Current: 18.19 A Output Power (W): 400 No. Outputs: S Case: Enclosed with Fan Size: 9" x 5" x 1.6" Get a Quote
PSRL0402E-36 Input Voltage: 90~264 Output Voltage: 36 Output Current: 12.9 A Output Power (W): 400 No. Outputs: S Case: Enclosed with Fan Size: 9" x 5" x 1.6" Get a Quote
PSRL0402E-36I Input Voltage: 90~264 Output Voltage: 36 Output Current: 12.9 A Output Power (W): 400 No. Outputs: S Case: Enclosed with Fan Size: 9" x 5" x 1.6" Get a Quote
PSRL0402E-48 Input Voltage: 90~264 Output Voltage: 48 Output Current: 9.53 A Output Power (W): 400 No. Outputs: S Case: Enclosed with Fan Size: 9" x 5" x 1.6" Get a Quote
PSRL0402E-48I Input Voltage: 90~264 Output Voltage: 48 Output Current: 9.53 A Output Power (W): 400 No. Outputs: S Case: Enclosed with Fan Size: 9" x 5" x 1.6" Get a Quote
PSRL0402U-12I Input Voltage: 90~264 Output Voltage: 12 Output Current: 33.34 A Output Power (W): 400 No. Outputs: S Case: U-Chassis Size: 8" x 5" x 1.6" Get a Quote
PSRL0402U-18I Input Voltage: 90~264 Output Voltage: 18 Output Current: 25 A Output Power (W): 400 No. Outputs: S Case: U-Chassis Size: 8" x 5" x 1.6" Get a Quote
PSRL0402U-24I Input Voltage: 90~264 Output Voltage: 24 Output Current: 18.19 A Output Power (W): 400 No. Outputs: S Case: U-Chassis Size: 8" x 5" x 1.6" Get a Quote
PSRL0402U-36I Input Voltage: 90~264 Output Voltage: 36 Output Current: 12.9 A Output Power (W): 400 No. Outputs: S Case: U-Chassis Size: 8" x 5" x 1.6" Get a Quote
PSRL0402U-48I Input Voltage: 90~264 Output Voltage: 48 Output Current: 9.53 A Output Power (W): 400 No. Outputs: S Case: U-Chassis Size: 8" x 5" x 1.6" Get a Quote
PSRL0402U-12 Input Voltage: 90~264 Output Voltage: 12 Output Current: 33.34 A Output Power (W): 400 No. Outputs: S Case: U-Chassis Size: 8" x 5" x 1.6" Get a Quote
PSRL0402U-18 Input Voltage: 90~264 Output Voltage: 18 Output Current: 25 A Output Power (W): 400 No. Outputs: S Case: U-Chassis Size: 8" x 5" x 1.6" Get a Quote
PSRL0402U-24 Input Voltage: 90~264 Output Voltage: 24 Output Current: 18.19 A Output Power (W): 400 No. Outputs: S Case: U-Chassis Size: 8" x 5" x 1.6" Get a Quote
PSRL0402U-36 Input Voltage: 90~264 Output Voltage: 36 Output Current: 12.9 A Output Power (W): 400 No. Outputs: S Case: U-Chassis Size: 8" x 5" x 1.6" Get a Quote
PSRL0402U-48 Input Voltage: 90~264 Output Voltage: 48 Output Current: 9.53 A Output Power (W): 400 No. Outputs: S Case: U-Chassis Size: 8" x 5" x 1.6" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Remote ON/OFF: Yes
PFC: 0.98
Input Frequency: 47-63 Hz
Output
Output Voltage: 3.3, 5, 12, 18, 24, 36, 48
Output Current: 60A, 33.33A, 22.22A, 16.67A, 11.11A, 8.33A
Output Power (Watts): 198, 300, 400
Output Trim/Adjustability: ±5%
Short Circuit Protection: Yes
Over Voltage Protection: Yes
Thermal Protection: Yes
General
Efficiency: 70~80%
Isolation: 4000VAC
Environmental
Operating Temperature: 0 to 70°C
Storage Temperature: -20 to 85°C
Physical
Weight: U Type: 2.87 lbs (1.3kg)
E Type: 3.53 lbs (1.6kg)

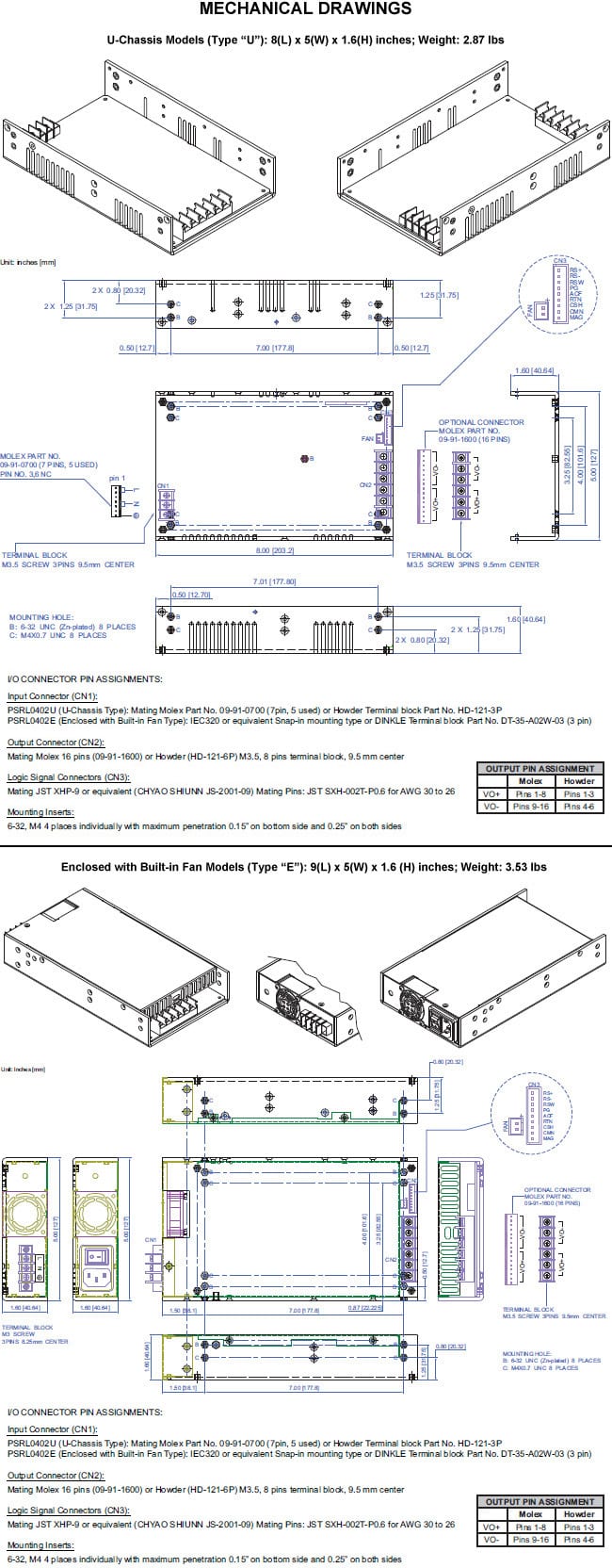

Dimensions: U Type: 8.00" x 5.00" x 1.60" (203.2 x 127 x 40.64 mm)
E Type: 9.00" x 5.00" x 1.60" (228.6 x 127 x 40.64 mm)
Notes & safety
Notes: 1. The “I” suffix denotes forced current sharing option (OR-ring diode). See page 6 for installation guide.
Optional top cover (Type “C”) is also available for U-Chassis Models. Please call factory for more details.
2. PSRL0402U Models (U-Chassis): 400W max. with 23CFM forced airflow or 250W max with convection cooling.
PSRL0402E Models (Enclosed with built-in fan): 400W max with built-in fan airflow.
3. Provides peak power to 700W within 500µs for all models; for longer duty duration must contact manufacturer.
4. All output ranges are covered in agency certifications and the preset voltage will be set as standard models if nothing different is requested. If desired preset output does not appear, please contact factory.
5. 1% minimum load is required to maintain the ripple and regulation specifications.
6. Output is fully isolated.
7. For dual output models see the PSRL0402D series.
8. This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1, EN60950-1, IEC60950-1
RoHS Compliance: Yes
TUV Efficiency Level: TUV EN60601-1, TUV/Bauart Gepruft
