Wall’s new DCHPW2000 series offers up to 2000 watts of power and efficiency up to 96%

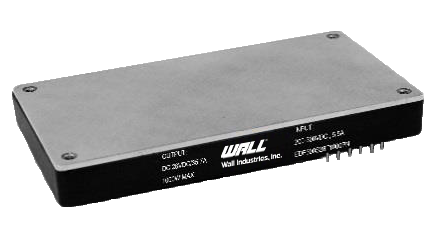

Wall Industries Inc. has released the DCHPW2000 series of full-brick DC/DC power converters. This series offers 2000 watts of output power in a 4.6″ x 2.4” x 0.55″ enclosed package. Single output models are available from 24-72VDC output with an input of either 180~450VDC or 380~850VDC.
The DCHPW2000 series is protected against over current, over voltage, over temperature and short circuit conditions, is RoHS5 compliant, and has UL/IEC/EN60950/GB4943 safety approvals. It features ultra-high efficiency up to 96%, making it suitable for industrial, telecom, and defense applications. Full series details can be found on DCHPW2000 series page.
DCHPW2000 Series Details
|
Model Number |
Input Voltage Range | Output Voltage | Output Current |
Output Power |
|
DCHPW2000-270S24 |
180-425VDC | 24VDC | 83.33 A | 2000W |
|
DCHPW2000-270S28 |
28VDC |
71.42 A |
||
|
DCHPW2000-270S36 |
36VDC |
55.55 A |
||
|
DCHPW2000-270S48 |
48VDC | 41.67 A | ||
| DCHPW2000-270S60 | 60VDC |
33.33 A |
||
|
DCHPW2000-540S24 |
380-850VDC | 24VDC |
83.33 A |
2000W |
|
DCHPW2000-540S28 |
28VDC |
71.42 A |
||
|
DCHPW2000-540S36 |
36VDC |
55.55 A |
||
|
DCHPW2000-540S48 |
48VDC |
41.67 A |
||
|
DCHPW2000-540S60 |
60VDC |
33.33 A |
||
|
DCHPW2000-540S72 |
72VDC |
27.78 A |
To get in touch with the Wall team about the new DCHPW2000 series, you can contact us here.
