PSRL0402DM
The PSRL0402DM series of Medical AC DC power supplies offers up to 400 Watts of output power with airflow. This series consists of dual output models with active PFC and a 90~264VAC input voltage range. These supplies also have short circuit, input voltage, over voltage, over power, and over temperature protection. Models are available in U-chassis (Type U) and enclosed with built-in fan (Type E) designs. This series has UL60601-1, EN60601-1,and IEC60601-1 (3rd edition) medical approvals. For single output models see the PSRL0402M series and for ITE version see the PSRL0402 andPSRL0402D series.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSRL0402DME-0324 | Input Voltage: 90~264 | Output Voltage: 3.3, 24 | Output Current: 40A, 12.5A | Output Power (W): 300 | No. Outputs: D | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402DME-0512 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 40A, 25A | Output Power (W): 300 | No. Outputs: D | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402DME-0524 | Input Voltage: 90~264 | Output Voltage: 5, 54 | Output Current: 40A, 12.5A | Output Power (W): 300 | No. Outputs: D | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402DME-0312 | Input Voltage: 90~264 | Output Voltage: 3.3, 12 | Output Current: 40A, 25A | Output Power (W): 300 | No. Outputs: D | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402DMU-0312 | Input Voltage: 90~264 | Output Voltage: 3.3, 12 | Output Current: 40A, 25A | Output Power (W): 300 | No. Outputs: D | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| PSRL0402DMU-0324 | Input Voltage: 90~264 | Output Voltage: 3.3, 24 | Output Current: 40A, 12.5A | Output Power (W): 300 | No. Outputs: D | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| PSRL0402DMU-0512 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 40A, 25A | Output Power (W): 300 | No. Outputs: D | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| PSRL0402DMU-0524 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 40A, 12.5A | Output Power (W): 300 | No. Outputs: D | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| PSRL0402DME-1224 | Input Voltage: 90~264 | Output Voltage: 12, 24 | Output Current: 25A, 12.5A | Output Power (W): 400 | No. Outputs: D | Case: Enclosed with Fan | Size: 9" x 5" x 1.6" | Get a Quote |
| PSRL0402DMU-1224 | Input Voltage: 90~264 | Output Voltage: 12, 24 | Output Current: 25A, 12.5A | Output Power (W): 400 | No. Outputs: D | Case: U-Chassis | Size: 8" x 5" x 1.6" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Remote ON/OFF: | Yes |
| PFC: | 0.98 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 24 |
| Output Current: | 37.5A, 52.5A, 65A |
| Output Power (Watts): | 300, 400 |
| Output Trim/Adjustability: | ±5% |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | Yes |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | 75~85% |
| Isolation: | 4000VAC for 3 seconds (primary to secondary) |
| Environmental | |

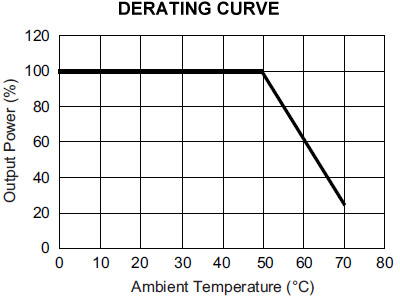

| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | U Type Models: 2.87 lbs (1.3kg) E Type Models: 3.53 lbs (1.6kg) |

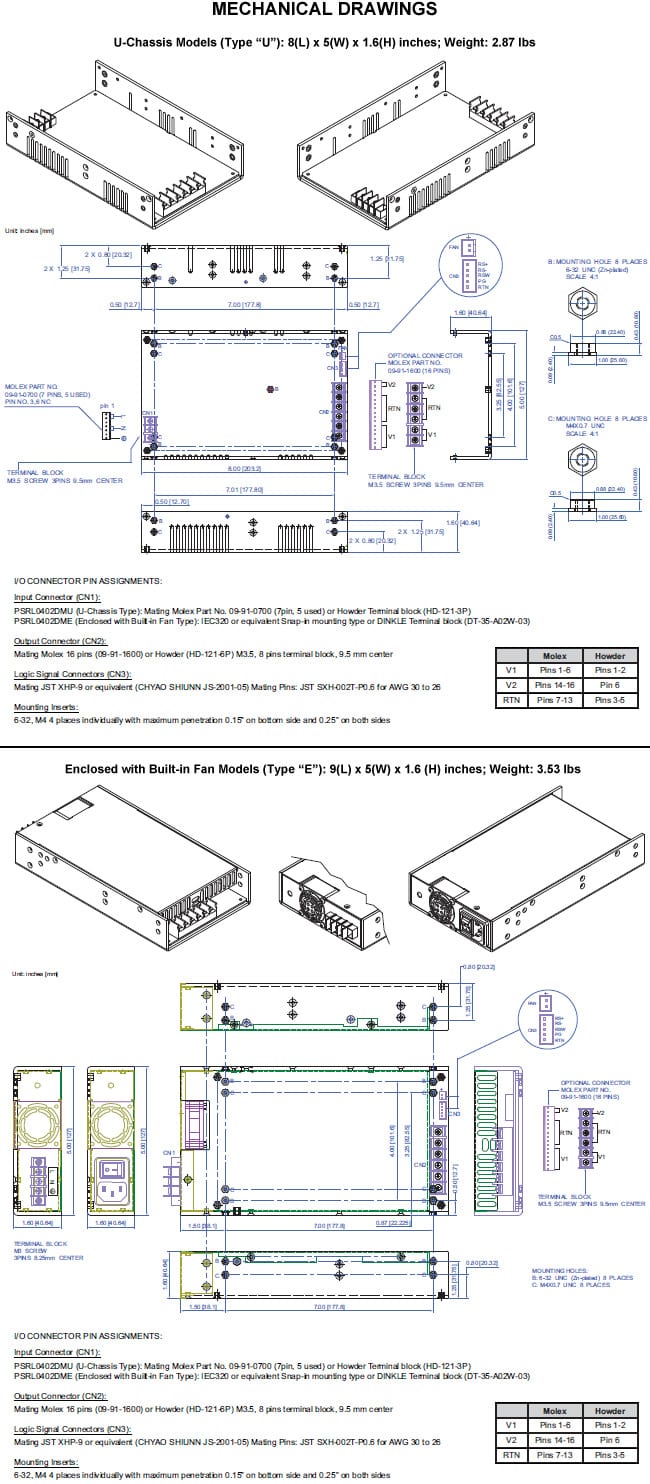

| Dimensions: | U Type Models: 8" x 5" x 1.6" (203.2 x 127 x 40.64 mm) E Type Models: 9" x 5" x 1.6" (228.6 x 127 x 40.64 mm) |
| Notes & safety | |
| Notes: | 1. Optional top cover (Type “C”) is also available for U-Chassis Models. Please call factory for more details. 2. 10% minimum load is required to maintain the ripple and regulation specifications. 3. For single output models see the PSRL0402M series. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60601-1, EN60601-1, IEC60601-1 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60601-1 |
