The new DCMLC06 series of compact DC/DC converters offers two pin connection options and high isolation voltage

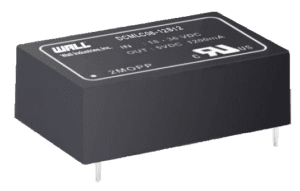

Wall Industries Inc. has introduced the new DCMLC06 series of medical and industrial grade DC/DC through hole converters. This series offers 6 watts of power in a 0.80in x 1.25in x 0.42in through hole package with two pin connection options available. It consists of both single and dual output models with a 2:1 input range of 9~18, 18~36 or 36~75.
Features of the DCMLC06 series include low leakage current, low standby power, no minimum load requirement, and a wide isolation voltage of 5000VAC. It has short circuit, over voltage, and over load protection as well as an internal EN5503 Class A Filter. This series also meets IEC/EN/ANSI/AAMI ES 60601-1 and IEC/EN/UL 62368-1 safety approvals. For full details see the DCMLC06 series page.
| Model Number | Input | Output Voltage | Output Current | Efficiency | Output Power |
| DCMLC06-12S05A | 12VDC (9~18VDC) | 5VDC | 1200mA | 84% | 6 Watts |
| DCMLC06-12S12A | 12VDC | 500mA | 87% | ||
| DCMLC06-12S15A | 15VDC | 400mA | 86% | ||
| DCMLC06-24S05A | 24VDC (18~36VDC) | 5VDC | 1200mA | 84% | 6 Watts |
| DCMLC06-24S12A | 12VDC | 500mA | 87% | ||
| DCMLC06-24S15A | 15VDC | 400mA | 87% | ||
| DCMLC06-48S05A | 48VDC (36~75VDC) | 5VDC | 1200mA | 84% | 6 Watts |
| DCMLC06-48S12A | 12VDC | 500mA | 87% | ||
| DCMLC06-48S15A | 15VDC | 400mA | 86% |
| Model Number | Input | Output Voltage | Output Current | Efficiency | Output Power |
| DCMLC06-12D05A | 12VDC (9~18VDC) | ±5VDC | ±600mA | 83% | 6 Watts |
| DCMLC06-12D12A | ±12VDC | ±250mA | 87% | ||
| DCMLC06-12D15A | ±15VDC | ±200mA | 86% | ||
| DCMLC06-24D05A | 24VDC (18~36VDC) | ±5VDC | ±600mA | 84% | 6 Watts |
| DCMLC06-24D12A | ±12VDC | ±250mA | 86% | ||
| DCMLC06-24D15A | ±15VDC | ±200mA | 86% | ||
| DCMLC06-48D05A | 48VDC (36~75VDC) | ±5VDC | ±600mA | 83% | 6 Watts |
| DCMLC06-48D12A | ±12VDC | ±250mA | 87% | ||
| DCMLC06-48D15A | ±15VDC | ±200mA | 85% |
To get in touch with the Wall team about the new DCMLC06 series, you can contact us here.
