DCMLC06

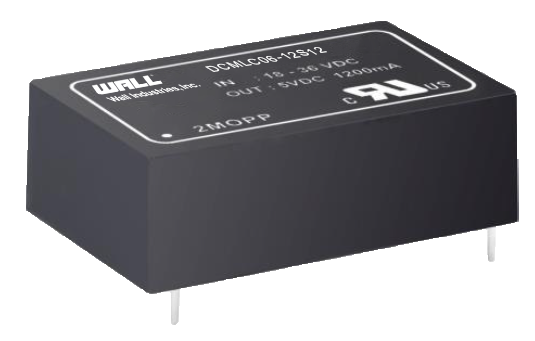

The DCMLC06 series of DC/DC converters offers 6 watts of output power in a compact 0.80” x 1.25” x 0.42” package with two pin connection options. This series consists of single and dual output models with a 2:1 input voltage range. Each model in this series features low standby power, low leakage current, no minimum load requirement, and 5000VAC reinforced insulation. This series also has over voltage, over load, and short circuit protection as well IEC/EN/ANSI/AAMI ES 60601-1 and IEC/EN/UL 62368-1 safety approvals.
• 2:1 Input Voltage Range
• 5000VAC Reinforced Insulation
• No Minimum Load Requirement
• Low Standby Power
• Low Leakage Current
• 2xMOPP
• RoHS & REACH Compliant
• Two Pin Connection Options
• Over Voltage, Over Load, and Short Circuit Protection
• Internal EN55032 Class A Filter
• IEC/EN/ANSI/AAMI ES 60601-1 and IEC/EN/UL 62368-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMLC06-12S05A | Input Voltage: 12 | Output Voltage: 5 | Output Current: 1200mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| DCMLC06-12S12A | Input Voltage: 12 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| DCMLC06-12S15A | Input Voltage: 12 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| DCMLC06-24S05A | Input Voltage: 24 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| DCMLC06-24S12A | Input Voltage: 24 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| DCMLC06-24S15A | Input Voltage: 24 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| DCMLC06-48S05A | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1200mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| DCMLC06-48S12A | Input Voltage: 48 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| DCMLC06-48S15A | Input Voltage: 48 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| DCMLC06-12D05A | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±600mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| DCMLC06-12D12A | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| DCMLC06-12D15A | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| DCMLC06-24D05A | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±600mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| DCMLC06-24D12A | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| DCMLC06-24D15A | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| DCMLC06-48D05A | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±600mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| DCMLC06-48D12A | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±250mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| DCMLC06-48D15A | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±200mA | Output Power (W): 6 | No. Outputs: D | Case: Through Hole | Size: 0.8" x 1.25" x 0.42" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 9~18, 18~36, 36~75 |
| Input Filter: | Pi Type |
| Output | |
| Output Voltage: | 5, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 400mA, 500mA, 1200mA, ±200mA, ±250mA, ±600mA |
| Output Power (Watts): | 6 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | See Data Sheet |
| General | |
| Efficiency: | Up to 87% |
| Isolation: | 5000VAC |
| Environmental | |
| Operating Temperature: | -40 to +105°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.47oz (13.5g) |
| Dimensions: | 0.80in x 1.25in x 0.42in (20.3mm x 31.8mm x 10.6mm) |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |

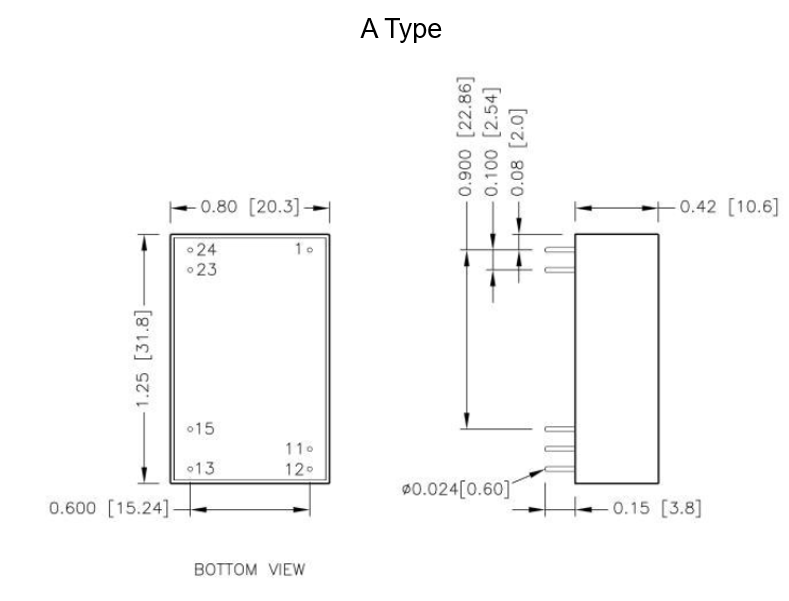

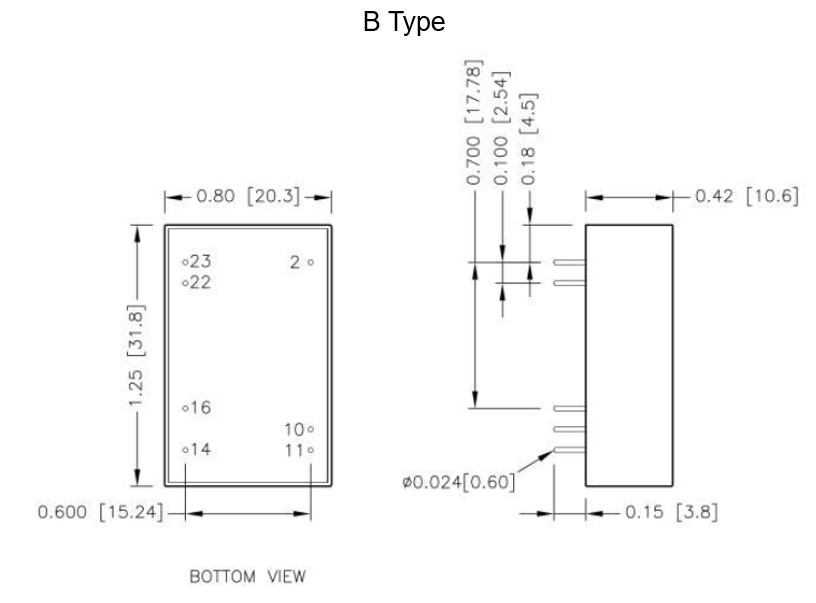

| Notes: | 1. “A” in model number indicates standard pin connection. Substitute the “A” in model number with “B” to indicate B type pin connection. Ex: DCMLC06-24S12B 2. This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must always be used. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN/ANSI/AAMI ES 60601-1, IEC/EN/UL 62368-1 |
| RoHS Compliance: | Yes |
