DCSDW02
The DCSDW02 series of DC/DC converters offers up to 2.01 watts of output power in a compact DIP or SMD package. This series consists of single and dual outputs with ultra wide 4:1 input voltage range. Each model in this series has high efficiency, no minimum required load, short circuit protection, and is CE marked and compliant to RoHS II & REACH. This series has 1600VDC input to output isolation and UL60950-1, EN60950-1, and IEC60950-1 safety approvals. Please call factory for order details.
• 4:1 Ultra Wide Input Range
• Single and Dual Outputs
• Ultra Small Package
• SMD and DIP Packages Available
• SMD Package Qualified for Lead Free Reflow Solder Process According to IPC J-STD-020D
• Short Circuit Protection
• Remote Control
• High Efficiency up to 84%
• No Minimum Load Required
• 1600VDC Input to Output Isolation and 3000VDC for Option
• CE Marked
• Compliant to RoHS II & REACH
• UL60950-1, EN60950-1, and IEC60950-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCSDW02-12S33 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 2.01 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2.01 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2.01 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2.01 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2.01 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-24S33 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 2.01 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2.01 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2.01 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2.01 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2.01 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-48S33 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 2.01 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2.01 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2.01 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2.01 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2.01 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-12D05 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2.01 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2.01 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-24D05 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2.01 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2.01 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2.01 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-48D05 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2.01 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2.01 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2.01 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-12S33S | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 2.01 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-12S05S | Input Voltage: 12 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2.01 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-12S12S | Input Voltage: 12 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2.01 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-12S15S | Input Voltage: 12 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2.01 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-12S24S | Input Voltage: 12 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2.01 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-24S33S | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 2.01 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-24S05S | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2.01 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-24S12S | Input Voltage: 24 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2.01 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-24S15S | Input Voltage: 24 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2.01 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-24S24S | Input Voltage: 24 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2.01 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-48S33S | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 2.01 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-48S05S | Input Voltage: 48 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2.01 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-48S12S | Input Voltage: 48 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2.01 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-48S15S | Input Voltage: 48 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2.01 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-48S24S | Input Voltage: 48 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2.01 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-12D05S | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2.01 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-12D12S | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2.01 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-12D15S | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2.01 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-24D05S | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2.01 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-24D12S | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2.01 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-24D15S | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2.01 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-48D05S | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2.01 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-48D12S | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2.01 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-48D15S | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2.01 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW02-12D12 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2.01 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 4.5-18, 9-36, 18-75 |
| Input Filter: | Capacitor Type |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 500mA, 400mA, 167mA, 134mA, 83mA, ±200mA, ±83mA, ±67mA |
| Output Power (Watts): | 2.01 |
| Short Circuit Protection: | Automatic Recovery |
| General | |
| Efficiency: | Up to 84% |
| Isolation: | Standard: 1600VDC "H" Suffix: 3000VDC |
| Environmental | |
| Operating Temperature: | Without Derating: -40 to 80ºC With Derating: 80 to 105ºC |
| Storage Temperature: | -55 to 125ºC |
| Physical | |
| Weight: | 0.10oz (2.7g) |

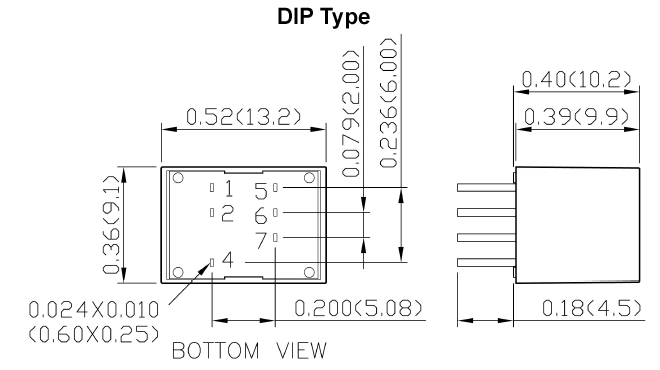

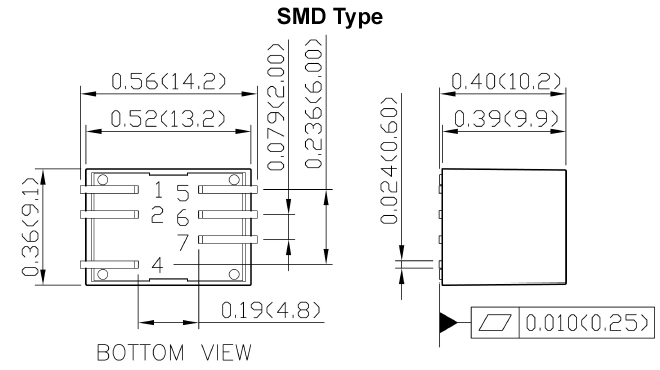

| Dimensions: | Through Hole: 0.52in x 0.36in x 0.40in Surface Mount: 0.56in x 0.36in x 0.40in |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. The standard module meets EMI Class A or Class B and input reflected ripple current with external components. For further information, please contact factory. 2. An external input filter capacitor is required if the module is to meet EN61000-4-4, EN61000-4-5. Suggested filter: Nippon chemi-con KY series, 220µF/100V. 3. This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must always be used. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60905-1, IEC60950-1 |
| RoHS Compliance: | Yes |
