DCMHIR30
The DCMHIR30 series of DC/DC converters offers up to 30 watts of output power in a very compact 2” x 1” x 0.40” through hole package. This series consists of single and dual output models with either a 2:1 input range or 4:1 input range. Each model features low leakage current and standby power, 5000VAC reinforced isolation, no minimum load requirement, and remote on/off with positive or negative logic. The DCMHIR30 series also has protection against over voltage, over load, over temperature, and short circuit conditions and is RoHS and REACH compliant. This series has IEC/EN/ANSI/AAMI ES 60601-1 UL E360199 and IEC/EN/UL 60950-1, 62368-1 UL: E193009 and CB: UL (Demko) safety approvals.
• 4:1 Input Range or 2:1 Input Range
• 5000VAC Reinforced Insulation
• Low Leakage Current
• Low Standby Power
• No Minimum Load Required
• Remote ON/OFF Positive or Negative Logic
• 2xMOPP
• 5000 Meter Operating Altitude
• Over Voltage, Over Load, Over Temperature, and Short Circuit Protection
• Non-Conductive Black Plastic Case
• RoHS & REACH Compliant
• Internal EN55032 Class A Filter
• IEC/EN/ANSI/AAMI ES 60601-1 UL: E360199 and IEC/EN/UL 60950-1, 62368-1 UL: E193009 and CB: UL (Demko) Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMHIR30-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 1.25A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-242S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-242S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-242S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-242S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 1.25 | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-244S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-244S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-244S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-244S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 1.25A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-482S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-482S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-482S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-482S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 1.25A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-484S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-484S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-484S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-484S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 1.25A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-12D05 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±3A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-12D12 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±1.25A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±1A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-242D05 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±3A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-242D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±1.25A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-242D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±1A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-244D05 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±3A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-244D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±1.25A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-244D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±1A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-482D05 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±3A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-482D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±1.25A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-482D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±1A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-484D05 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±3A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-484D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±1.25A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| DCMHIR30-484D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±1A | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 9~18, 18~36, 9~36, 36~75, 18~75 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | 5, 12, 15, 24, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 1.25A, 2A, 2.5A, 6A, ±1A, ±1.25A, ±3A |
| Output Power (Watts): | 30 |
| Output Trim/Adjustability: | 5Vout & 12Vout: ±10% 15Vout & 24Vout: |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | 5V Models: 6.2VDC 12V Models: 15VDC 15V Models: 20VDC 24V Models: 30VDC |
| Thermal Protection: | 115ºC |
| General | |
| Efficiency: | Up to 90% |
| Isolation: | 1 minute, Input to Output: 5000VAC |
| Environmental | |
| Operating Temperature: | -40 to +105ºC |
| Storage Temperature: | -55 to+125ºC |
| Physical | |
| Weight: | 1.13oz (32g) |

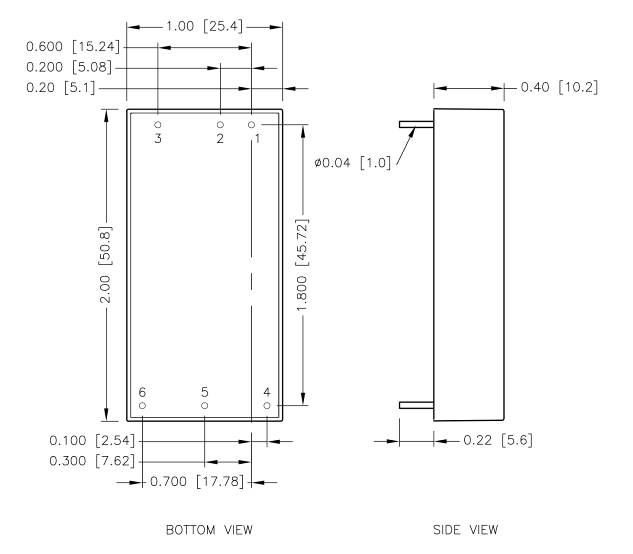

| Dimensions: | 2in x 1in x 0.40in (50.8mm x 25.4mm x 10.2mm) |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. To order positive logic remote on/off, add the suffix “P” to the model number. To order negative logic remote on/off, add the suffix “R” to the model number. 2. This product is Listed to applicable standards and requirements by UL. CAUTION: Power modules not internally fused. An input line fuse must always be used. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN/ANSI/AAMI ES 60601-1, IEC/EN/UL 60950-1, 62368-1 |
| RoHS Compliance: | Yes |
