WMIGMPU30

The WMIGMPU30 series of AC/DC wall mount power supplies with interchangeable plugs offers up to 30 watts of output power in a compact case. This series consists of single output models with a universal input range and several available options including plug type and output connector. Each model in this series features high efficiency, short circuit, over voltage, and over current protection, as well as means of patient protection design. This series is EISA 2007/DoE (VI) & EY ErP/CoC (4), is CE marked, and has UL: ES60601-1, CSA: 22.2 No.60601-1, CB: IEC60601-1, and EN: 60601-1 safety approvals. Please contact factory for order details.

• Universal Input Voltage Range • Single Outputs • Six Plug Types Available • Optional Output Connectors Available • Meets EISA 2007/DoE (VI) & EU ErP/CoC (4) • Up to 30 Watts of Output Power • Short Circuit, Over Voltage, and Over Current Protection • Means of Patient Protection Design • Possesses Risk Analysis Report • High Efficiency • 2 Year Warranty • CE Marked • UL: ES60601-1, CSA: C22.2 No.60601-1, CB: IEC60601-1, and EN: 60601-1 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
WMIGMPU30X-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 4A Output Power (W): 20 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGMPU30X-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 4.17A Output Power (W): 25 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGMPU30X-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 3.75A Output Power (W): 30 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGMPU30X-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 2.73A Output Power (W): 30 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGMPU30X-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 2.30A Output Power (W): 30 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGMPU30X-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 1.88A Output Power (W): 30 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGMPU30X-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 1.43A Output Power (W): 30 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGMPU30X-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 1.11A Output Power (W): 30 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
WMIGMPU30X-8 Input Voltage: 100~240 Output Voltage: 33~58 Output Current: 0.90A Output Power (W): 30 No. Outputs: S Case: Wall Mount with Interchangeable Plugs Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 47 to 63Hz
Output
Output Voltage: 5~6, 6~8, 8~11, 11~13, 13~16, 16`21, 21~27, 27~33, 33~58
Output Current: 0.90A, 1.11A, 1.43A, 1.88A, 2.30A, 2.73A, 3.75A, 4A, 4.17A,
Output Power (Watts): 20, 25, 30
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Protected by Zener Diode
General
Efficiency: Up to 86.95%
Environmental
Operating Temperature: 0 to 40ºC
Storage Temperature: -40 to +85ºC
Physical
Weight: 6oz~6.70oz (170~190g)

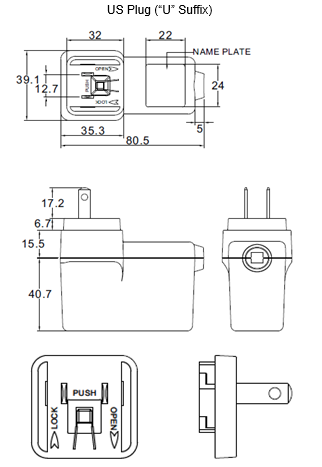

Dimensions: US Plug: 1.54in x 2.48in x 3.17in (39.1mm x 62.9mm x 80.5mm)

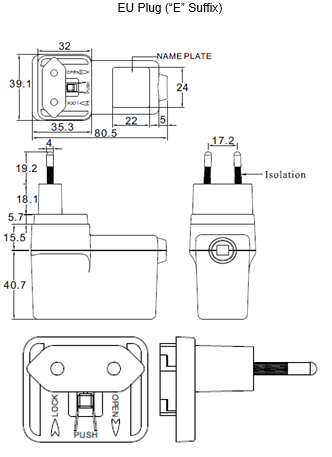

EU Plug: 1.54in x 2.44in x 3.17in (39.1mm x 61.9mm x 80.5mm)

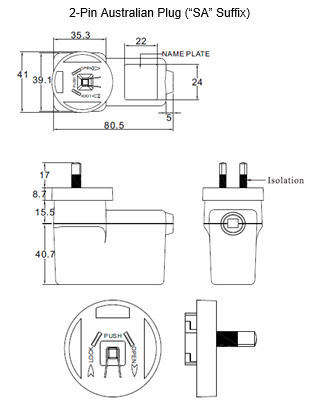

2-Pin Australian Plug: 1.61in x 2.56in x 3.17in (41mm x 64.9mm x 80.5mm)

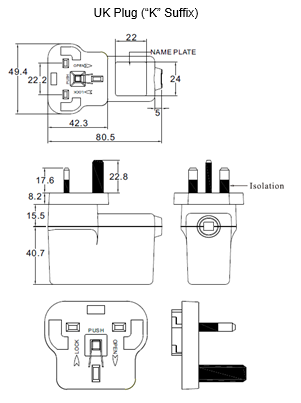

UK Plug: 1.94in x 2.54in x 3.17in (49.4mm x 64.4mm x 80.5mm)

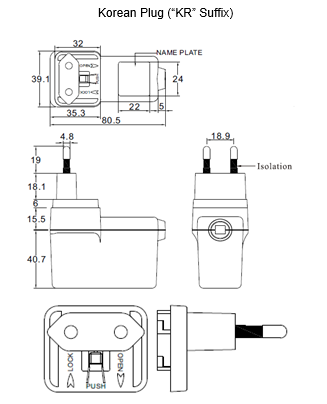

Korea Plug: 1.54in x 2.45in x 3.17in (39.1mm x 62.2mm x 80.5mm)

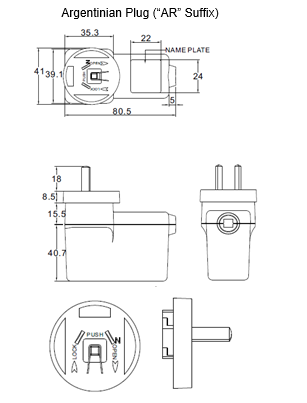

Argentina Plug: 1.61in x 2.55in x 3.17in (41mm x 64.7mm x 80.5mm)
Notes & safety
Notes: 1. “X” in product name represents optional plug type. “X” can either be “U” for “US Plug”, “E” for “EU Plug, “SA” for “2-Pin Australian Plug”, “K” for “UK Plug”, “KR” for “Korean Plug”, or “AR” for Argentina Plug.
2. Avg. Efficiency: Averages the efficiency at 25, 50, 75, and 100% max. rated output current.
3. Optional output connectors available.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL: ES60601-1, CSA: C22.2 NO. 60601-1, CB: IEC60601-1, EN: EN60601-1
Energy Star Compliance: Level VI
