WMICP30
The WMICP30 series of AC DC interchangeable wall mount power supplies provides 15-30 watts of output power. This series consists of single output models with wide input voltage range of 90~264VAC and output voltages ranging from 9~24V. Four different interchangeable plugs are available for this series: US, UK, AU, and EU plugs. Each model of this series is Efficiency Level VI and RoHS compliant. This series also has UL, cUL, FCC, CE, GS, KC, PSE, CCC, SAA, C-Tick, CB and BSI1363 safety approvals.

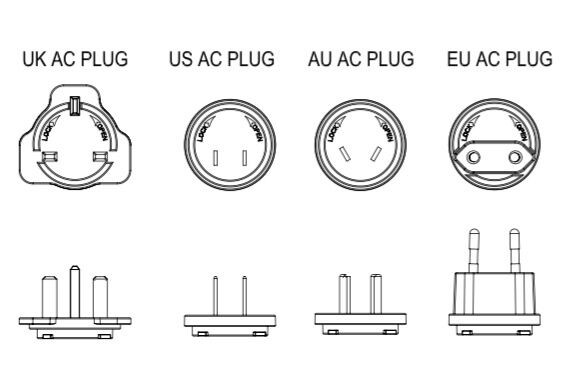

X: “U” for US Plug, “K” for UK Plug, “E” for European Plug, or “A” for Australia Plug
WMICP30A-120-1250 = 12VDC Output with Australian Plug
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMICP30x-075-2000 | Input Voltage: 90~264 | Output Voltage: 7.5 | Output Current: 2000mA | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.7" x 1.2" x 2.8" | Get a Quote |
| WMICP30x-120-1250 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1250mA | Output Power (W): 15 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.7" x 1.2" x 2.8" | Get a Quote |
| WMICP30x-090-3000 | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 3000mA | Output Power (W): 18 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.7" x 1.2" x 2.8" | Get a Quote |
| WMICP30x-120-1500 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1500mA | Output Power (W): 18 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.7" x 1.2" x 2.8" | Get a Quote |
| WMICP30x-180-1000 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 1000mV | Output Power (W): 18 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.7" x 1.2" x 2.8" | Get a Quote |
| WMICP30x-120-1600 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1600mA | Output Power (W): 19.2 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.7" x 1.2" x 2.8" | Get a Quote |
| WMICP30x-120-2000 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 2000mA | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.7" x 1.2" x 2.8" | Get a Quote |
| WMICP30x-240-1000 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 1000mV | Output Power (W): 24 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.7" x 1.2" x 2.8" | Get a Quote |
| WMICP30x-090-2000 | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 2000mA | Output Power (W): 27 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.7" x 1.2" x 2.8" | Get a Quote |
| WMICP30x-120-2500 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 2500mA | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 1.7" x 1.2" x 2.8" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 7.5, 9, 12, 18, 24 |
| Output Current: | 2000mA, 3000mA, 1500mA, 2500mA, 1000mA, 1250mA |
| Output Power (Watts): | 15, 18, 24, 27, 30 |
| Short Circuit Protection: | Automatic Recovery |
| General | |
| Environmental | |
| Operating Temperature: | 10 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | Approx. 4.59oz (130g) |

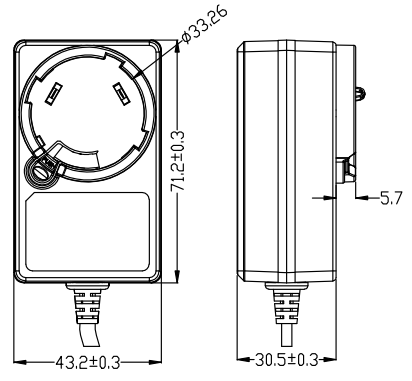

| Dimensions: | 1.70" x 1.20" x 2.80" |
| Notes & safety | |
| Notes: | (1) The “x” in the model number represents interchangeable AC plug type. “x” can be “U” for US plug, “K” for UK plug, “E” for European plug, or “A” for Australia plug. Please call factory for details. (2) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL, cUL, FCC, CE, GS, PSE, CCC, SAA, C-Tick, BS, BSI1363 |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
