WMICP12
The WMICP12 series of Class II wall mount AC/DC power supplies delivers up to 12 Watts of output power in a 2.32” x 1.61” x 1.24” package. This series consists of 5V, 7.5V, 9V, 12V, 19V, and 24V single output models with an input voltage range of 90-264VAC. These supplies are protected against over voltage, over current, and short circuit conditions. The WMICP12 series is RoHS and CEC/ Energy Star Level VI compliant. These supplies also have CE, GS, UL, FCC, and SAA safety approvals. United States, Europe, United Kingdom, and Australia interchangeable plugs are available for this series. Models are available with an output cable or USB connector. Several Pantone® case colors are also available for this series.
• Class II
• RoHS Compliant
• Up to 12 Watts Output Power
• Light Weight, Compact
• 90-264VAC Input Voltage Range
• CEC & Energy Star Level VI Compliant
• CE, GS, UL, FCC, SAA Safety Approvals
• -20°C to +40° Operating Temperature Range
• Single Outputs Ranging from 5VDC to 24VDC
• Over Voltage, Over Current, & Short Circuit Protection
• United States, Europe, United Kingdom, and Australia Interchangeable Plugs are Available
• Models Available with Output Cable or USB Connector
• Several Pantone® Case Colors Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMICP1209K-USB | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 1200mA | Output Power (W): 10.8 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1209E | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 1200mA | Output Power (W): 10.8 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1209U-USB | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 1200mA | Output Power (W): 10.8 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1209E-USB | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 1200mA | Output Power (W): 10.8 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1209U | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 1200mA | Output Power (W): 10.8 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1209K | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 1200mA | Output Power (W): 10.8 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1209A-USB | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 1200mA | Output Power (W): 10.8 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1209A | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 1200mA | Output Power (W): 10.8 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1219E | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 600mA | Output Power (W): 11.4 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1219U | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 600mA | Output Power (W): 11.4 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1219K | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 600mA | Output Power (W): 11.4 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1219A-USB | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 600mA | Output Power (W): 11.4 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1219U-USB | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 600mA | Output Power (W): 11.4 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1219A | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 600mA | Output Power (W): 11.4 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1219K-USB | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 600mA | Output Power (W): 11.4 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1219E-USB | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 600mA | Output Power (W): 11.4 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1205K | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 2400mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1205A-USB | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 2400mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1205K-USB | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 2400mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1205U | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 2400mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1205E | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 2400mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1205E-USB | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 2400mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1205A | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 2400mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1205U-USB | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 2400mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1275A | Input Voltage: 90~264 | Output Voltage: 7.5 | Output Current: 1600mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1275U-USB | Input Voltage: 90~264 | Output Voltage: 7.5 | Output Current: 1600mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1275E-USB | Input Voltage: 90~264 | Output Voltage: 7.5 | Output Current: 1600mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1275A-USB | Input Voltage: 90~264 | Output Voltage: 7.5 | Output Current: 1600mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1275E | Input Voltage: 90~264 | Output Voltage: 7.5 | Output Current: 1600mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1275K-USB | Input Voltage: 90~264 | Output Voltage: 7.5 | Output Current: 1600mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1275U | Input Voltage: 90~264 | Output Voltage: 7.5 | Output Current: 1600mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1275K | Input Voltage: 90~264 | Output Voltage: 7.5 | Output Current: 1600mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1212K-USB | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1000mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1212A-USB | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1000mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1212U-USB | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1000mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1212E-USB | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1000mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1212E | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1000mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1212A | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1000mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1212U | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1000mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1212K | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1000mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1224A | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 500mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1224E | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 500mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1224U | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 500mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1224K-USB | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 500mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1224A-USB | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 500mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1224E-USB | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 500mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1224U-USB | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 500mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| WMICP1224K | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 500mA | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount with Interchangeable Plugs | Size: 2.32" x 1.61" x 1.24" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5, 7.5, 9, 12, 19, 24 |
| Voltage Accuracy: | ±5% |
| Output Current: | 500mA, 600mA, 1000mA, 1200mA, 1600mA, 2000mA |
| Output Power (Watts): | 10.8, 11.4, 12 |
| Short Circuit Protection: | 3.6A Inner Current Fuse |
| General | |
| Efficiency: | 72% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | 10 to 40°C |
| Storage Temperature: | -20 to 80°C |
| Physical | |
| Weight: | 4.94 oz. |

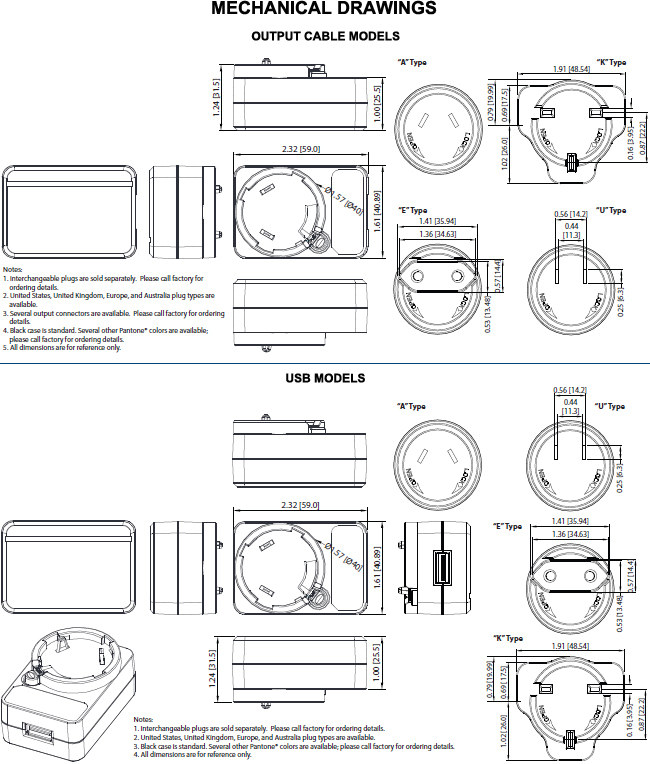

| Dimensions: | 2.32" x 1.61" x 1.24" (59.0 x 40.89 x 31.5 mm) |
| Notes & safety | |
| Notes: | 1. The “X” in the model number represents the type of AC plug: “U” for United States type, “K” for United Kingdom type, “E” for Europe type, and “A” for Australia type. 2. Ripple and noise is measured at 20MHz limited bandwidth with 0.1µF ceramic and 10µF electrolytic capacitors across the output. 3. Several output connector options are available. Please call factory for ordering details. 4. Interchangeable plugs are sold separately. Please call factory for ordering details. 5. Black case is standard. Several other Pantone® colors are available; please call factory for ordering details. 6. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950, FCC Part 15 Class B, CE EN60950/EN55022, GS EN60950/EN55022, SAA AS/NZS60950-1: 2011 |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level V, VI |
