WMEM1036

The WMEM1036 series of medical AC/DC wall mount power supplies provides up to 36 Watts of continuous output power in a 3.92” x 1.79” x 1.22” package. This series consists of single output models with a wide input voltage range of 100~240VAC. The WMEM1036 series is RoHS, WEEE, and CEC/Energy Star Level V compliant and has UL60601-1 medical approvals. These models are also protected against over voltage and short circuit conditions. US 2-Pin (suffix “U”) and US 3-Pin (suffix “5”) plug types are available. Please call factory for ordering details.

• Single Outputs • CEC/Energy Star Level V Compliant • RoHS & WEEE Compliant • Short Circuit and Over Voltage Protection • MTBF: > 30,000 Hours • 100~240VAC Input Voltage Range • US 2-Pin and US 3-Pin Plug Types • Dimensions: 3.92” x 1.79” x 1.22” • UL60601-1 Medical Approvals • Optional Output Connectors Available

Get a Quote Request a Sample Custom Solutions

Models
Specifications

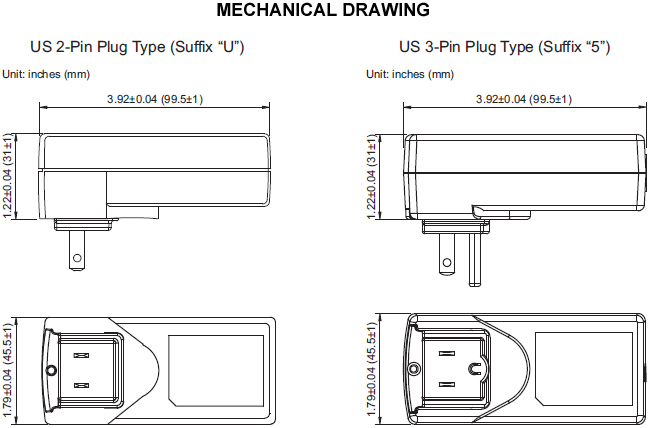

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
WMEM1036EU	Input Voltage: 100~240	Output Voltage: 9~15	Output Current: 1A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount	Size: 3.92" x 1.79" x 1.22"	Get a Quote
WMEM1036E5	Input Voltage: 100~240	Output Voltage: 9~15	Output Current: 1A	Output Power (W): 15	No. Outputs: S	Case: Wall Mount	Size: 3.92" x 1.79" x 1.22"	Get a Quote
WMEM1036DU	Input Voltage: 100~240	Output Voltage: 9~15	Output Current: 1.5A	Output Power (W): 18	No. Outputs: S	Case: Wall Mount	Size: 3.92" x 1.79" x 1.22"	Get a Quote
WMEM1036D5	Input Voltage: 100~240	Output Voltage: 9~15	Output Current: 1.5A	Output Power (W): 18	No. Outputs: S	Case: Wall Mount	Size: 3.92" x 1.79" x 1.22"	Get a Quote
WMEM1036CU	Input Voltage: 100~240	Output Voltage: 9~15	Output Current: 2A	Output Power (W): 24	No. Outputs: S	Case: Wall Mount	Size: 3.92" x 1.79" x 1.22"	Get a Quote
WMEM1036C5	Input Voltage: 100~240	Output Voltage: 9~15	Output Current: 2A	Output Power (W): 24	No. Outputs: S	Case: Wall Mount	Size: 3.92" x 1.79" x 1.22"	Get a Quote
WMEM1036BU	Input Voltage: 100~240	Output Voltage: 9~15	Output Current: 2.5A	Output Power (W): 30	No. Outputs: S	Case: Wall Mount	Size: 3.92" x 1.79" x 1.22"	Get a Quote
WMEM1036B5	Input Voltage: 100~240	Output Voltage: 9~15	Output Current: 2.5A	Output Power (W): 30	No. Outputs: S	Case: Wall Mount	Size: 3.92" x 1.79" x 1.22"	Get a Quote
WMEM1036AU	Input Voltage: 100~240	Output Voltage: 9~15	Output Current: 3A	Output Power (W): 36	No. Outputs: S	Case: Wall Mount	Size: 3.92" x 1.79" x 1.22"	Get a Quote
WMEM1036A5	Input Voltage: 100~240	Output Voltage: 9~15	Output Current: 3A	Output Power (W): 36	No. Outputs: S	Case: Wall Mount	Size: 3.92" x 1.79" x 1.22"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	115/230
Input Voltage Range:	100~240
Input Frequency:	50/60Hz
Output
Output Voltage:	9~15
Output Current:	3A, 2.5A, 2A, 1.5A, 1A
Output Power (Watts):	15, 18, 24, 30, 36
Short Circuit Protection:	Automatic Recovery
Over Voltage Protection:	Automatic Recovery
General
Efficiency:	82%
Environmental
Operating Temperature:	0 to 50°C
Storage Temperature:	-20 to 85°C
Physical
Weight:	7.76oz (220g)
Dimensions:	3.92" x 1.79" x 1.22" (99.5 x 45.5 x 31 mm)
Notes & safety
Notes:	1. US 2-Pin (Suffix "U") and US 3-Pin (Suffix "5") AC plug types are available 2. The output voltage is specified as a range (Ex: 9~15VDC); the customer must specify what they want the voltage set at. 3. Optional output connectors are available. Please call factory for ordering details. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice.
Safety Approvals:	UL60601-1
RoHS Compliance:	Yes
Energy Star Compliance:	Level V
