WMEA1022

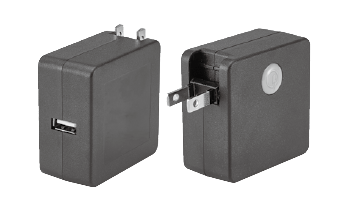

The WMEA1022 series of AC/DC wall mount power supplies offers 20~30 watts of output power in a 2.36” x 1.18” x 2.36” package. This series consists of single output models with an input voltage range of 100-240VAC. Each model in this series is RoHS and CEC compliant, and has over voltage, over power and short circuit protection. This series has UL/cUL, CB, CE, FCC, and CC safety approvals. Please call factory for order details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMEA1022A | Input Voltage: 100~240 | Output Voltage: 5 | Output Current: 4A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: 2.36" x 1.18" x 2.36" | Get a Quote |
| WMEA1022B | Input Voltage: 100~240 | Output Voltage: 9 | Output Current: 2.22A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: 2.36" x 1.18" x 2.36" | Get a Quote |
| WMEA1022D | Input Voltage: 100~240 | Output Voltage: 20 | Output Current: 1A | Output Power (W): 20 | No. Outputs: S | Case: Wall Mount | Size: 2.36" x 1.18" x 2.36" | Get a Quote |
| WMEA1022C | Input Voltage: 100~240 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Wall Mount | Size: 2.36" x 1.18" x 2.36" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Output | |
| Output Voltage: | 5, 9, 12, 20 |
| Output Current: | 4A, 2.22A, 2.5A, 1.0A |
| Output Power (Watts): | 20, 30 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Efficiency: | 80.95% |
| Environmental | |
| Operating Temperature: | 0 to 40ºC |
| Storage Temperature: | -20 to 85ºC |
| Physical | |
| Weight: | 7.05oz (200g) |

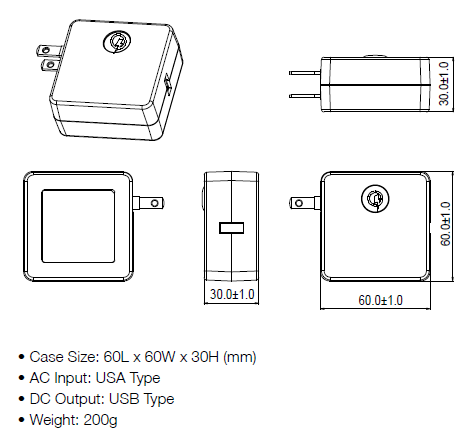

| Dimensions: | 2.36in x 1.18in x 2.36in |
| Notes & safety | |
| Notes: | 1. Output Voltage control follows Table 1 rule. Output Voltage Spec refer to model selection table. 2. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 3. Only for 5V, 9V, 12V output used. 4. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. 5. Certificates listed are for reference only. Please contact factory for details. 6. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, CB, CE, FCC, CCC |
| RoHS Compliance: | Yes |
