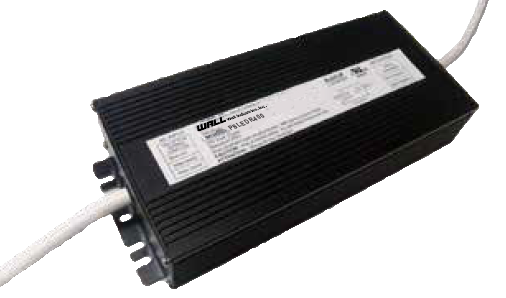

PSLEDR400
The PSLEDR400 series of constant voltage LED drivers offers 400 watts of power in an 11.47” x 4.43” x 1.91” package. This series consists of single output models with an input voltage range of 120~277VAC and an IP67 design for wet locations. Each model in this series is RoHS compliant and is protected against over voltage, over current, over temperature, and short circuit conditions.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSLEDR400-24S | Input Voltage: 120~277 | Output Voltage: 24 | Output Current: 16.5A | Output Power (W): 400 | No. Outputs: S | Case: LED Driver | Size: 11.47" x 4.43" x 1.91" | Get a Quote |
| PSLDER400-48S | Input Voltage: 120~277 | Output Voltage: 48 | Output Current: 8.3A | Output Power (W): 400 | No. Outputs: S | Case: LED Driver | Size: 11.47" x 4.43" x 1.91" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 240 |
| Input Voltage Range: | 120~277 |
| PFC: | 0.9 |
| Input Frequency: | 50/60 |
| Output | |
| Output Voltage: | 24, 48 |
| Output Current: | 8.3A, 16.5A |
| Output Power (Watts): | 400 |
| Short Circuit Protection: | Hiccup Mode |
| Over Voltage Protection: | Hiccup Mode |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 94% |
| Environmental | |
| Operating Temperature: | -40 to 60°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 6.17lbs (2.8kg) |
| Dimensions: | 11.47in x 4.43in x 1.91in (291.3mm x 112.4mm x 48.4mm) |
| Case Material: | Aluminum |
| Notes & safety | |
| Notes: | 1. This product is listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, UL 8750, Class P, Type HL |
| RoHS Compliance: | Yes |
