PSESL500

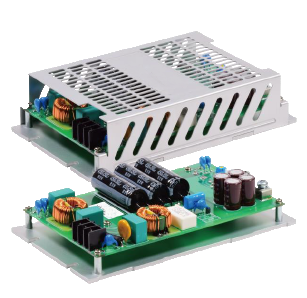

The PSESL500 series of AC/DC power supplies offers up to 500 watts of output power in a compact 7.2” x 4.3” x 1.5~1.65” open frame or enclosed package. This series consists of single output models with a universal input voltage range of 85~264VAC (88~370VDC). Each model in this series features low standby power, high efficiency, and 3000VAC reinforced insulation. Several options are available for this series including package type and load share. This series also has over voltage, over current, over temperature, and short circuit protection, is RoHS and REACH compliant, and meets IEC/EN/UL 62368-1 safety standards.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSESL500-12S | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 42A | Output Power (W): 500 | No. Outputs: S | Case: Open Frame | Size: 7.2" x 4.30" x 1.5" | Get a Quote |
| PSESL500-15S | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 33.5A | Output Power (W): 500 | No. Outputs: S | Case: Open Frame | Size: 7.2" x 4.30" x 1.5" | Get a Quote |
| PSESL500-24S | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 21A | Output Power (W): 500 | No. Outputs: S | Case: Open Frame | Size: 7.2" x 4.30" x 1.5" | Get a Quote |
| PSESL500-28S | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 18A | Output Power (W): 500 | No. Outputs: S | Case: Open Frame | Size: 7.2" x 4.30" x 1.5" | Get a Quote |
| PSESL500-48S | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 10.5A | Output Power (W): 500 | No. Outputs: S | Case: Open Frame | Size: 7.2" x 4.30" x 1.5" | Get a Quote |
| PSESL500-54S | Input Voltage: 85~264 | Output Voltage: 54 | Output Current: 9.4A | Output Power (W): 500 | No. Outputs: S | Case: Open Frame | Size: 7.2" x 4.30" x 1.5" | Get a Quote |
| PSESL500-12S-C | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 42A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed Case | Size: 7.2" x 4.30" x 1.65" | Get a Quote |
| PSESL500-15S-C | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 33.5A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed Case | Size: 7.2" x 4.30" x 1.65" | Get a Quote |
| PSESL500-24S-C | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 21A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed Case | Size: 7.2" x 4.30" x 1.65" | Get a Quote |
| PSESL500-28S-C | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 18A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed Case | Size: 7.2" x 4.30" x 1.65" | Get a Quote |
| PSESL500-48S-C | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 10.5A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed Case | Size: 7.2" x 4.30" x 1.65" | Get a Quote |
| PSESL500-54S-C | Input Voltage: 85~264 | Output Voltage: 54 | Output Current: 9.4A | Output Power (W): 500 | No. Outputs: S | Case: Enclosed Case | Size: 7.2" x 4.30" x 1.65" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~264 |
| Remote ON/OFF: | Yes |
| PFC: | 0.9 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 12, 15, 24, 28, 48, 54 |
| Voltage Accuracy: | ±1% |
| Output Current: | 42A, 33.5A, 21A, 18A, 10.5A, 9.4A |
| Output Power (Watts): | 500 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | 115-135% |
| Thermal Protection: | 115ºC |
| General | |
| Efficiency: | Up to 93% |
| Isolation: | Up to 3000VAC |
| Environmental | |
| Operating Temperature: | -40 to 100°C |
| Storage Temperature: | -55 to 105°C |
| Physical | |
| Weight: | Open Type: 20.45oz (580g) Enclosed Case: 22.56oz (640g) |

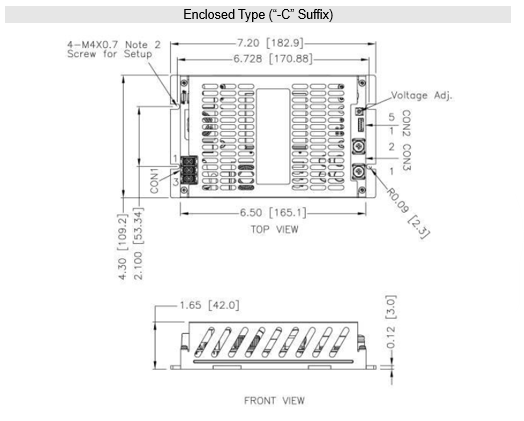

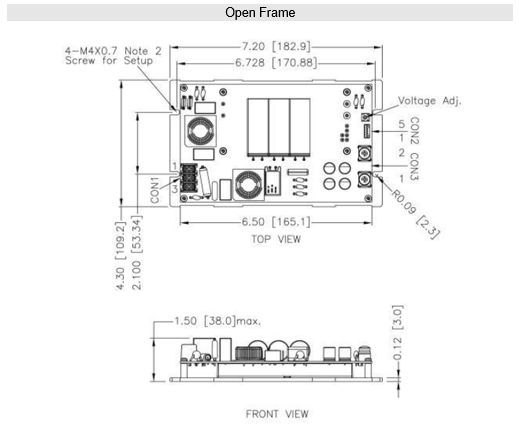

| Dimensions: | Open Type: 7.2 x 4.30 x 1.5in (182.9 x 109.2 x 38mm) Enclosed Case: 7.2 x 4.30 x 1.65in (182.9 x 109.2 x 42mm) |
| Notes & safety | |
| Notes: | 1. If remote sense is not being used, sense pins should be connected to corresponding polarity OUTPUT pins. 2. External power supply is required between +Ctrl and -Ctrl 3. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN/UL 62368-1 |
| RoHS Compliance: | Yes |
