PSEP1200
The PSEP1200 series of AC/DC open frame power supplies offers up to 200 watts of output power in a 5” x 3” x 1.43” package. This series has a wide input voltage range of 90~264VAC and single, dual, triple, and quad outputs are available. The PSEP1200 series has high minimum efficiency of 85%, is RoHS and CE compliant, and has over voltage, over current, and short circuit protection. It has UL/CUL, CB, CE, and FCC safety approvals and has been 100% burn-in and hi-pot tested.
• Wide Input Voltage Range of 90-264VAC
• High Minimum Efficiency of 85%
• RoHS and CEC Compliant
• Over Voltage, Over Current and Short Circuit Protection
• 100% Burn-In and Hi-Pot Tested
• Single, Dual, Triple, and Quad Outputs
• UL/CUL, CB, CE, and FCC Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSEP11000500 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 20A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP210005A0 | Input Voltage: 90~264 | Output Voltage: 5, 5 | Output Current: 18A, 2A | Output Power (W): 100 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11100900 | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 12.22A | Output Power (W): 110 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP211509A0 | Input Voltage: 90~264 | Output Voltage: 9, 5 | Output Current: 11.67A, 2A | Output Power (W): 115 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP212015A0 | Input Voltage: 90~264 | Output Voltage: 15, 5 | Output Current: 7.33A, 2A | Output Power (W): 120 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP312015C0 | Input Voltage: 90~264 | Output Voltage: 15, 5, -12 | Output Current: 6.93A, 2A, 0.5A | Output Power (W): 120 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP312215AA | Input Voltage: 90~264 | Output Voltage: 15, 5, 5 | Output Current: 5.80A, 2A, 5A | Output Power (W): 122 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11251000 | Input Voltage: 90~264 | Output Voltage: 10 | Output Current: 12.50A | Output Power (W): 125 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11251100 | Input Voltage: 90~264 | Output Voltage: 11 | Output Current: 11.36A | Output Power (W): 125 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11251500 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 8.33A | Output Power (W): 125 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11251600 | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 7.81A | Output Power (W): 125 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP312510C0 | Input Voltage: 90~264 | Output Voltage: 10, 5, -12 | Output Current: 10.90A, 2A, 0.5A | Output Power (W): 125 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP312516C0 | Input Voltage: 90~264 | Output Voltage: 16, 5, -12 | Output Current: 6.81A, 2A, 0.5A | Output Power (W): 125 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP212610A0 | Input Voltage: 90~264 | Output Voltage: 10, 5 | Output Current: 11.60A, 2A | Output Power (W): 126 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP212716A0 | Input Voltage: 90~264 | Output Voltage: 16, 5 | Output Current: 7.31A, 2A | Output Power (W): 127 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP412715CA | Input Voltage: 90~264 | Output Voltage: 15, 5, -12, 5 | Output Current: 5.73A, 2A, 0.5A, 5A | Output Power (W): 127 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP312816AA | Input Voltage: 90~264 | Output Voltage: 16, 5, 5 | Output Current: 5.81A, 2A, 5A | Output Power (W): 128 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP313010AA | Input Voltage: 90~264 | Output Voltage: 10, 5, 5 | Output Current: 9.50A, 2A, 5A | Output Power (W): 130 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP413010CA | Input Voltage: 90~264 | Output Voltage: 10, 5, -12, 5 | Output Current: 8.90A, 2A, 0.5A, 5A | Output Power (W): 130 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP413216CA | Input Voltage: 90~264 | Output Voltage: 16, 5, -12, 5 | Output Current: 5.68A, 2A, 0.5A, 5A | Output Power (W): 132 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11350900 | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 15A | Output Power (W): 135 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11351800 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 7.50A | Output Power (W): 135 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11352200 | Input Voltage: 90~264 | Output Voltage: 22 | Output Current: 6.13A | Output Power (W): 135 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP213517A0 | Input Voltage: 90~264 | Output Voltage: 17, 5 | Output Current: 7.35A, 2A | Output Power (W): 135 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP313517AA | Input Voltage: 90~264 | Output Voltage: 17, 5, 5 | Output Current: 5.88A, 2A, 5A | Output Power (W): 135 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP313511C0 | Input Voltage: 90~264 | Output Voltage: 11, 5, -12 | Output Current: 10.81A, 2A, 0.5A | Output Power (W): 135 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP313517C0 | Input Voltage: 90~264 | Output Voltage: 17, 5, -12 | Output Current: 7.00A, 2A, 0.5A | Output Power (W): 135 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP313522C0 | Input Voltage: 90~264 | Output Voltage: 22, 5, -12 | Output Current: 5.40A, 2A, 0.5A | Output Power (W): 135 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP213809A0 | Input Voltage: 90~264 | Output Voltage: 9, 5 | Output Current: 14.17A, 2A | Output Power (W): 138 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP213811A0 | Input Voltage: 90~264 | Output Voltage: 11, 5 | Output Current: 11.63A, 2A | Output Power (W): 138 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP213822A0 | Input Voltage: 90~264 | Output Voltage: 22, 5 | Output Current: 5.81A, 2A | Output Power (W): 138 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11402300 | Input Voltage: 90~264 | Output Voltage: 23 | Output Current: 6.08A | Output Power (W): 140 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11403400 | Input Voltage: 90~264 | Output Voltage: 34 | Output Current: 4.11A | Output Power (W): 140 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11403500 | Input Voltage: 90~264 | Output Voltage: 35 | Output Current: 4.00A | Output Power (W): 140 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11404600 | Input Voltage: 90~264 | Output Voltage: 46 | Output Current: 3.04A | Output Power (W): 140 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11404700 | Input Voltage: 90~264 | Output Voltage: 47 | Output Current: 2.97A | Output Power (W): 140 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11405400 | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 2.59A | Output Power (W): 140 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP314011AA | Input Voltage: 90~264 | Output Voltage: 11, 5, 5 | Output Current: 9.54A, 2A, 5A | Output Power (W): 140 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP314022AA | Input Voltage: 90~264 | Output Voltage: 22, 5, 5 | Output Current: 4.77A, 2A, 5A | Output Power (W): 140 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP314023C0 | Input Voltage: 90~264 | Output Voltage: 23, 5, -12 | Output Current: 5.39A, 2A, 0.5A | Output Power (W): 140 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP314034C0 | Input Voltage: 90~264 | Output Voltage: 34, 5, -12 | Output Current: 3.64A, 2A, 0.5A | Output Power (W): 140 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP314035C0 | Input Voltage: 90~264 | Output Voltage: 35, 5, -12 | Output Current: 3.54A, 2A, 0.5A | Output Power (W): 140 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP314046C0 | Input Voltage: 90~264 | Output Voltage: 46, 2, 0.5 | Output Current: 2.69A, 2A, 0.5A | Output Power (W): 140 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP314047C0 | Input Voltage: 90~264 | Output Voltage: 47, 5, -12 | Output Current: 2.63A, 2A, 0.5A | Output Power (W): 140 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP314054C0 | Input Voltage: 90~264 | Output Voltage: 54, 5, -12 | Output Current: 3.82A, 2A, 0.5A | Output Power (W): 140 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP414011CA | Input Voltage: 90~264 | Output Voltage: 11, 5, -12, 5 | Output Current: 9.00A, 2A, 0.5A, 5A | Output Power (W): 140 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP414022CA | Input Voltage: 90~264 | Output Voltage: 22, 5, -12, 5 | Output Current: 4.50A, 2A, 0.5A, 5A | Output Power (W): 140 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP314122AB | Input Voltage: 90~264 | Output Voltage: 22, 5, 12 | Output Current: 3.22A, 2A, 5A | Output Power (W): 141 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP214218A0 | Input Voltage: 90~264 | Output Voltage: 18, 5 | Output Current: 7.33A, 2A | Output Power (W): 142 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP214234A0 | Input Voltage: 90~264 | Output Voltage: 34, 5 | Output Current: 3.88A, 2A | Output Power (W): 142 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP314218AA | Input Voltage: 90~264 | Output Voltage: 18, 5, 5 | Output Current: 5.94A, 2A, 5A | Output Power (W): 142 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP314215C0 | Input Voltage: 90~264 | Output Voltage: 15, 5, -12 | Output Current: 8.40A, 2A, 0.5A | Output Power (W): 142 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP314218C0 | Input Voltage: 90~264 | Output Voltage: 18, 5, -12 | Output Current: 7.00A, 2A, 0.5 | Output Power (W): 142 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP214346A0 | Input Voltage: 90~264 | Output Voltage: 46, 5 | Output Current: 2.89A, 2A | Output Power (W): 143 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP414322CA | Input Voltage: 90~264 | Output Voltage: 22, 5, -12, 12 | Output Current: 3.04A, 2A, 0.5A, 5A | Output Power (W): 143 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP214415A0 | Input Voltage: 90~264 | Output Voltage: 15, 5 | Output Current: 8.95A, 2A | Output Power (W): 144 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP214423A0 | Input Voltage: 90~264 | Output Voltage: 23, 5 | Output Current: 5.82A, 2A | Output Power (W): 144 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP214454A0 | Input Voltage: 90~264 | Output Voltage: 54, 5 | Output Current: 2.48A, 2A | Output Power (W): 144 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP414418CA | Input Voltage: 90~264 | Output Voltage: 18, 5, -12, 5 | Output Current: 5.72A, 2A, 0.5A, 5A | Output Power (W): 144 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11455500 | Input Voltage: 90~264 | Output Voltage: 55 | Output Current: 2.63A | Output Power (W): 145 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP214535A0 | Input Voltage: 90~264 | Output Voltage: 35, 5 | Output Current: 3.85A, 2A | Output Power (W): 145 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP214547A0 | Input Voltage: 90~264 | Output Voltage: 47, 5 | Output Current: 2.87A, 2A | Output Power (W): 145 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP314518AB | Input Voltage: 90~264 | Output Voltage: 18, 5, 12 | Output Current: 4.16A, 2A, 5A | Output Power (W): 145 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP314523AA | Input Voltage: 90~264 | Output Voltage: 23, 5, 5 | Output Current: 4.78A, 2A, 5A | Output Power (W): 145 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP314523AB | Input Voltage: 90~264 | Output Voltage: 23, 5, 12 | Output Current: 3.26A, 2A, 5A | Output Power (W): 145 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP314555C0 | Input Voltage: 90~264 | Output Voltage: 55, 5, -12 | Output Current: 4.41A, 2A, 0.5A | Output Power (W): 145 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP414523CA | Input Voltage: 90~264 | Output Voltage: 23, 5, -12, 5 | Output Current: 4.52A, 2A, 0.5A, 5A | Output Power (W): 145 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP414523CA | Input Voltage: 90~264 | Output Voltage: 23, 5, -12, 12 | Output Current: 3.00A, 2A, 0.5A, 5A | Output Power (W): 145 | No. Outputs: M | Case: Open Frame | Size: | Get a Quote |
| PSEP314615AA | Input Voltage: 90~264 | Output Voltage: 15, 5, 5 | Output Current: 7.40A, 2A, 5A | Output Power (W): 146 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP414615CA | Input Voltage: 90~264 | Output Voltage: 15, 5, -12, 5 | Output Current: 7.00A, 2A, 0.5A, 5A | Output Power (W): 146 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP414618CA | Input Voltage: 90~264 | Output Voltage: 18, 5, -12, 12 | Output Current: 3.88A, 2A, 0.5A, 5A | Output Power (W): 146 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP214755A0 | Input Voltage: 90~264 | Output Voltage: 55, 5 | Output Current: 2.49A, 2A | Output Power (W): 147 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP314910C0 | Input Voltage: 90~264 | Output Voltage: 10, 5, -12 | Output Current: 13.30A, 2A, 0.5A | Output Power (W): 149 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11501000 | Input Voltage: 90~264 | Output Voltage: 10 | Output Current: 15A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11501200 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 12.50A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP115012E0 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 12.50A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11501500 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 10A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11501600 | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 9.37A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11501700 | Input Voltage: 90~264 | Output Voltage: 17 | Output Current: 8.23A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11501800 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 8.33A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11501900 | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 7.89A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11502200 | Input Voltage: 90~264 | Output Voltage: 22 | Output Current: 6.81A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11502300 | Input Voltage: 90~264 | Output Voltage: 23 | Output Current: 6.52A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11502400 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 6.25A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11503400 | Input Voltage: 90~264 | Output Voltage: 34 | Output Current: 4.41A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11503500 | Input Voltage: 90~264 | Output Voltage: 35 | Output Current: 4.28A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11503600 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 4.16A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11504600 | Input Voltage: 90~264 | Output Voltage: 46 | Output Current: 3.26A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11504700 | Input Voltage: 90~264 | Output Voltage: 47 | Output Current: 3.19A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11504800 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 3.12A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11505400 | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 2.77A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11505500 | Input Voltage: 90~264 | Output Voltage: 55 | Output Current: 2.72A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11505600 | Input Voltage: 90~264 | Output Voltage: 56 | Output Current: 2.67A | Output Power (W): 150 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP215012A0 | Input Voltage: 90~264 | Output Voltage: 12, 5 | Output Current: 11.67A, 2A | Output Power (W): 150 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP215019A0 | Input Voltage: 90~264 | Output Voltage: 19, 5 | Output Current: 7.36A, 2A | Output Power (W): 150 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP215024A0 | Input Voltage: 90~264 | Output Voltage: 24, 5 | Output Current: 5.83A, 2A | Output Power (W): 150 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP215036A0 | Input Voltage: 90~264 | Output Voltage: 36, 5 | Output Current: 3.88A, 2A | Output Power (W): 150 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP215048A0 | Input Voltage: 90~264 | Output Voltage: 48, 5 | Output Current: 2.91A, 2A | Output Power (W): 150 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP215056A0 | Input Voltage: 90~264 | Output Voltage: 56, 5 | Output Current: 2.50A, 2A | Output Power (W): 150 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP215012B0 | Input Voltage: 90~264 | Output Voltage: 12, -12 | Output Current: 12A, 0.5A | Output Power (W): 150 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP215019B0 | Input Voltage: 90~264 | Output Voltage: 19, -12 | Output Current: 7.57A, 0.5A | Output Power (W): 150 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP215024B0 | Input Voltage: 90~264 | Output Voltage: 24, -12 | Output Current: 6.00A, 0.5A | Output Power (W): 150 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP215036B0 | Input Voltage: 90~264 | Output Voltage: 36, -12 | Output Current: 4.00A, 0.5A | Output Power (W): 150 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP215048B0 | Input Voltage: 90~264 | Output Voltage: 48, -12 | Output Current: 3.00A, 0.5A | Output Power (W): 150 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP215056B0 | Input Voltage: 90~264 | Output Voltage: 56, -12 | Output Current: 2.57A, 0.5A | Output Power (W): 150 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315010AA | Input Voltage: 90~264 | Output Voltage: 10, 5, 5 | Output Current: 11.50A, 2A, 5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315011AA | Input Voltage: 90~264 | Output Voltage: 11, 5, 5 | Output Current: 10.45A, 2A, 5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315012AA | Input Voltage: 90~264 | Output Voltage: 12, 5, 5 | Output Current: 9.58A, 2A, 5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315019AA | Input Voltage: 90~264 | Output Voltage: 19, 5, 5 | Output Current: 6.05A, 2A, 5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315019AB | Input Voltage: 90~264 | Output Voltage: 19, 5, 12 | Output Current: 4.21A, 2A, 5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315022AA | Input Voltage: 90~264 | Output Voltage: 22, 5, 5 | Output Current: 5.22A, 2A, 5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315024AA | Input Voltage: 90~264 | Output Voltage: 24, 5, 5 | Output Current: 4.79A, 2A, 5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315024AB | Input Voltage: 90~264 | Output Voltage: 24, 5, 12 | Output Current: 3.33A, 2A, 5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315012C0 | Input Voltage: 90~264 | Output Voltage: 12, 5, -12 | Output Current: 11.16A, 2A, 0.5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315016C0 | Input Voltage: 90~264 | Output Voltage: 16, 5, -12 | Output Current: 8.37A, 2A, 0.5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315019C0 | Input Voltage: 90~264 | Output Voltage: 19, 5, -12 | Output Current: 7.05A, 2A, 0.5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315024C0 | Input Voltage: 90~264 | Output Voltage: 24, 5, -12 | Output Current: 5.58A, 2A, 0.5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315034C0 | Input Voltage: 90~264 | Output Voltage: 34, 5, -12 | Output Current: 3.94A, 2A, 0.5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315035C0 | Input Voltage: 90~264 | Output Voltage: 35, 5, -12 | Output Current: 3.82A, 2A, 0.5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315036C0 | Input Voltage: 90~264 | Output Voltage: 36, 5, -12 | Output Current: 3.72A, 2A, 0.5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315046C0 | Input Voltage: 90~264 | Output Voltage: 46, 5, -12 | Output Current: 2.91A, 2A, 0.5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315047C0 | Input Voltage: 90~264 | Output Voltage: 47, 5, -12 | Output Current: 2.85A, 2A, 0.5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315048C0 | Input Voltage: 90~264 | Output Voltage: 48, 5, -12 | Output Current: 2.79A, 2A, 0.5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315056C0 | Input Voltage: 90~264 | Output Voltage: 56, 5, -12 | Output Current: 2.91A, 2A, 0.5A | Output Power (W): 150 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP415010CA | Input Voltage: 90~264 | Output Voltage: 10, 5, -12, 5 | Output Current: 10.90A, 2A, 0.5A, 5A | Output Power (W): 150 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP415011CA | Input Voltage: 90~264 | Output Voltage: 11, 5, -12, 5 | Output Current: 9.90A, 2A, 0.5A, 5A | Output Power (W): 150 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP415012CA | Input Voltage: 90~264 | Output Voltage: 12, 5, -12, 5 | Output Current: 9.08A, 2A, 0.5A, 5A | Output Power (W): 150 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP415017CA | Input Voltage: 90~264 | Output Voltage: 17, 5, -12, 5 | Output Current: 6.41A, 2A, 0.5A, 5A | Output Power (W): 150 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP415019CA | Input Voltage: 90~264 | Output Voltage: 19, 5, -12, 5 | Output Current: 5.73A, 2A, 0.5A, 5A | Output Power (W): 150 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP415019CB | Input Voltage: 90~264 | Output Voltage: 19, 5, -12, 12, 12 | Output Current: 4.36A, 2A, 0.5A, 5A | Output Power (W): 150 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP415024CA | Input Voltage: 90~264 | Output Voltage: 24, 5, -12, 5 | Output Current: 4.54A, 2A, 0.5A, 5A | Output Power (W): 150 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP415024CB | Input Voltage: 90~264 | Output Voltage: 24, 5, -12, 12 | Output Current: 3.08A, 2A, 0.5A, 5A | Output Power (W): 150 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP215210A0 | Input Voltage: 90~264 | Output Voltage: 10, 5 | Output Current: 14.17A, 2A | Output Power (W): 152 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP215316A0 | Input Voltage: 90~264 | Output Voltage: 16, 5 | Output Current: 8.95A, 2A | Output Power (W): 153 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315316AA | Input Voltage: 90~264 | Output Voltage: 16, 5, 5 | Output Current: 7.37A, 2A, 5A | Output Power (W): 153 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP415316CA | Input Voltage: 90~264 | Output Voltage: 16, 5, -12, 5 | Output Current: 7.00A, 2A, 0.5A, 5A | Output Power (W): 153 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP315817C0 | Input Voltage: 90~264 | Output Voltage: 17, 5, -12 | Output Current: 8.37A, 2A, 0.5A | Output Power (W): 158 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP316017AA | Input Voltage: 90~264 | Output Voltage: 17, 5, 5 | Output Current: 7.37A, 2A, 5A | Output Power (W): 160 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP416017CA | Input Voltage: 90~264 | Output Voltage: 17, 5, -12, 5 | Output Current: 7.00A, 2A, 0.5A, 5A | Output Power (W): 160 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP216317A0 | Input Voltage: 90~264 | Output Voltage: 17, 5 | Output Current: 8.95A, 2A | Output Power (W): 162 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP316211C0 | Input Voltage: 90~264 | Output Voltage: 11, 5, -12 | Output Current: 13.27A, 2A, 0.5A | Output Power (W): 162 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP316222C0 | Input Voltage: 90~264 | Output Voltage: 22, 5, -12 | Output Current: 6.63A, 2A, 0.5A | Output Power (W): 162 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP416222CA | Input Voltage: 90~264 | Output Voltage: 22, 5, -12, 5 | Output Current: 5.50A, 2A, 0.5A, 5A | Output Power (W): 162 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11651100 | Input Voltage: 90~264 | Output Voltage: 11 | Output Current: 15A | Output Power (W): 165 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP316522AB | Input Voltage: 90~264 | Output Voltage: 22, 5, 12 | Output Current: 4.31A, 2A, 5A | Output Power (W): 165 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP216611A0 | Input Voltage: 90~264 | Output Voltage: 11, 5 | Output Current: 14.17A, 2A | Output Power (W): 166 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP216622A0 | Input Voltage: 90~264 | Output Voltage: 22, 5 | Output Current: 7.08A, 2A | Output Power (W): 166 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP416622CA | Input Voltage: 90~264 | Output Voltage: 22, 5, -12, 12 | Output Current: 4.09A, 2A, 0.5A, 5A | Output Power (W): 166 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP316718C0 | Input Voltage: 90~264 | Output Voltage: 18, 5, -12 | Output Current: 8.38A, 2A, 0.5A | Output Power (W): 167 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP416718CA | Input Voltage: 90~264 | Output Voltage: 18, 5, -12, 5 | Output Current: 7.00A, 2A, 0.5A, 5A | Output Power (W): 167 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP316818AA | Input Voltage: 90~264 | Output Voltage: 18, 5, 5 | Output Current: 7.38A, 2A, 5A | Output Power (W): 168 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP316818AB | Input Voltage: 90~264 | Output Voltage: 18, 5, 12 | Output Current: 5.44A, 2A, 5A | Output Power (W): 168 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP316823AA | Input Voltage: 90~264 | Output Voltage: 23, 5, 5 | Output Current: 5.78A, 2A, 5A | Output Power (W): 168 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP316823C0 | Input Voltage: 90~264 | Output Voltage: 23, 5, -12 | Output Current: 6.63A, 2A, 0.5A | Output Power (W): 168 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP416818CA | Input Voltage: 90~264 | Output Voltage: 18, 5, -12, 12 | Output Current: 5.11A, 2A, 0.5A, 5A | Output Power (W): 168 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP416823CA | Input Voltage: 90~264 | Output Voltage: 23, 5, -12, 5 | Output Current: 5.52A, 2A, 0.5A, 5A | Output Power (W): 168 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP316954C0 | Input Voltage: 90~264 | Output Voltage: 54, 5, -12 | Output Current: 3.72A, 2A, 0.5A | Output Power (W): 169 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP217034A0 | Input Voltage: 90~264 | Output Voltage: 34, 5 | Output Current: 4.72A, 2A | Output Power (W): 170 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP317023AB | Input Voltage: 90~264 | Output Voltage: 23, 5, 12 | Output Current: 4.34A, 2A, 5A | Output Power (W): 170 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP217118A0 | Input Voltage: 90~264 | Output Voltage: 18, 5 | Output Current: 8.95A, 2A | Output Power (W): 171 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP417123CA | Input Voltage: 90~264 | Output Voltage: 23, 5, -12, 12 | Output Current: 4.13A, 2A, 0.5A, 5A | Output Power (W): 171 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP317255C0 | Input Voltage: 90~264 | Output Voltage: 55, 5, -12 | Output Current: 2.69A, 2A, 0.5A | Output Power (W): 172 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP217323A0 | Input Voltage: 90~264 | Output Voltage: 23, 5 | Output Current: 7.08A, 2A | Output Power (W): 173 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP217346A0 | Input Voltage: 90~264 | Output Voltage: 46, 5 | Output Current: 3.54A, 2A | Output Power (W): 173 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP217454A0 | Input Voltage: 90~264 | Output Voltage: 54, 5 | Output Current: 3.04A, 2A | Output Power (W): 174 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11751700 | Input Voltage: 90~264 | Output Voltage: 17 | Output Current: 10A | Output Power (W): 175 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP217535A0 | Input Voltage: 90~264 | Output Voltage: 35, 5 | Output Current: 4.72A, 2A | Output Power (W): 175 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP317512AA | Input Voltage: 90~264 | Output Voltage: 12, 5, 5 | Output Current: 11.66A, 2A, 5A | Output Power (W): 175 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP317519AA | Input Voltage: 90~264 | Output Voltage: 19, 5, 5 | Output Current: 7.36A, 2A, 5A | Output Power (W): 175 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP317519AB | Input Voltage: 90~264 | Output Voltage: 19, 5, 12 | Output Current: 5.52A, 2A, 5A | Output Power (W): 175 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP317524AA | Input Voltage: 90~264 | Output Voltage: 24, 5, 5 | Output Current: 5.83A, 2A, 5A | Output Power (W): 175 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP317524AB | Input Voltage: 90~264 | Output Voltage: 24, 5, 12 | Output Current: 4.37A, 2A, 5A | Output Power (W): 175 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP317512C0 | Input Voltage: 90~264 | Output Voltage: 12, 5, -12 | Output Current: 13.25A, 2A, 0.5A | Output Power (W): 175 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP317519C0 | Input Voltage: 90~264 | Output Voltage: 19, 5, -12 | Output Current: 8.36A, 2A, 0.5A | Output Power (W): 175 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP317524C0 | Input Voltage: 90~264 | Output Voltage: 24, 5, -12 | Output Current: 6.62A, 2A, 0.5A | Output Power (W): 175 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP317536C0 | Input Voltage: 90~264 | Output Voltage: 36, 5, -12 | Output Current: 4.41A, 2A, 0.5A | Output Power (W): 175 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP317548C0 | Input Voltage: 90~264 | Output Voltage: 48, 5, -12 | Output Current: 3.54A, 2A, 0.5A | Output Power (W): 175 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP317556C0 | Input Voltage: 90~264 | Output Voltage: 56, 5, -12 | Output Current: 2.63A, 2A, 0.5A | Output Power (W): 175 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP417512CA | Input Voltage: 90~264 | Output Voltage: 12, 5, -12, 5 | Output Current: 11.60A, 2A, 0.5A, 5A | Output Power (W): 175 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP417519CA | Input Voltage: 90~264 | Output Voltage: 19, 5, -12, 5 | Output Current: 7.05A, 2A, 0.5A, 5A | Output Power (W): 175 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP417519CB | Input Voltage: 90~264 | Output Voltage: 19, 5, -12, 12 | Output Current: 5.21A, 2A, 0.5A, 5A | Output Power (W): 175 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP417524CA | Input Voltage: 90~264 | Output Voltage: 24, 5, -12, 5 | Output Current: 5.58A, 2A, 0.5A, 5A | Output Power (W): 175 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP417524CB | Input Voltage: 90~264 | Output Voltage: 24, 5, -12, 12 | Output Current: 4.12A, 2A, 0.5A, 5A | Output Power (W): 175 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP217647A0 | Input Voltage: 90~264 | Output Voltage: 47, 5 | Output Current: 3.54A, 2A | Output Power (W): 176 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP217755A0 | Input Voltage: 90~264 | Output Voltage: 55, 5 | Output Current: 3.03A, 2A | Output Power (W): 177 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11801200 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 15A | Output Power (W): 180 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11801800 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 10A | Output Power (W): 180 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11801900 | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 9.47A | Output Power (W): 180 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11802200 | Input Voltage: 90~264 | Output Voltage: 22 | Output Current: 8.18A | Output Power (W): 180 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11802300 | Input Voltage: 90~264 | Output Voltage: 23 | Output Current: 7.82A | Output Power (W): 180 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11802400 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 7.50A | Output Power (W): 180 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11803400 | Input Voltage: 90~264 | Output Voltage: 34 | Output Current: 5.29A | Output Power (W): 180 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11953500 | Input Voltage: 90~264 | Output Voltage: 35 | Output Current: 5.57A | Output Power (W): 180 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11803600 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 5A | Output Power (W): 180 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11804600 | Input Voltage: 90~264 | Output Voltage: 46 | Output Current: 3.91A | Output Power (W): 180 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11804700 | Input Voltage: 90~264 | Output Voltage: 47 | Output Current: 3.83A | Output Power (W): 180 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11804800 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 3.75A | Output Power (W): 180 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11805400 | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 3.33A | Output Power (W): 180 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11805500 | Input Voltage: 90~264 | Output Voltage: 55 | Output Current: 3.27A | Output Power (W): 180 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP11805600 | Input Voltage: 90~264 | Output Voltage: 56 | Output Current: 3.21A | Output Power (W): 180 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP218012A0 | Input Voltage: 90~264 | Output Voltage: 12, 5 | Output Current: 14.16A, 2A | Output Power (W): 180 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP218019A0 | Input Voltage: 90~264 | Output Voltage: 19, 5 | Output Current: 8.94A, 2A | Output Power (W): 180 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP218024A0 | Input Voltage: 90~264 | Output Voltage: 24, 5 | Output Current: 7.08A, 2A | Output Power (W): 180 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP218036A0 | Input Voltage: 90~264 | Output Voltage: 36, 5 | Output Current: 4.72A, 2A | Output Power (W): 180 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP218048A0 | Input Voltage: 90~264 | Output Voltage: 48, 5 | Output Current: 3.54A, 2A | Output Power (W): 180 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP218056A0 | Input Voltage: 90~264 | Output Voltage: 56, 5 | Output Current: 3.03A, 2A | Output Power (W): 180 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP218012B0 | Input Voltage: 90~264 | Output Voltage: 12, -12 | Output Current: 14.50A, 0.5A | Output Power (W): 180 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP218019B0 | Input Voltage: 90~264 | Output Voltage: 19, -12 | Output Current: 9.15A, 0.5A | Output Power (W): 180 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP218024B0 | Input Voltage: 90~264 | Output Voltage: 24, -12 | Output Current: 7.25A, 0.5A | Output Power (W): 180 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP218024DB | Input Voltage: 90~264 | Output Voltage: 24, 12 | Output Current: 6.00A, 3A | Output Power (W): 180 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP218036B0 | Input Voltage: 90~264 | Output Voltage: 36, -12 | Output Current: 4.83A, 0.5A | Output Power (W): 180 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP218048B0 | Input Voltage: 90~264 | Output Voltage: 48, -12 | Output Current: 3.62A, 0.5A | Output Power (W): 180 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP218056B0 | Input Voltage: 90~264 | Output Voltage: 56, -12 | Output Current: 3.10A, 0.5A | Output Power (W): 180 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP12001900 | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 10.52A | Output Power (W): 200 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP12002400 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 8.33A | Output Power (W): 200 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP12003600 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 5.56A | Output Power (W): 200 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP12004800 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 4.16A | Output Power (W): 200 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| PSEP12005600 | Input Voltage: 90~264 | Output Voltage: 56 | Output Current: 3.57A | Output Power (W): 200 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.43" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Output | |
| Output Voltage: | -12, 5, 9, 10, 11, 12, 15, 16, 17, 18, 19, 22, 23, 24, 34, 35, 36, 46, 47, 48, 54, 55, 56 |
| Output Current: | 0.5A, 2A, 2.48A, 2.49A, 2.5A, 2.57A, 2.59A, 2.63A, 2.67A, 2.69A, 2.72A, 2.77A, 2.79A, 2.85A, 2.87A, 2.89A, 2.291A, 2.97A, 3A, 3.03A, 3.04A, 3.08A, 3.1A, 3.12A, 3.19A, 3.21A, 3.22A, 3.26A, 3.27A, 3.33A, 3.54A, 3.57A, 3.62A, 3.64A, 3.72A, 3.75A, 3.82A, 3.83A, 3.85A, 3.88A, 3.91A, 3.94A, 4A, 4.09A, 4.11A, 4.12A, 4.13A, 4.16A, 4.21A, 4.28A, 4.31A, 4.34A, 4.36A, 4.37A, 4.41A, 4.5A, 4.52A, 4.54A, 4.72A, 4.77A, 4.78A, 4.79A, 4.83A, 5A, 5.11A, 5.21A, 5.22A, 5.29A, 5.39A, 5.4A, 5.44A, 5.5A, 5.52A, 5.56A, 5.57A, 5.58A, 5.68A, 5.72A, 5.73A, 5.78A, 5.8A, 5.81A, 5.82A, 5.83A, 5.88A, 5.94A, 6A, 6.05A, 6.08A, 6.13A, 6.25A, 6.41A, 6.52A, 6.62A, 6.63A, 6.81A, 6.93A, 7A, 7.05A, 7.08A, 7.25A, 7.31A, 7.33A, 7.35A, 7.36A, 7.37A, 7.38A, 7.4A, 7.5A, 7.57A, 7.81A, 7.82A, 7.89A, 8.18A, 8.23A, 8.33A, 8.36A, 8.37A, 8.38A, 8.4A, 8.9A, 8.94A, 8.95A, 9A, 9.08A, 9.15A, 9.37A, 9.47A, 9.5A, 9.54A, 9.58A, 9.9A, 10A, 10.45A, 10.52A, 10.81A, 10.9A, 11.16A, 11.36A, 11.5A, 11.6A, 11.63A, 11.66A, 11.67A, 12A, 12.22A, 12.5A, 13.25A, 13.27A, 13.3A, 14.16A, 14.17A, 14.5A, 15A, 18A, 20A |
| Output Power (Watts): | 100, 115, 120, 122, 125, 126, 127, 128, 130, 132, 135, 138, 140, 141, 142, 143, 144, 145, 146, 147, 149, 150, 152, 153, 158, 160, 162, 165, 166, 167, 168, 169, 170, 171, 172, 173, 174, 175, 176, 177, 180, 200 |
| Short Circuit Protection: | Latch Off |
| Over Voltage Protection: | Latch Off |
| General | |
| Efficiency: | ≤85% |
| Environmental | |
| Operating Temperature: | 0 to 50ºC |
| Storage Temperature: | -20 to 85ºC |
| Physical | |
| Weight: | 15.87oz (450g) |

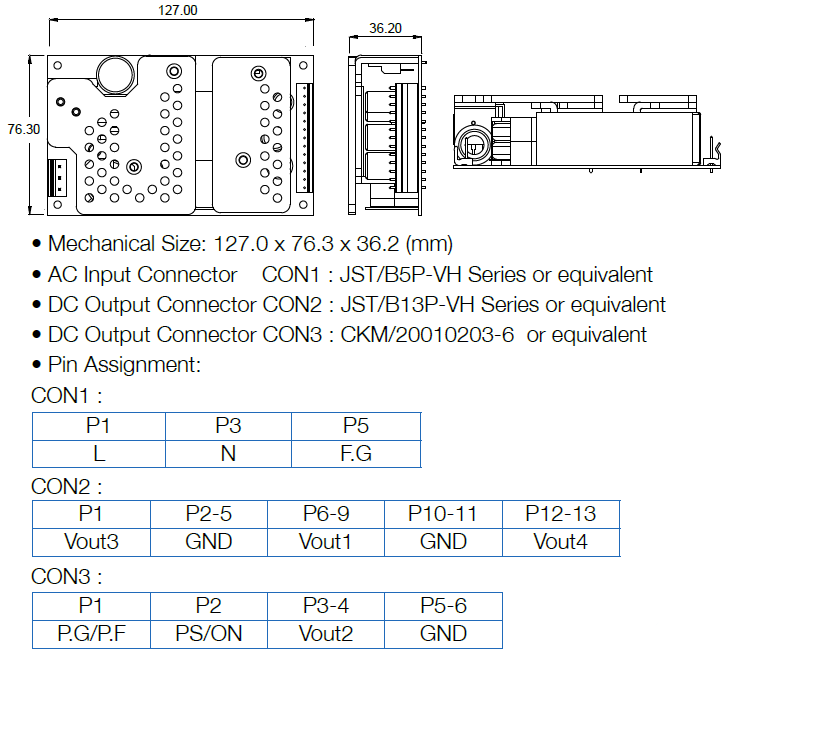

| Dimensions: | 5in x 3in x 1.43in (127mm x 76.30mm x 36.20mm) |
| Notes & safety | |
| Notes: | NOTES 1. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1µF ceramic capacitor & parallel with 47µF aluminum capacitor at full load and nominal line. 2. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 3. Certificates listed are for reference, please contact factory for more information. 4. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/CUL, CB, CE, FCC |
| RoHS Compliance: | Yes |
Get a Quote
Request information for from Wall Industries.
"*" indicates required fields
Medical Power Supplies
Military Power Supplies
Railway Power Converters
Lighting Power Supplies
Industrial Power Supplies
Level VI Power Supplies
Custom Solutions
Wall Industries, Inc. offers fully custom power design capabilities. Our team of electrical and mechanical power design engineers will utilize proven design topologies and concepts to create a solution to your power requirements. If you don’t have a specification, Wall’s engineering team will assist you in determining what your requirements are and how best to provide a solution.
Custom Power Supplies
