DTMPU101
The DTMPU101 series of class I medical AC/DC desktop power supplies provides up to 100 Watts of continuous output power in a 7.44” x 3.52” x 1.79” package. This series consists of single, dual, and triple output models with a wide input voltage range of 90~260VAC. Some features include high efficiency up to 88%, 2MOPP insulation, ultra-low leakage current < 0.1mA, and over current and over voltage protection. All models meet FCC Part-18 class B and CISPR-11 EN55011 class B emission limits. This series also has ANSI/AAMI ES 60601-1: 2005 (UL/cUL 3rd edition) and EN 60601-1:2006 (TUV/T-mark 3rd edition) medical approvals. All models are RoHS compliant and have been 100% burn-in tested.
• Class I
• RoHS Compliant
• Input to Output: 2MOPP
• Up to 88% High Efficiency
• IEC-320-C14 AC Inlet
• Active Power Factor Correction
• Free Air Convection Cooling
• Ultra-low Leakage Current < 0.1mA
• Up to 100 Watts Output Power
• Single, Dual, and Triple Outputs
• 90-260VAC Input Voltage Range
• Over Current and Over Voltage Protection
• ANSI/AAMI ES 60601-1: 2005 (UL/cUL 3rd Edition), EN 60601-1:2006 (TUV/T-mark 3rd Edition) Safety Approvals
• Optional ON/OFF Switch
• Optional Output Connectors Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTMPU101-204 | Input Voltage: 90~260 | Output Voltage: 3.3, 5 | Output Current: 10A, 5A | Output Power (W): 55 | No. Outputs: D | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-308 | Input Voltage: 90~260 | Output Voltage: 3.3, 5, -12 | Output Current: 10A, 3A, 1A | Output Power (W): 60 | No. Outputs: T | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-308-1 | Input Voltage: 90~260 | Output Voltage: 3.3, 5, 12 | Output Current: 10A, 3A, 1A | Output Power (W): 60 | No. Outputs: T | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-200 | Input Voltage: 90~260 | Output Voltage: 3.3, 12 | Output Current: 10A, 3A | Output Power (W): 69 | No. Outputs: D | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-102 | Input Voltage: 90~260 | Output Voltage: 5~6 | Output Current: 14.00 ~ 11.66 A | Output Power (W): 70 | No. Outputs: S | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-215 | Input Voltage: 90~260 | Output Voltage: 5, -24 | Output Current: 10A, 1A | Output Power (W): 74 | No. Outputs: D | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-300 | Input Voltage: 90~260 | Output Voltage: 3.3, 12, -12 | Output Current: 10A, 3A, 1A | Output Power (W): 74 | No. Outputs: T | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-300-1 | Input Voltage: 90~260 | Output Voltage: 3.3, 12, 12 | Output Current: 10A, 3A, 1A | Output Power (W): 74 | No. Outputs: T | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-306 | Input Voltage: 90~260 | Output Voltage: 3.3, 12, -5 | Output Current: 10A, 3A, 1A | Output Power (W): 74 | No. Outputs: T | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-306-1 | Input Voltage: 90~260 | Output Voltage: 3.3, 12, 5 | Output Current: 10A, 3A, 1A | Output Power (W): 74 | No. Outputs: T | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-103 | Input Voltage: 90~260 | Output Voltage: 6~8 | Output Current: 13.33 ~ 10.00 A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-201 | Input Voltage: 90~260 | Output Voltage: 5, 12 | Output Current: 10A, 3A | Output Power (W): 80 | No. Outputs: D | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-202 | Input Voltage: 90~260 | Output Voltage: 5, 15 | Output Current: 10A, 3A | Output Power (W): 80 | No. Outputs: D | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-203 | Input Voltage: 90~260 | Output Voltage: 5, 24 | Output Current: 10A, 2A | Output Power (W): 80 | No. Outputs: D | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-209 | Input Voltage: 90~260 | Output Voltage: 12, -12 | Output Current: 7A, 1A | Output Power (W): 80 | No. Outputs: D | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-210 | Input Voltage: 90~260 | Output Voltage: 15, -15 | Output Current: 6A, 1A | Output Power (W): 80 | No. Outputs: D | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-212 | Input Voltage: 90~260 | Output Voltage: 24, -24 | Output Current: 3A, 1A | Output Power (W): 80 | No. Outputs: D | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-301 | Input Voltage: 90~260 | Output Voltage: 5, 12, -5 | Output Current: 10A, 3A, 1A | Output Power (W): 80 | No. Outputs: T | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-301-1 | Input Voltage: 90~260 | Output Voltage: 5, 12, 5 | Output Current: 10A, 3A, 1A | Output Power (W): 80 | No. Outputs: T | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-302 | Input Voltage: 90~260 | Output Voltage: 5, 12, -12 | Output Current: 10A, 3A, 1A | Output Power (W): 80 | No. Outputs: T | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-302-1 | Input Voltage: 90~260 | Output Voltage: 5, 12, 12 | Output Current: 10A, 3A, 1A | Output Power (W): 80 | No. Outputs: T | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-303 | Input Voltage: 90~260 | Output Voltage: 5, 15, -15 | Output Current: 10A, 3A, 1A | Output Power (W): 80 | No. Outputs: T | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-303-1 | Input Voltage: 90~260 | Output Voltage: 5, 15, 15 | Output Current: 10A, 3A, 1A | Output Power (W): 80 | No. Outputs: T | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-304 | Input Voltage: 90~260 | Output Voltage: 5, 24, -24 | Output Current: 10A, 3A, 1A | Output Power (W): 80 | No. Outputs: T | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-304-1 | Input Voltage: 90~260 | Output Voltage: 5, 24, 24 | Output Current: 10A, 3A, 1A | Output Power (W): 80 | No. Outputs: T | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-305 | Input Voltage: 90~260 | Output Voltage: 5, 24, -12 | Output Current: 10A, 3A, 1A | Output Power (W): 80 | No. Outputs: T | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-305-1 | Input Voltage: 90~260 | Output Voltage: 5, 24, 12 | Output Current: 10A, 3A, 1A | Output Power (W): 80 | No. Outputs: T | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-104 | Input Voltage: 90~260 | Output Voltage: 8~11 | Output Current: 11.25 ~ 8.20 A | Output Power (W): 90 | No. Outputs: S | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-105 | Input Voltage: 90~260 | Output Voltage: 11~13 | Output Current: 8.33 ~ 7.70 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-106 | Input Voltage: 90~260 | Output Voltage: 13~16 | Output Current: 7.70 ~ 6.30 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-107 | Input Voltage: 90~260 | Output Voltage: 16~21 | Output Current: 6.30 ~ 4.80 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-108 | Input Voltage: 90~260 | Output Voltage: 21~27 | Output Current: 4.80 ~ 3.70 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-109 | Input Voltage: 90~260 | Output Voltage: 27~33 | Output Current: 3.70 ~ 3.00 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU101-110 | Input Voltage: 90~260 | Output Voltage: 33~40 | Output Current: 3.00 ~ 2.50 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~260 |
| PFC: | >0.95 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 3.3, 5, -5, 12, -12, 15, -15, 24, -24 |
| Output Current: | 10A, 6A, 5A, 3A, 1A, 14~11.66A, 13.33~10A, 11.25~8.2A, 8.33A~7.7A, 7.7~6.3A, 6.3~4.8A, 4.8~3.7A, 3.7~3A, 3~2.5A |
| Output Power (Watts): | 55, 60, 69, 70, 74, 80, 90, 100 |
| Over Voltage Protection: | 112-132% |
| General | |
| Efficiency: | 75-88% |
| Isolation: | 6932VDC |
| Environmental | |

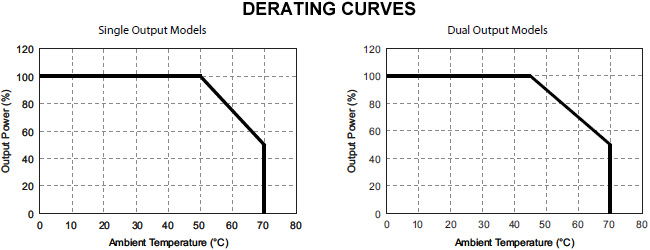

| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 1.72~1.76lbs |

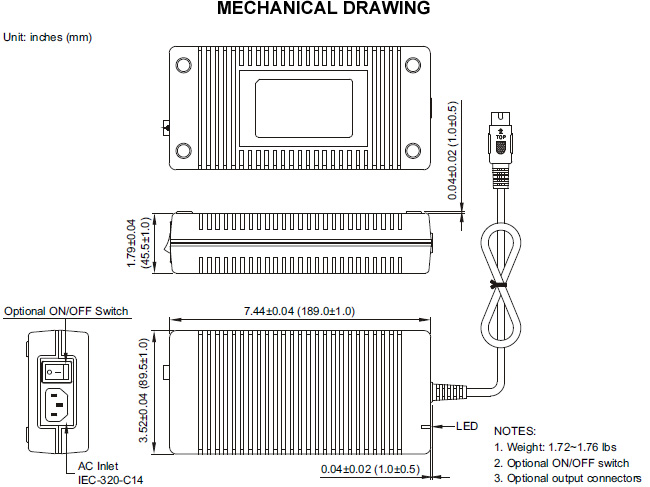

| Dimensions: | 7.44" x 3.52" x 1.79" (189.0 x 89.5 x 45.5 mm) |
| Notes & safety | |
| Notes: | 1. For single output models the output voltage is specified as a range (ex: 33~40VDC); the customer must specify what they would like the output voltage set at. 2. Optional ON/OFF switch is available for this series. Please call factory for ordering details. 3. Optional output connectors available. Please call factory for ordering details. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | ANSI/AAMI ES 60601-1: 2005 (UL/cUL 3rd Edition), EN 60601-1:2006 (TUV/T-mark 3rd Edition) |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | EN 60601-1:2006 (TUV/T-mark 3rd edition) |
