DTEM1024
The DTEM1024 series of medical AC/DC desktop power supplies provides up to 36 Watts of continuous output power in a 3.62” x 1.79” x 1.23” package. All models have a single output and a wide input voltage range of 100~240VAC. This series is RoHS compliant and meets CEC Level V, VI requirements. This series also has UL/cUL UL 60601 safety approvals (Class I), and UL/cUL UL60601, TUV EN60601, CB IEC60601, CE, FCC safety approvals (Class II). All models are protected against short circuit and over voltage conditions. Four AC inlet connector types are available for this series: IEC-320-C14, IEC-320-C8, IEC-320-C6, and IEC-320-C18. Optional output connectors are also available please call factory for ordering details.
• Single Outputs
• RoHS Compliant
• Efficiency Meets CEC Level V, VI (DoE)
• Short Circuit & Over Voltage Protection
• IEC-320-C14, IEC-320-C8, IEC-320-C6, & IEC-320-C18 AC Inlets Available
• MTBF > 100,000 Hours
• 100~240VAC Input Range
• Class I: UL/cUL UL 60601 Safety Approvals
• Class II: UL/cUL UL60601, TUV EN60601, CB IEC60601, CE, FCC Safety Approvals
• Optional Output Connectors Available
Part Number Setup:
X: "1" for IEC-320-C14 AC Inlet, "2" for IEC-320-C8 AC Inlet, "3" for IEC-320-C6 AC Inlet, or "6" for IEC-320-C18 AC Inlet
X: "1" for IEC-320-C14 AC Inlet, "2" for IEC-320-C8 AC Inlet, "3" for IEC-320-C6 AC Inlet, or "6" for IEC-320-C18 AC Inlet
Example:
DTEM1024F1 = DTEM1024F with IEC-320-C14 AC Inlet
DTEM1024F1 = DTEM1024F with IEC-320-C14 AC Inlet
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|

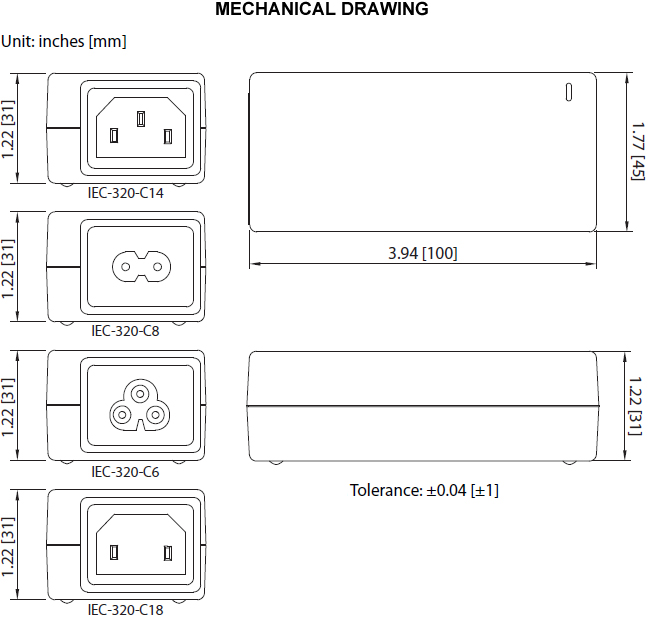

| DTEM1024Ax | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 2.0A | Output Power (W): 16 | No. Outputs: S | Case: Desktop | Size: 3.94" x 1.77" x 1.22" | Get a Quote |
| DTEM1024Dx | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 1.5A | Output Power (W): 18 | No. Outputs: S | Case: Desktop | Size: 3.94" x 1.77" x 1.22" | Get a Quote |
| DTEM1024Bx | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 3.0A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Size: 3.94" x 1.77" x 1.22" | Get a Quote |
| DTEM1024Gx | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 1.66A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Size: 3.94" x 1.77" x 1.22" | Get a Quote |
| DTEM1024Mx | Input Voltage: 100~240 | Output Voltage: 36~48 | Output Current: 0.55A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Size: 3.94" x 1.77" x 1.22" | Get a Quote |
| DTEM1024Cx | Input Voltage: 100~240 | Output Voltage: 5~8 | Output Current: 4.0A | Output Power (W): 24 | No. Outputs: S | Case: Desktop | Size: 3.94" x 1.77" x 1.22" | Get a Quote |
| DTEM1024Ex | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 2.0A | Output Power (W): 24 | No. Outputs: S | Case: Desktop | Size: 3.94" x 1.77" x 1.22" | Get a Quote |
| DTEM1024Jx | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 1.33A | Output Power (W): 24 | No. Outputs: S | Case: Desktop | Size: 3.94" x 1.77" x 1.22" | Get a Quote |
| DTEM1024Qx | Input Voltage: 100~240 | Output Voltage: 12 | Output Current: 2.0A | Output Power (W): 24 | No. Outputs: S | Case: Desktop | Size: 3.94" x 1.77" x 1.22" | Get a Quote |
| DTEM1024Fx | Input Voltage: 100~240 | Output Voltage: 9~11 | Output Current: 3.0A | Output Power (W): 27 | No. Outputs: S | Case: Desktop | Size: 3.94" x 1.77" x 1.22" | Get a Quote |
| DTEM1024Hx | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 3.94" x 1.77" x 1.22" | Get a Quote |
| DTEM1024Kx | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 1.66A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 3.94" x 1.77" x 1.22" | Get a Quote |
| DTEM1024Nx | Input Voltage: 100~240 | Output Voltage: 36~48 | Output Current: 0.83A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 3.94" x 1.77" x 1.22" | Get a Quote |
| DTEM1024Px | Input Voltage: 100~240 | Output Voltage: 12 | Output Current: 3.0A | Output Power (W): 36 | No. Outputs: S | Case: Desktop | Size: 3.94" x 1.77" x 1.22" | Get a Quote |
| DTEM1024Rx | Input Voltage: 100~240 | Output Voltage: 24 | Output Current: 1.5A | Output Power (W): 36 | No. Outputs: S | Case: Desktop | Size: 3.94" x 1.77" x 1.22" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50/60Hz |
| Output | |
| Output Voltage: | 5~8, 9~11, 12, 12~17, 18~24, 24, 36~48 |
| Output Current: | 0.83A, 0.55A, 1.5A, 1.66A, 1.33A, 2.5A, 2A, 3A, 1.5A, 4A |
| Output Power (Watts): | 16, 18, 20, 24, 27, 30, 36 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 7.05 oz. |

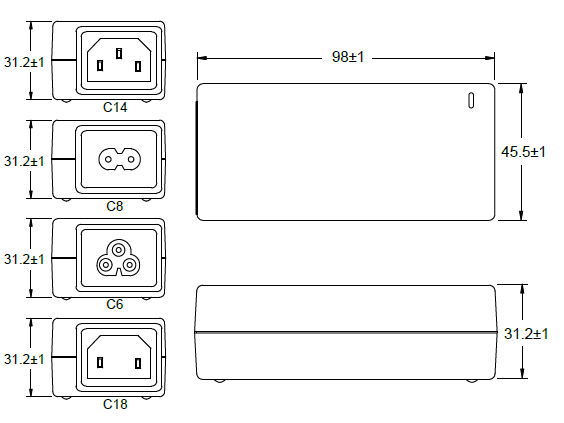

| Dimensions: | 3.62" x 1.79" x 1.23" (98mm x 45.5mm x 31.2mm) |
| Notes & safety | |
| Notes: | 1. The “x” in the model number represents the type of AC inlet connector: “x” can be “1” for IEC-320-C14 type, “2” for IEC-320-C8 type, “3” for IEC-320-C6, or “6” for IEC-320-C18 type. 2. The output voltage is specified as a range (Ex: 36~48 VDC); the customer must specify what they want the voltage set at. 3. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 4. Ripple and Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. 5. LED option available according to customer needs. 6. Optional output connectors are available. Please call factory for ordering details. 7. Certificates listed are for reference only. Please contact factory for more details. 8. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | Class I: UL/cUL UL 60601 Class II: UL/cUL UL60601, TUV EN60601, CB IEC60601, CE, FCC |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level V, VI |
