DTEA1151
The DTEA1151 series of AC/DC desktop power supplies offers up to 150 watts of output power in a 5.79” x 2.38” x 0.87” package. This series consists of single output models with an input voltage range of 100 to 240VAC. Each model in this series is RoHS compliant, DoE Level VI compliant, and has over voltage, over current, over temperature and short circuit protection. This series has UL/cUL, CB, CE, FCC, and CCC safety approvals. Please call factory for order details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTEA11513A | Input Voltage: 100~240 | Output Voltage: 12~16 | Output Current: 10A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 5.79" x 2.38" x 0.87" | Get a Quote |
| DTEA11513C | Input Voltage: 100~240 | Output Voltage: 19~24 | Output Current: 6.31A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 5.79" x 2.38" x 0.87" | Get a Quote |
| DTEA11513B | Input Voltage: 100~240 | Output Voltage: 12~16 | Output Current: 10.83A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 5.79" x 2.38" x 0.87" | Get a Quote |
| DTEA11513D | Input Voltage: 100~240 | Output Voltage: 19~24 | Output Current: 6.84A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 5.79" x 2.38" x 0.87" | Get a Quote |
| DTEA11513E | Input Voltage: 100~240 | Output Voltage: 19~24 | Output Current: 7.36A | Output Power (W): 140 | No. Outputs: S | Case: Desktop | Size: 5.79" x 2.38" x 0.87" | Get a Quote |
| DTEA11513F | Input Voltage: 100~240 | Output Voltage: 19~24 | Output Current: 7.89A | Output Power (W): 150 | No. Outputs: S | Case: Desktop | Size: 5.79" x 2.38" x 0.87" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Output | |
| Output Voltage: | 12~16, 19~24 |
| Output Current: | 10A, 10.83A, 6.31A, 6.84A, 7.36A, 7.89A |
| Output Power (Watts): | 120, 130, 140, 150 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch Off |
| Thermal Protection: | Latch Mode |
| General | |
| Efficiency: | 88% |
| Environmental | |
| Operating Temperature: | 0 to 40ºC |
| Storage Temperature: | -20 to 85ºC |
| Physical | |
| Weight: | 16.23oz (460g) |

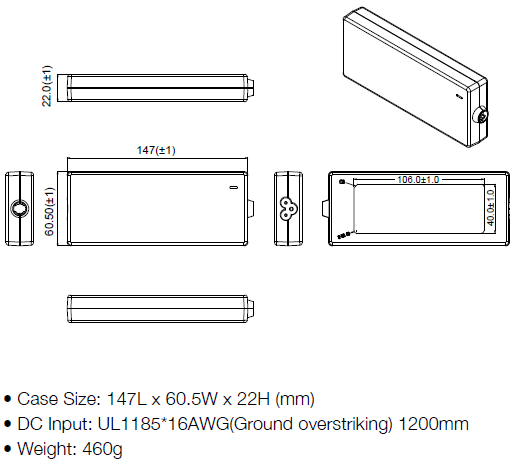

| Dimensions: | 5.79in x 2.38in x 0.87in |
| Notes & safety | |
| Notes: | 1. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 2. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor ate full load and nominal line. 3. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, CB, CE, FCC, CCC |
| RoHS Compliance: | Yes |
