DCHPW2000
The DCHPW2000 series of DC/DC converters offers 2000 watts of output power in a 4.6in x 2.4in x 0.55in full-brick package. This series consists of single output models with either 180-425VDC or 380-850VDC input range. Each model in this series offers high efficiency up to 96% and over current, over voltage, over temperature, and short circuit protection. This series is CE marked, RoHS5 compliant, and has UL/IEC/EN60950/GB4943 safety approvals. This series is suited for applications like telecom, defense, industrial control and other high reliability electronic equipment.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCHPW2000-270S24 | Input Voltage: 270 | Output Voltage: 24 | Output Current: 83.33A | Output Power (W): 2000 | No. Outputs: S | Case: Enclosed | Size: 4.6in x 2.4in x 0.55in | Get a Quote |
| DCHPW2000-270S28 | Input Voltage: 270 | Output Voltage: 28 | Output Current: 71.42A | Output Power (W): 2000 | No. Outputs: S | Case: Enclosed | Size: 4.6in x 2.4in x 0.55in | Get a Quote |
| DCHPW2000-270S36 | Input Voltage: 270 | Output Voltage: 36 | Output Current: 55.55 | Output Power (W): 2000 | No. Outputs: S | Case: Enclosed | Size: 4.6in x 2.4in x 0.55in | Get a Quote |
| DCHPW2000-270S48 | Input Voltage: 270 | Output Voltage: 48 | Output Current: 41.67A | Output Power (W): 2000 | No. Outputs: S | Case: Enclosed | Size: 4.6in x 2.4in x 0.55in | Get a Quote |
| DCHPW2000-270S60 | Input Voltage: 270 | Output Voltage: 60 | Output Current: 33.33 | Output Power (W): 2000 | No. Outputs: S | Case: Enclosed | Size: 4.6in x 2.4in x 0.55in | Get a Quote |
| DCHPW2000-540S24 | Input Voltage: 540 | Output Voltage: 24 | Output Current: 83.33 | Output Power (W): 2000 | No. Outputs: S | Case: Enclosed | Size: 4.6in x 2.4in x 0.55in | Get a Quote |
| DCHPW2000-540S28 | Input Voltage: 540 | Output Voltage: 28 | Output Current: 71.42A | Output Power (W): 2000 | No. Outputs: S | Case: Enclosed | Size: 4.6in x 2.4in x 0.55in | Get a Quote |
| DCHPW2000-540S36 | Input Voltage: 540 | Output Voltage: 36 | Output Current: 55.55A | Output Power (W): 2000 | No. Outputs: S | Case: Enclosed | Size: 4.6in x 2.4in x 0.55in | Get a Quote |
| DCHPW2000-540S48 | Input Voltage: 540 | Output Voltage: 48 | Output Current: 41.67A | Output Power (W): 2000 | No. Outputs: S | Case: Enclosed | Size: 4.6in x 2.4in x 0.55in | Get a Quote |
| DCHPW2000-540S60 | Input Voltage: 540 | Output Voltage: 60 | Output Current: 33.33A | Output Power (W): 2000 | No. Outputs: S | Case: Enclosed | Size: 4.6in x 2.4in x 0.55in | Get a Quote |
| DCHPW2000-540S72 | Input Voltage: 540 | Output Voltage: 72 | Output Current: 27.78A | Output Power (W): 2000 | No. Outputs: S | Case: Enclosed | Size: 4.6in x 2.4in x 0.55in | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 270, 540 |
| Input Voltage Range: | 180~425, 380~850 |
| UVLO: | See Data Sheet |
| Output | |
| Output Voltage: | 24, 28, 36, 48, 60. 72 |
| Voltage Accuracy: | ±1% |
| Output Current: | 83.33A, 71.42A, 55.55A, 41.67A, 33.33A, 27.78A |
| Output Power (Watts): | 2000 |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | Yes |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 96% |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 8.82~9.17oz (250~260g) |

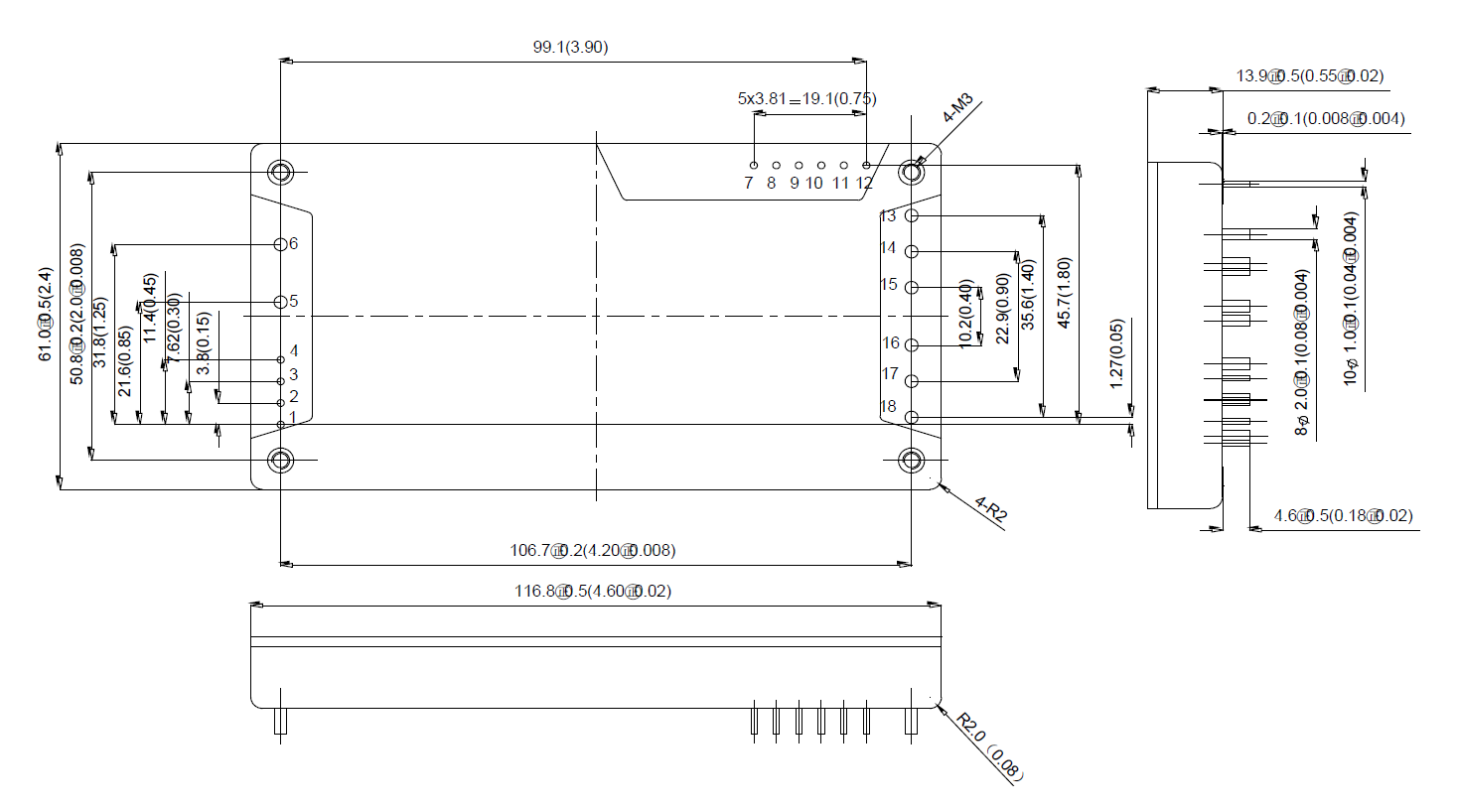

| Dimensions: | 4.6in x 2.4in x 0.55in (116.8mm x 61mm x 13.9mm) |
| Notes & safety | |
| Safety Approvals: | UL 60950-1, C22.2 NO. 60950-1, EN 60950-1, IEC 60950-1, EN 60950-1, GB 4943, C22.2 NO. 60950-1 |
| RoHS Compliance: | RoHS5 |
