Introducing ELANE-6KV: A high isolation, industrial DC/DC converter

Wall Industries introduces ELANE-6KV: a series of high isolation DC/DC Converters

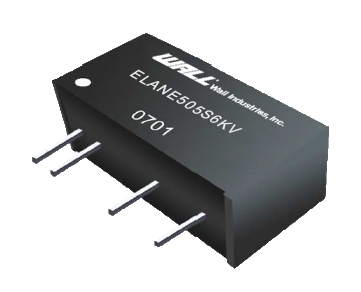

The new series ELANE-6KV has just been introduced by Wall Industries. This is a 1 watt series of DC/DC converters that offers 6KV isolation in a 0.77” x 0.28” x 0.39” SIP package. Both single and dual unregulated output models are available with either 3.3VDC, 5VDC, 9VDC, 12VDC, 15VDC, or 24VDC nominal input options.

The ELANE-6KV series has several stand-out features. Not only does it have internal SMD construction, but it also has 7 pins and short circuit protection. This series is RoHS compliant and features UL60950-1 approval for several models. For full series details, visit the ELANE-6KV series page.


Model Table for ELANE-6KV

Model Number Input Voltage Range Output Voltage Output Current Ripple & Noise Efficiency Output Power
ELANEx05S6KV See Below Note 5V 200mA 100mVp-p 70% 1 Watt
ELANEx09S6KV 9V 112mA 75%
ELANEx12S6KV 12V 84mA 78%
ELANEx15S6KV 15V 67mA 80%
ELANEx24S6KV 24V 42mA 82%


Model Number Input Voltage Range Output Voltage Output Current Ripple & Noise Efficiency Output Power
ELANEx05D6KV See Below Note ±5VDC ±100mA 100mVp-p 70% 1 Watt
ELANEx09D6KV ±9VDC ±56mA 75%
ELANEx12D6KV ±12VDC ±42mA 78%
ELANEx15D6KV ±15VDC ±34mA 80%
ELANEx24D6KV ±24VDC ±21mA 82%

Note: X in Model Number Indicates Input:
3 for 3.3VDC (2.97~3.63VDC)
5 for 5VDC (4.5~5.5VDC)
9 for 9VDC (8.1~9.9VDC)
12 for 12VDC (10.8~13.2VDC)
15 for 15VDC (13.5~16.5VDC)
24 for 24VDC (21.6~26.4VDC)

Looking for other high isolation or industrial DC/DC converters? We have a variety of DC/DC converters including our GA6KV series that offers up to 2 watts of output power and 6KV isolation.

Check out all our high isolation and industrial products:

Browse High Isolation Products Browse Industrial Products

Custom Solutions

Wall Industries, Inc. offers fully custom power design capabilities. Our team of electrical and mechanical power design engineers will utilize proven design topologies and concepts to create a solution to your power requirements. If you don’t have a specification, Wall’s engineering team will assist you in determining what your requirements are and how best to provide a solution.
