GA6KV
The GA6KV Series are 2W DC/DC converters that are specially designed to provide ultra-high levels of isolation 6000VDC in a low-profile DIP package. This series consists of 18 models with input voltages of 5V, 12V and 24VDC which offers regulated output voltages of 5V, 12V, and 15VDC in both single and dual output configurations.
● Low Cost
● 6000VDC Isolation
● Regulated Outputs
● Low Leakage Current
● MTBF > 600,000 Hours
● Input: 5, 12, and 24VDC
● Short Circuit Protection
● Low Isolation Capacitance
● Complies with EN55022 Class A
● Output: 5, 12, 15, ±5, ±12, and ±15VDC
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| GA1205RD6KV | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| GA2405RD6KV | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| GA505RD6KV | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| GA1205R6KV | Input Voltage: 12 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| GA1212R6KV | Input Voltage: 12 | Output Voltage: 12 | Output Current: 165mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| GA1212RD6KV | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| GA1215R6KV | Input Voltage: 12 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| GA1215RD6KV | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±66mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| GA2405R6KV | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| GA2412R6KV | Input Voltage: 24 | Output Voltage: 12 | Output Current: 165mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| GA2412RD6KV | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| GA2415R6KV | Input Voltage: 24 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| GA2415RD6KV | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±66mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| GA505R6KV | Input Voltage: 5 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| GA512R6KV | Input Voltage: 5 | Output Voltage: 12 | Output Current: 165mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| GA512RD6KV | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| GA515R6KV | Input Voltage: 5 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| GA515RD6KV | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±66mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 24 |
| Input Voltage Range: | 10.8~13.2, 21.6~26.4, 4.5~5.5 |
| Input Filter: | Pi Filter |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 5, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±2% |
| Output Current: | 400mA, ±100mA, 165mA, ±83mA, 133mA, ±66mA |
| Output Power (Watts): | 1, 2 |
| Short Circuit Protection: | Continuous |
| General | |
| Efficiency: | Up to 64% |
| Isolation: | 6000VDC |
| Environmental | |

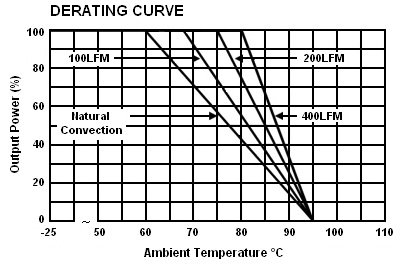

| Operating Temperature: | -25 to 60°C |
| Storage Temperature: | -40 to 125°C |
| Physical | |
| Weight: | 0.44 oz. |

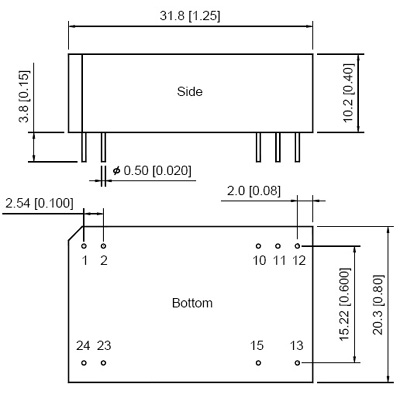

| Dimensions: | 1.25in. × 0.8in. × 0.4in. |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. Specifications typical at Ta=+25°C, resistive load, nominal input voltage, rated output current unless otherwise noted. 2. Transient recovery time is measured to within 1% error band for a step change in output load of 50% to 100%. 3. Ripple & Noise measurement bandwidth is 0-20 MHz. 4. All DC/DC converters should be externally fused on the front end for protection. 5. Other input and output voltage may be available, please contact factory. 6. Specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
