Wall’s Newest PSDAL Family of AC/DC Supplies Will Replace the PSLH Series

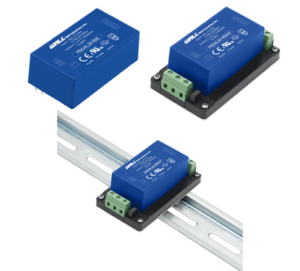

Wall’s PSDAL Family Offers Through Hole, Chassis Mount, and DIN Rail Models Ranging from 5 to 30 Watts

Wall Industries Inc. has released 5 new series to make up the PSDAL family of AC/DC supplies. Each series features through hole, chassis mount, and DIN rail single output models that range from 5 to 30 watts of output power. This new product family will replace the PSLH series of products.

This new PSDAL family features products with a wide input range from 85~305VAC (100-430VDC), 4000VAC isolation, wide temperature range, and compact size. This makes it ideal for EV and industrial applications. Additional features of each series are as follows:

Wall’s Newest PSDAL Family of AC/DC Supplies Will Replace the PSLH Series

PSDAL Family

Series Name Watts Input Voltage Range Output Range (VDC) Temp. Range Through Hole Package Dimensions Through Hole Package Weight Safety Certification

PSDAL05

5W 85~305VAC (100-430VDC) 3.3V, 5V, 9V, 12V, 15V, 24V -40 to +85°C 1” x 1” x 0.69” 0.63-0.65oz (18-18.5g)

IEC/EN/UL62368/
EN60335/EN61558

PSDAL10 8.6-10W 3.3V, 5V, 9V, 12V, 15V, 24V 1.56” x 1” x 1.17” 1.2oz (34g) IEC/UL62368-1, EN61558, EN60335-1 & EN62368-1 (Report)
PSDAL15 13.2-15W 3.3V, 5V, 9V, 12V, 15V, 24V 1.87” x 1.06” x 0.93” 1.69oz (48g) IEC/UL62368-1, EN61558-1, EN60335-1 & EN62368-1 (Report)
PSDAL20 14.85-20W 3.3V, 5V, 9V, 12V, 15V, 24V 2.06” x 1.07” x 0.95” 1.94oz (55g) IEC/ UL62368-1, EN61558-1, EN60335-1 & EN62368-1 (report)
PSDAL30 19.8-30.2W 3.3V, 5V, 9V, 12V, 15V, 24V, 48V 2.73” x 1.53” x 0.94” 3.53oz (100g) IEC/EN/UL62368/
EN60335/EN61558

Full series details can be found in the ‘Series Name’ links above.

PSLH vs PSDAL

PSLH

PSDAL

Wattage Range

4W to 26.4W

5W to 31.2W

Operating Temperature

-40 to +70°C

-40 to +85°C

Efficiency

Up to 87%

Up to 90%

Isolation Voltage

Up to 3000VAC

4000VAC

Package Options Through Hole, Chassis Mount, DIN Rail

Through Hole, Chassis Mount, DIN Rail

Please note: the PSLH series will still be available for purchase, it just will not be promoted on the Wall Industries website.

We have several series of industrial and EV power supplies available. Browse all of them here.

Browse all Industrial Supplies Browse all EV Supplies
