RGW2
The RGW2 series of DC/DC power converters provides 2 watts of output power in a 0.74 x 0.50 x 0.33 inch DIP or SMT package without derating up to 85°C. This series has single and dual output models with 2:1 wide input voltage ranges of 4.5-9VDC, 9-18VDC, 18-36VDC, and 36-75VDC. Some features include high efficiency, low ripple and noise, 3000VDC I/O isolation option, remote ON/OFF, and continuous short circuit protection. All models are RoHS compliant.
• 2 Watts Maximum Output Power
• Single and Dual Outputs

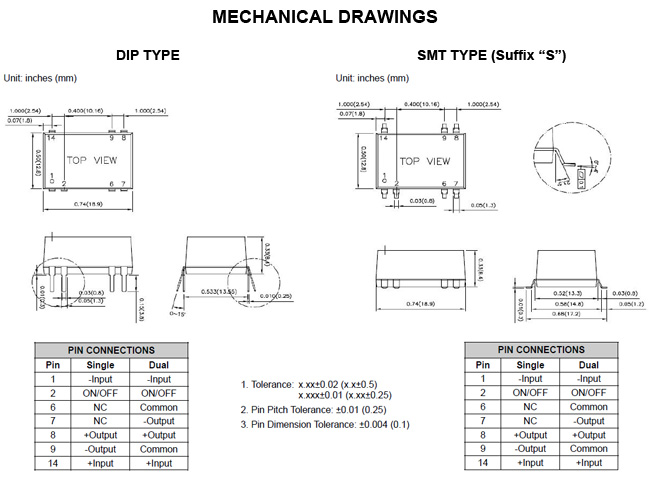

• SMT & DIP Packages: 0.74 x 0.50 x 0.33 Inches
• SMT Package Qualified for Lead Free Reflow Solder Process According to IPC J-STD-020D
• 2:1 Wide Input Voltage Range
• High Efficiency up to 84%
• 1600VDC I/O Isolation (3000VDC I/O Isolation Available)
• Low Ripple & Noise
• External ON/OFF Control
• Switching Frequency (100KHz, min)
• Continuous Short Circuit Protection
• UL94V-V0 Package Materials
• CE Mark Meets 2006/95/EC, 93/68/EEC, and 2004/108EC
• UL60950-1, EN60950-1, and IEC60950-1 Safety Approvals (Pending)
• Compliant to RoHS EU Directive 2002/95/EC
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| RG5S3.3W2S | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG5S3.3W2 | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG12S3.3W2 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG12S3.3W2S | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG24S3.3W2S | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG24S3.3W2 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG48S3.3W2 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG48S3.3W2S | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG5D5W2 | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG5D5W2S | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG5D12W2S | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG5D12W2 | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG5D15W2S | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG5D15W2 | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG5S5W2 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG5S5W2S | Input Voltage: 5 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG5S9W2S | Input Voltage: 5 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG5S9W2 | Input Voltage: 5 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG5S12W2 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG5S12W2S | Input Voltage: 5 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG5S15W2S | Input Voltage: 5 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG5S15W2 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG12D5W2 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG12D5W2S | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG12D12W2 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG12D12W2S | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG12D15W2S | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG12D15W2 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG12S5W2S | Input Voltage: 12 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG12S5W2 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG12S9W2 | Input Voltage: 12 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG12S9W2S | Input Voltage: 12 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG12S12W2S | Input Voltage: 12 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG12S12W2 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG12S15W2S | Input Voltage: 12 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG12S15W2 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG24D5W2S | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG24D5W2 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG24D12W2S | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG24D12W2 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG24D15W2 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG24D15W2S | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG24S5W2S | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG24S5W2 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG24S9W2S | Input Voltage: 24 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG24S9W2 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG24S12W2 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG24S12W2S | Input Voltage: 24 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG24S15W2 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG24S15W2S | Input Voltage: 24 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG48D5W2S | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG48D5W2 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG48D12W2 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG48D12W2S | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG48D15W2 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG48D15W2S | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG48S5W2S | Input Voltage: 48 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG48S5W2 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG48S9W2 | Input Voltage: 48 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG48S9W2S | Input Voltage: 48 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG48S12W2 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG48S12W2S | Input Voltage: 48 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG48S15W2S | Input Voltage: 48 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Surface Mount | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| RG48S15W2 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 134mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.74" x 0.5" x 0.33" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 24, 48 |
| Input Voltage Range: | 18~36, 36~75, 4.5~9, 9~18 |
| Input Filter: | Capacitor Type |
| Remote ON/OFF: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 500mA, 400mA, 222mA, 167mA, 134mA, ±200mA, ±83mA, ±67mA |
| Output Power (Watts): | 1.65, 2 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 84% |
| Isolation: | Standard: 1600VDC Suffix "H": 3000VDC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.16 oz |
| Dimensions: | 0.74" x 0.50" x 0.33" |
| Notes & safety | |
| Notes: | 1. BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40°C. MIL-HDBK-217F Notice2 @Ta=25°C, Full load (Ground, Benign, controlled environment). 2. Maximum value at nominal input voltage and full load. 3. Typical value at nominal input voltage and no load. 4. Typical value at nominal input voltage and full load. 5. Test by minimum Vin and constant resistive load. 6. The RGW2 series meets EN55022 Class A and input reflected ripple current with an external L-C filter before the input pins to the converter. (See Class B figure for connecting network) Recommended: 05Vin: C1=10µF/25V 1810 MLCC C3=220pF/3KV 1808 MLCC L1=2.2µH 0504 SMD Inductor P/N: PMT-059 12Vin: C1=6.8µF/50V 1810 MLCC C3=220pF/3KV 1808 MLCC L1=18µH 0504 SMD Inductor P/N: PMT-046 24Vin: C1=4.7µF/100V 1810 MLCC C3=220pF/3KV 1808 MLCC L1=18µH 0504 SMD Inductor P/N: PMT-046 48Vin: C1=4.7µF/100V 1810 MLCC C3=220pF/3KV 1808 MLCC L1=18µH 0504 SMD Inductor P/N: PMT-046 7. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. The filter capacitor suggested is Nippon chemi-con KY series, 220μF /100V, ESR 48mΩ. 8. To order surface mount version, add the suffix “S” to the model number (Ex: RG24S5W2S). 9. To order 3000VDC I/O isolation version, add the suffix “H” to the model number (Ex: RG24S5W2H). 10. CAUTION: This power module is not internally fused. An input line fuse must always be used. 11. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
