RBAT1
The RBAT1 series of DC/DC converters offers 1 watt of output power in a very compact 0.46” x 0.24” x 0.4” SIP package. This series consists unregulated single output models with fixed input voltage. Each model features industry standard pin-out, continuous short circuit protection, and RoHS compliance. All models meet UL62368-1, EN62368-1, and BS EN62368-1 safety standards, while 12VDC, 15VDC, and 24VDC input models also meet IEC 62368-1 standards.
• Fixed Input Voltage • Unregulated Single Output • Industry Standard Pin-Out • Compact Package • Continuous Short Circuit Protection • RoHS Compliant • All Models Meet UL62368-1, EN62368-1, and BS EN62368-1 Standards, 12VDC, 15VDC, and 24VDC Input Models also Meet IEC 62368-1 Standards
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| RBAT1-05S03 | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.4" | Get a Quote |
| RBAT1-05S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.4" | Get a Quote |
| RBAT1-05S09 | Input Voltage: 5 | Output Voltage: 9 | Output Current: 111mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.4" | Get a Quote |
| RBAT1-05S12 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.4" | Get a Quote |
| RBAT1-05S15 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.4" | Get a Quote |
| RBAT1-05S24 | Input Voltage: 5 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.4" | Get a Quote |
| RBAT1-12S03 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| RBAT1-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| RBAT1-12S09 | Input Voltage: 12 | Output Voltage: 9 | Output Current: 111mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| RBAT1-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| RBAT1-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| RBAT1-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| RBAT1-15S05 | Input Voltage: 15 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| RBAT1-15S09 | Input Voltage: 15 | Output Voltage: 9 | Output Current: 111mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| RBAT1-15S12 | Input Voltage: 15 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| RBAT1-15S15 | Input Voltage: 15 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| RBAT1-15S24 | Input Voltage: 15 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| RBAT1-24S03 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| RBAT1-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| RBAT1-24S09 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 111mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| RBAT1-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| RBAT1-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| RBAT1-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.46" x 0.24" x 0.40" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 15, 24 |
| Input Voltage Range: | 4.5~5.5, 10.8~13.2, 13.5~16.5, 21.6~26.4 |
| Input Filter: | Capacitance Filter |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24 |
| Voltage Accuracy: | See Data Sheet |
| Output Current: | 42mA, 67mA, 83mA, 111mA, 200mA, 303mA |
| Output Power (Watts): | 1 |
| Short Circuit Protection: | Continuous, Self-Recovery |
| General | |
| Efficiency: | Up to 85% |
| Environmental | |
| Operating Temperature: | -40 to 105ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | 0.046oz (1.3g) |

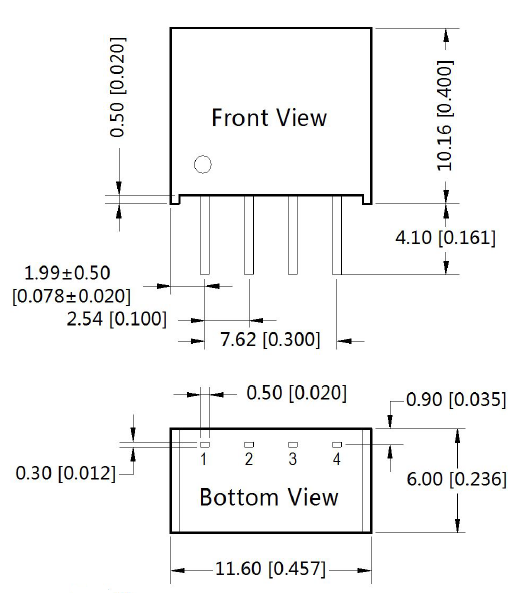

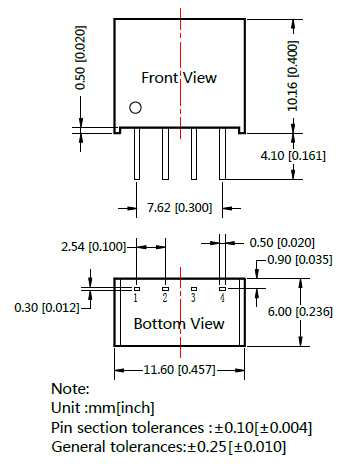

| Dimensions: | 0.46in x 0.24in x 0.4in (11.60mm x 6mm x 10.16mm) |
| Case Material: | Black Flame-Retardant and Heat-Resistance Plastic (UL94 V-0) |
| Notes & safety | |
| Notes: | 1. Contact factory for reflected ripple current testing method. 2. Ripple and noise tested with “parallel cable” method. 3. If product is not operated within required load range, the product’s performance cannot be guaranteed to comply with all parameters in data sheet. 4. Customization service is available, please contact factory. 5. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL62368-1, EN62368-1, BS EN62368-1 12VDC, 15VDC, 24VDC Input: IEC 62368-1 |
| RoHS Compliance: | Yes |
