RBA30
The RBA30 series of DC/DC converters offers up to 30 watts of output power in either a through hole package, chassis mounted package, or DIN rail mounted package. This series consists of single and dual output models with an ultra-wide 4:1 input voltage range. Features of this series include high efficiency, six-sided shielding, optional heatsink, and input under voltage protection as well as over voltage, over current, and short circuit protection. This series meets CISPR22/EN55022 Class A without external components, is RoHS compliant, and has IEC60950, UL60905, and EN60950 safety approvals. Please contact factory for ordering information.
• Ultra Wide 4:1 Input Voltage Range
• Isolated & Regulated Single & Dual Output
• High Efficiency
• Through Hole, Chassis Mount, or DIN Rail Package
• Optional Heatsink Available
• Isolation Voltage of 1500VDC
• Six-Sided Shielded Metal Packaging
• RoHS Compliant
• Input Under Voltage Protection
• Over Voltage, Over Current, and Short Circuit Protection
• Reverse Voltage Protection Available for Chassis Mount and DIN Rail Models
• Meets CISPR22/EN55022 Class A Without External Components
• IEC60950, UL60950, and EN60950 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| RBA30-24S03 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 6000mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-24S03C | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 6000mA | Output Power (W): 30 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-24S03DN | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 6000mA | Output Power (W): 30 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| RBA30-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 6000mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-24S05C | Input Voltage: 24 | Output Voltage: 5 | Output Current: 6000mA | Output Power (W): 30 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-24S05DN | Input Voltage: 24 | Output Voltage: 5 | Output Current: 6000mA | Output Power (W): 30 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| RBA30-24S09 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 3333mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-24S09C | Input Voltage: 24 | Output Voltage: 9 | Output Current: 3333mA | Output Power (W): 30 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-24S09DN | Input Voltage: 24 | Output Voltage: 9 | Output Current: 3333mA | Output Power (W): 30 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| RBA30-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 2500mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-24S12C | Input Voltage: 24 | Output Voltage: 12 | Output Current: 2500mA | Output Power (W): 30 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-24S12DN | Input Voltage: 24 | Output Voltage: 12 | Output Current: 2500mA | Output Power (W): 30 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| RBA30-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 2000mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-24S15C | Input Voltage: 24 | Output Voltage: 15 | Output Current: 2000mA | Output Power (W): 30 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-24S15DN | Input Voltage: 24 | Output Voltage: 15 | Output Current: 2000mA | Output Power (W): 30 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| RBA30-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 1250mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-24S24C | Input Voltage: 24 | Output Voltage: 24 | Output Current: 1250mA | Output Power (W): 30 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-24S24DN | Input Voltage: 24 | Output Voltage: 24 | Output Current: 1250mA | Output Power (W): 30 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| RBA30-48S03 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 6000mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-48S03C | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 6000mA | Output Power (W): 30 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-48S03DN | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 6000mA | Output Power (W): 30 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| RBA30-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 6000mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-48S05C | Input Voltage: 48 | Output Voltage: 5 | Output Current: 6000mA | Output Power (W): 30 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-48S05DN | Input Voltage: 48 | Output Voltage: 5 | Output Current: 6000mA | Output Power (W): 30 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| RBA30-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 2500mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-48S12C | Input Voltage: 48 | Output Voltage: 12 | Output Current: 2500mA | Output Power (W): 30 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-48S12DN | Input Voltage: 48 | Output Voltage: 12 | Output Current: 2500mA | Output Power (W): 30 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| RBA30-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 2500mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-48S15C | Input Voltage: 48 | Output Voltage: 15 | Output Current: 2500mA | Output Power (W): 30 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-48S15DN | Input Voltage: 48 | Output Voltage: 15 | Output Current: 2500mA | Output Power (W): 30 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| RBA30-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 1250mA | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-48S24C | Input Voltage: 48 | Output Voltage: 24 | Output Current: 1250mA | Output Power (W): 30 | No. Outputs: S | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-48S24DN | Input Voltage: 48 | Output Voltage: 24 | Output Current: 1250mA | Output Power (W): 30 | No. Outputs: S | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| RBA30-24D05 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±3000mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-24D05C | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±3000mA | Output Power (W): 30 | No. Outputs: D | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-24D05DN | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±3000mA | Output Power (W): 30 | No. Outputs: D | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| RBA30-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±1250mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-24D12C | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±1250mA | Output Power (W): 30 | No. Outputs: D | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-24D12DN | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±1250mA | Output Power (W): 30 | No. Outputs: D | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| RBA30-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±1000mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-24D15C | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±1000mA | Output Power (W): 30 | No. Outputs: D | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-24D15DN | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±1000mA | Output Power (W): 30 | No. Outputs: D | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| RBA30-24D24 | Input Voltage: 24 | Output Voltage: 24, -24 | Output Current: ±625mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-24D24C | Input Voltage: 24 | Output Voltage: 24, -24 | Output Current: ±625mA | Output Power (W): 30 | No. Outputs: D | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-24D24DN | Input Voltage: 24 | Output Voltage: 24, -24 | Output Current: ±625mA | Output Power (W): 30 | No. Outputs: D | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| RBA30-48D05 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±3000mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-48D05C | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±3000mA | Output Power (W): 30 | No. Outputs: D | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-48D05DN | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±3000mA | Output Power (W): 30 | No. Outputs: D | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| RBA30-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±1250mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-48D12C | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±1250mA | Output Power (W): 30 | No. Outputs: D | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-48D15DN | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±1250mA | Output Power (W): 30 | No. Outputs: D | Case: DIN Rail | Size: 2.99" x 1.24" x 1.02" | Get a Quote |
| RBA30-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±1000mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.47" | Get a Quote |
| RBA30-48D15C | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±1000mA | Output Power (W): 30 | No. Outputs: D | Case: Chassis Mount | Size: 2.99" x 1.24" x 0.84" | Get a Quote |
| RBA30-48D15DN | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±1000mA | Output Power (W): 30 | No. Outputs: D | Case: DIN Rail | Size: | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 9~36, 18~75 |
| Input Filter: | Pi Filter |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15, ±24 |
| Voltage Accuracy: | 5%-100% Load: ±3% Max. 0%-5% Load: ±5% Max. |
| Output Current: | 1250mA, 2000mA, 2500mA, 3333mA, 6000mA, ±625mA, ±1000mA, ±1250mA, ±3000mA |
| Output Power (Watts): | 30 |
| Short Circuit Protection: | Hiccup, Continuous, Self-Recovery |
| Over Voltage Protection: | 110-160%Vo |
| General | |
| Efficiency: | Up to 90% |
| Environmental | |
| Operating Temperature: | -40 to +80ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | Through Hole Package: 0.92oz (26g) Through Hole Package with Heatsink: 1.20oz (34g) Chassis Mount Package: 1.69oz (48g) Chassis Mount Package with Heatsink: 1.98oz (56g) DIN Rail Mount Package: 2.40oz (68g) DIN Rail Mount Package with Heatsink: 2.68oz (76g) |

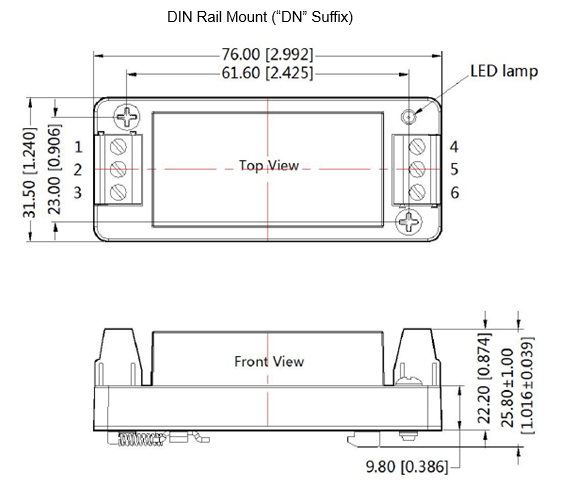

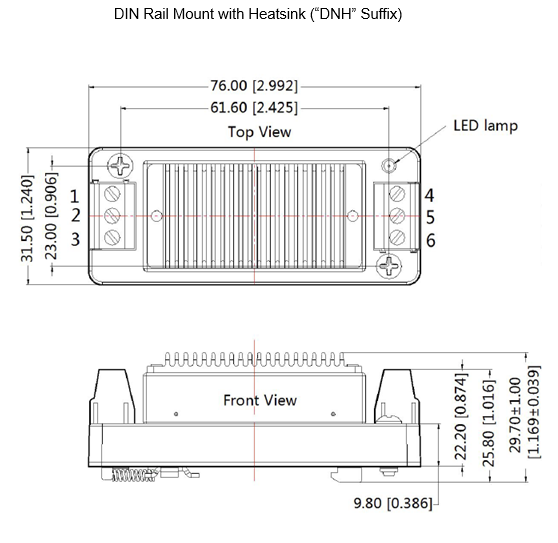

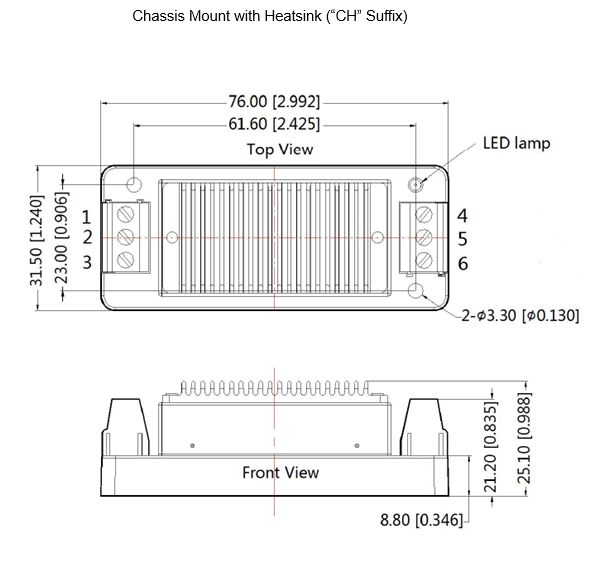

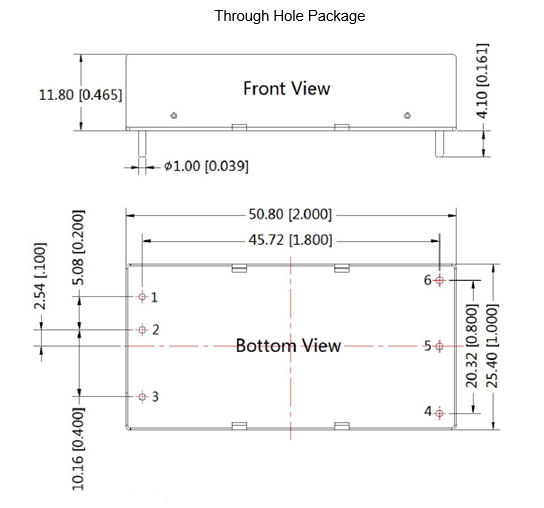

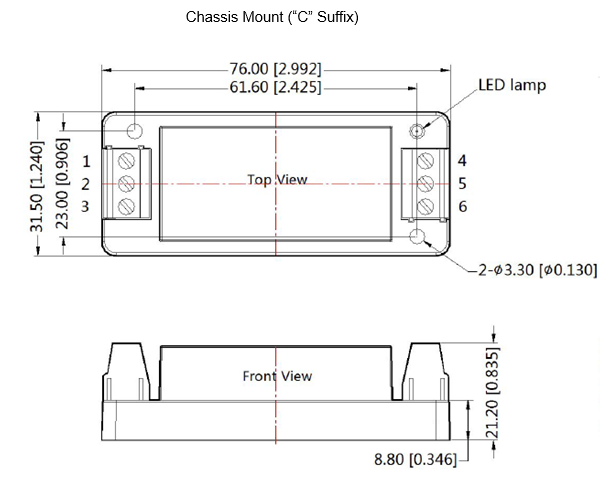

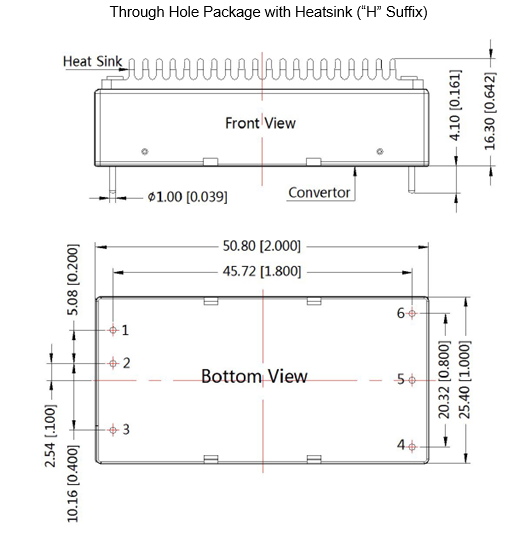

| Dimensions: | Through Hole Package: 2in x 1in x 0.47in (50.80mm x 25.4mm x 11.80mm) Through Hole with Heatsink: 2in x 1in x 0.64in (50.80mm x 25.4mm x 16.3mm) Chassis Mount: 2.99in x 1.24in x 0.84in (76mm x 31.5mm x 21.2mm) Chassis Mount with Heatsink: 2.99in x 1.24in x 0.99in (76mm x 31.5mm x 25.1mm) DIN Rail Mount: 2.99in x 1.24in x 1.02in (76mm x 31.5mm x 25.8mm) DIN Rail Mount with Heatsink: 2.99in x 1.24in x 1.17in (76mm x 31.5mm x 29.7mm) |
| Notes & safety | |
| Notes: | 1. Chassis Mount, DIN Rail Mount, and Heatsink are available options for this series. To indicate chassis mount, add “C” to model number. To indicate DIN Rail Mount, add “DN” to model number. To indicate Heatsink, add “H” to model number. 2. Due to input reverse polarity protection function, chassis mount & DIN rail mount models minimum value input voltage range and starting voltage is higher than 1VDC DIP package. 3. Efficiency is measured in nominal input voltage and rated output load. Due to input reverse polarity protection, minimum efficiency of chassis mount and DIN rail mount models greater than min. -2 is qualified. 4. The capacitive loads of positive and negative outputs are identical. Maximum capacitive load offered were tested at input voltage range and full load. 5. The voltage of Ctrl pin is relative to input pin GND. 6. Ripple & Noise are measured by “parallel cable” method. See application notes for specific operation. 7. This series of products using reduced frequency technology, the switching frequency is test value of full load. When the load is reduced to below 50%, the switching frequency decreases with decreasing load. 8. Customization is available. 9. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC60950, UL60950, & EN60950 |
| RoHS Compliance: | Yes |
