RBA1P2
The RBA1P2 series of DC/DC converters offers 1.2 watts of output power in a very compact 1.81” x 1.01” x 0.61” package. This series provides 0-600V continuous output with linear adjustable function with a fixed input voltage. In addition to its low ripple, the RBA1P2 series features over current and short circuit protection, and RoHS compliance. This series meets CE and RE EMI specifications without any external components. Please contact factory for order details.
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| RBA1P2-12S600 | Input Voltage: 12 | Output Voltage: 600 | Output Current: 2mA | Output Power (W): 1.2 | No. Outputs: S | Case: Through Hole | Size: 1.81" x 1.01" x 0.61" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12 |
| Input Voltage Range: | 10.8~13.2 |
| Input Filter: | Pi Filter |
| UVLO: | Starting Voltage: 10.8VDC Shutdown Voltage: 7.8VDC |
| Output | |
| Output Voltage: | 600 |
| Voltage Accuracy: | ±2% Maximum |
| Output Current: | 2mA |
| Output Power (Watts): | 1.2 |
| Short Circuit Protection: | Continuous, Self-Recovery |
| General | |
| Environmental | |
| Operating Temperature: | -40 to +85ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | 1.13oz (32g) |

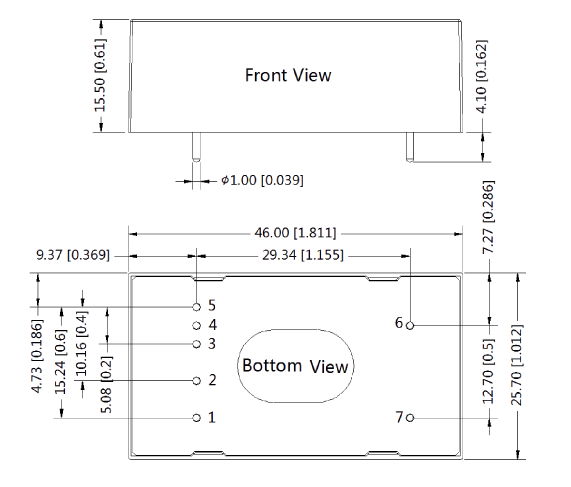

| Dimensions: | 1.81in x 1.01in x 0.61in (46mm x 25.7mm x 15.50mm) |
| Case Material: | Black Flame-Retardant & Heat-Proof Plastic (UL94 V-0) |
| Notes & safety | |
| Notes: | 1. Customization available. *Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
