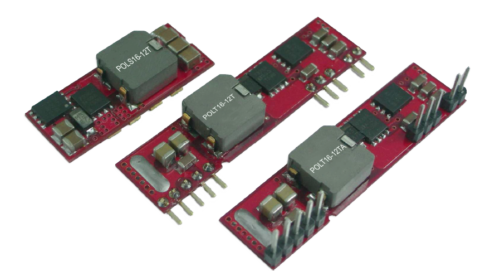

POLT16-12T
The POLT16-12T series of DC/DC POL converters offers 16A output current rating and 12~80 watts output power in a compact size and low profile package. This series consist of single output models with an input voltage range of 8.3~14VDC. Several options are available for this series including SMD or SIP package and remote control negative or positive logic. Each model in this series is CE marked, compliant to RoHS II & REACH, and has over voltage, over current, and short circuit protection. This series has UL60950-1, EN60950-1, and IEC60950-1 safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| POLS16-12T | Input Voltage: 12 | Output Voltage: 0.75~5 | Output Current: 16A | Output Power (W): 12~80 | No. Outputs: S | Case: POL | Size: 1.3" x 0.53" x 0.3" | Get a Quote |
| POLS16-12T-P | Input Voltage: 12 | Output Voltage: 0.75~5 | Output Current: 16A | Output Power (W): 12~80 | No. Outputs: S | Case: POL | Size: 1.3" x 0.53" x 0.3" | Get a Quote |
| POLT16-12T | Input Voltage: 12 | Output Voltage: 0.75~5 | Output Current: 16A | Output Power (W): 12~80 | No. Outputs: S | Case: POL | Size: 2" x 0.5" x 0.28" | Get a Quote |
| POLT16-12T-P | Input Voltage: 12 | Output Voltage: 0.75~5 | Output Current: 16A | Output Power (W): 12~80 | No. Outputs: S | Case: POL | Size: 2" x 0.5" x 0.28" | Get a Quote |
| POLT16-12TA | Input Voltage: 12 | Output Voltage: 0.75~5 | Output Current: 16A | Output Power (W): 12~80 | No. Outputs: S | Case: POL | Size: 2" x 0.5" x 0.28" | Get a Quote |
| POLT16-12TA-P | Input Voltage: 12 | Output Voltage: 0.75~5 | Output Current: 16A | Output Power (W): 12~80 | No. Outputs: S | Case: POL | Size: 2" x 0.5" x 0.28" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12 |
| Input Voltage Range: | 8.3~13.2, 8.3~14 |
| Input Filter: | Capacitor Type |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | 0.75~5 |
| Voltage Accuracy: | ±2.0% |
| Output Current: | 16A |
| Output Power (Watts): | 12~80 |
| Output Trim/Adjustability: | 0.7525-3.63VDC |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Thermal Protection: | 125ºC |
| General | |
| Efficiency: | 92% |
| Environmental | |
| Operating Temperature: | -40 to +85ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | 0.21oz (6g) |
| Dimensions: | SMD Package: 1.30in x 0.53in x 0.30in SIP Package: 2in x 0.50in x 0.28in |
| Notes & safety | |
| Notes: | 1. It’s necessary to equip the external input capacitors at the input of the module. The capacitors should connect as close as possible to the input terminals ensuring module stability. The external Cin is 6pcs of 47µF ceramic capacitors at least. 2. Output voltage programmable from 0.7525 to 5V by connecting a single resistor (shown as Trim Table) between the Trim and GND pins of the module. See data sheet for equation. 5. Remote ON/OFF referred to –Vin pin 6. Positive Logic: ON/OFF is open collector/drain logic input Negative Logic: ON/OFF pin is open collector/drain logic input with external pull –up resistor 7. Case 1: ON/OFF input is set to logic low (module on) and then input power is applied (delay from instant at which Vin=Vin(min.) until Vout=10% of Vout(set)) Case 2: Input power is applied for at least one second and then the ON/OFF input is set to logic low (delay from instant at which Von/off=0.3VDC until Vout=10% of Vout(set)) 8. This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must always be used. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
