POL10-05T

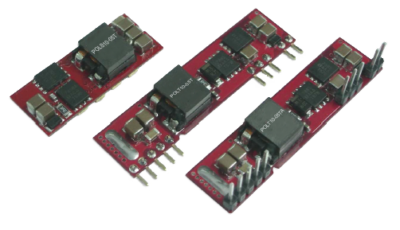

The POL10-05T series of DC/DC POL power converters offers 10A output current rating and 7.5-33 watts of output power in a small size and low profile package. This series consists of single output models with an operating input voltage range of 2.4~5.5VDC. Each model in this series is compliant to RoHS II & REACH, CE marked, has low ripple & noise, and is protected against over load, short circuit, and over temperature conditions. This series has UL60950-1, EN60950-1, and IEC60950-1 safety approvals. Please contact factory for order details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| POLS10-05T | Input Voltage: 5 | Output Voltage: 0.75~3.3 | Output Current: 10A | Output Power (W): 7.5~33 | No. Outputs: S | Case: POL | Size: 1.3" x 0.53" x 0.3" | Get a Quote |
| POLS10-05T-P | Input Voltage: 5 | Output Voltage: 0.75~3.3 | Output Current: 10A | Output Power (W): 7.5~33 | No. Outputs: S | Case: POL | Size: 1.3" x 0.53" x 0.3" | Get a Quote |
| POLT10-05T | Input Voltage: 5 | Output Voltage: 0.75~3.3 | Output Current: 10A | Output Power (W): 7.5~33 | No. Outputs: S | Case: POL | Size: 2" x 0.5" x 0.28" | Get a Quote |
| POLT10-05T-P | Input Voltage: 5 | Output Voltage: 0.75~3.3 | Output Current: 10A | Output Power (W): 7.5~33 | No. Outputs: S | Case: POL | Size: 2" x 0.5" x 0.28" | Get a Quote |
| POLT10-05TA | Input Voltage: 5 | Output Voltage: 0.75~3.3 | Output Current: 10A | Output Power (W): 7.5~33 | No. Outputs: S | Case: POL | Size: 2" x 0.5" x 0.28" | Get a Quote |
| POLT10-05TA-P | Input Voltage: 5 | Output Voltage: 0.75~3.3 | Output Current: 10A | Output Power (W): 7.5~33 | No. Outputs: S | Case: POL | Size: 2" x 0.5" x 0.28" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5 |
| Input Voltage Range: | 2.5~5.5 |
| Input Filter: | Capacitor |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | 0.75~3.3 |
| Voltage Accuracy: | ±2.0% |
| Output Current: | 10A |
| Output Power (Watts): | 7.5~33 |
| Output Trim/Adjustability: | 0.7525-3.63VDC |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Thermal Protection: | 125ºC |
| General | |
| Efficiency: | 95% |
| Environmental | |
| Operating Temperature: | -40 to +85ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | 0.21oz (6.0g) |
| Dimensions: | SMD Type: 1.30in x 0.53in x 0.30in SIP Type: 2.00in x 0.50in x 0.28in |
| Notes & safety | |
| Notes: | (1) ESR≥1mΩ / ESR≥10mΩ, Test by minimum input and constant resistive load. (2) It’s necessary to equip the external input capacitors at the input of the module. The capacitors should connect as close as possible to the input terminals ensuring module stability. The external Cin is 3pcs of 150µF low-ESR polymer capacitors // 2pcs of 47µF ceramic capacitors at least. (3) Output voltage is programmable from 0.75V to 3.3V by connecting a single resistor (shown as Trim Table) between the Trim and GND pins of the module. See data sheet for equation. (4) Remote On/Off referred to –Vin pin (5) Positive Logic: ON/OFF is open collector/drain logic input Negative Logic: ON/OFF pin is open collector/drain logic input with external pull –up resistor. (6) Case 1: ON/OFF input is set to logic low (module on) and then input power is applied (delay from instant at which Vin=Vin(min.) until Vout=10% of Vout(set)) Case 2: Input power is applied for at least one second and then the ON/OFF input is set to logic low (delay from instant at which Von/off=0.3VDC until Vout-10% of Vout(set)) (7) This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must always be used. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
