POL06-05T

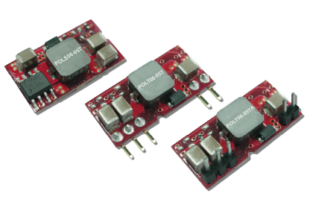

The POL06-05T series of DC DC point of load converters delivers up to 6A of output current and 4.5~19.8 watts in a small size and low profile package. This series consists of output voltages ranging from 0.75 to 3.3VDC and an input voltage range of 2.4-5.5VDC. No minimum load is required for this series, and it has a fixed switching frequency and high efficiency of 94%. POL06-05T offers several different options such as surface mount or through hole package type, vertical or horizontal mounting on the SIP package type, and positive or negative logic. This series has over load, over temperature, and short circuit protection, as well as UL60950-1, EN60950-1, and IEC60950-1 safety approvals. It is RoHS II and REACH compliant. Please call factory for order details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| POLS06-05T | Input Voltage: 5 | Output Voltage: 0.75~3.3 | Output Current: 6A | Output Power (W): 4.5~19.8 | No. Outputs: S | Case: POL | Size: 0.8" x 0.45" x 0.21" | Get a Quote |
| POLS06-05T-P | Input Voltage: 5 | Output Voltage: 0.75~3.3 | Output Current: 6A | Output Power (W): 4.5~19.8 | No. Outputs: S | Case: POL | Size: 0.8" x 0.45" x 0.21" | Get a Quote |
| POLT06-05T | Input Voltage: 5 | Output Voltage: 0.75~3.3 | Output Current: 6A | Output Power (W): 4.5~19.8 | No. Outputs: S | Case: POL | Size: 0.9" x 0.4" x 0.2" | Get a Quote |
| POLT06-05T-P | Input Voltage: 5 | Output Voltage: 0.75~3.3 | Output Current: 6A | Output Power (W): 4.5~19.8 | No. Outputs: S | Case: POL | Size: 0.9" x 0.4" x 0.2" | Get a Quote |
| POLT06-05TA | Input Voltage: 5 | Output Voltage: 0.75~3.3 | Output Current: 6A | Output Power (W): 4.5~19.8 | No. Outputs: S | Case: POL | Size: 0.9" x 0.4" x 0.36" | Get a Quote |
| POLT06-05TA-P | Input Voltage: 5 | Output Voltage: 0.75~3.3 | Output Current: 6A | Output Power (W): 4.5~19.8 | No. Outputs: S | Case: POL | Size: 0.9" x 0.4" x 0.36" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5 |
| Input Voltage Range: | 2.4~5.5 |
| Input Filter: | Capacitor Type |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | 0.75~3.3 |
| Voltage Accuracy: | ±2% |
| Output Current: | 6A |
| Output Power (Watts): | 4.5~19.8 |
| Output Trim/Adjustability: | 0.7525-3.63 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Thermal Protection: | 135ºC |
| General | |
| Efficiency: | 94% |
| Environmental | |
| Operating Temperature: | -40 to 85ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | 0.1oz (2.8g) |
| Dimensions: | SMD Package: 0.80in x 0.45in x 0.21in SIP Vertical: 0.90in x 0.40in x 0.20 SIP Horizontal: 0.90in x 0.40in x 0.36 |
| Notes & safety | |
| Notes: | (1) It’s necessary to equip the external input capacitors at the input of the module. The capacitors should connect as close as possible to the input terminals to ensure module stability. The external Cin is 2pcs of 150µF low-ESR polymer capacitors // 2pcs of 47µF ceramic capacitors at least. (2) Output voltage programmable from 0.75V to 3.3V by connecting a single resistor (shown as Trim Table) between the Trim and GND pins of the module. See data sheet for equation. (3) Remote ON/OFF referred to –Vin pin Positive Logic: ON/OFF is open collector/drain logic input Negative Logic: ON/OFF pin is open collector/drain logic input with external pull-up resistor (4) Case 1: ON/OFF input is set to logic low (module on) and then input power is applied (delay from instant at which Vin=Vin(min) until Vout=10% of Vout(set)) (5) Case 2: Input power is applied for at least one second and then on the ON/OFF input is set to logic low (delay from instant at which Von/off=0.3VDC unit Vout=10% of Vout(set)) (6) This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must be always be used. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
