MRW20
The MRW20 series of DC/DC converters offers up to 20 watts of output power in an ultra-compact 2” x 1” x 0.43” industry standard package. This series consists of single and dual output models with ultra-wide input range, high efficiency, and no minimum load requirements. Each model in this series is RoHS & REACH compliant, has over current, over voltage, and short circuit protection, and has two pin specifications available as well as optional heatsink. This series has UL/cUL/IEC/EN62368-1 (60950-1) safety approvals and CE marking.
• Ultra-Wide Input Range
• No Min. Load Requirement
• Remote On/Off
• RoHS & REACH Compliant
• High Efficiency
• Over Current, Over Voltage, and Short Circuit Protection
• 2 Pin Specifications Available
• Heatsink Available
• Railway Certified, EN 50155 (IEC60571) Approved
• Fire Protection Test EN 45545-2 Approved
• UL/cUL/IEC/EN 62368-1 (60905-1) Safety Approvals & CE Marking
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| MRW20-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 4000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| MRW20-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1670mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| MRW20-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 1330mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| MRW20-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 833mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| MRW20-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 4000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| MRW20-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1670mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| MRW20-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 1330mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| MRW20-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 833mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| MRW20-110S05 | Input Voltage: 110 | Output Voltage: 5 | Output Current: 4000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| MRW20-110S12 | Input Voltage: 110 | Output Voltage: 12 | Output Current: 4000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| MRW20-110S15 | Input Voltage: 110 | Output Voltage: 15 | Output Current: 1330mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| MRW20-110S24 | Input Voltage: 110 | Output Voltage: 24 | Output Current: 833mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| MRW20-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±833mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| MRW20-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±667mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| MRW20-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±833mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| MRW20-110D12 | Input Voltage: 110 | Output Voltage: 12, -12 | Output Current: ±833mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| MRW20-110D15 | Input Voltage: 110 | Output Voltage: 15, -15 | Output Current: ±667mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| MRW20-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±667mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" x 1" x 0.43" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48, 110 |
| Input Voltage Range: | 9~36, 18~75, 40~160 |
| Input Filter: | Internal Pi Type |
| Remote ON/OFF: | Yes |
| UVLO: | 24V Input Models: 7.5VDC 48V Input Models: 16VDC 110V Input Models: 37VDC |
| Output | |
| Output Voltage: | 5, 12, 15, 24, ±12, ±15 |
| Voltage Accuracy: | ±1.0Vnom |
| Output Current: | 833mA, 1330mA, 1670mA, 4000mA, ±667mA, ±833mA |
| Output Power (Watts): | 20 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Automatic Recovery, Hiccup Mode 0.7Hz Typ. |
| Over Voltage Protection: | 5V Models: 6.2VDC 12V Models: 15VDC 15V Models: 18VDC 24V Models: 30VDC ±12V Models: ±15VDC ±15V Models: ±18VDC |
| General | |
| Efficiency: | Up to 87% |
| Isolation: | I/O Reinforced Isolation: 3000VACrms Input/Output Case: 1500VACrms |
| Environmental | |
| Operating Temperature: | See Data Sheet |
| Storage Temperature: | -50 to +125ºC |
| Physical | |
| Weight: | 1.43oz (40.5g) |

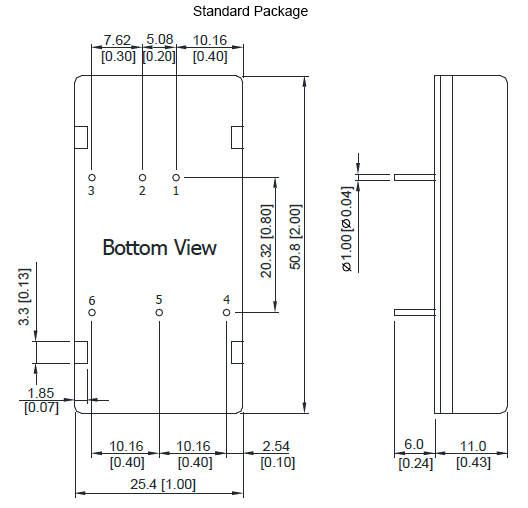

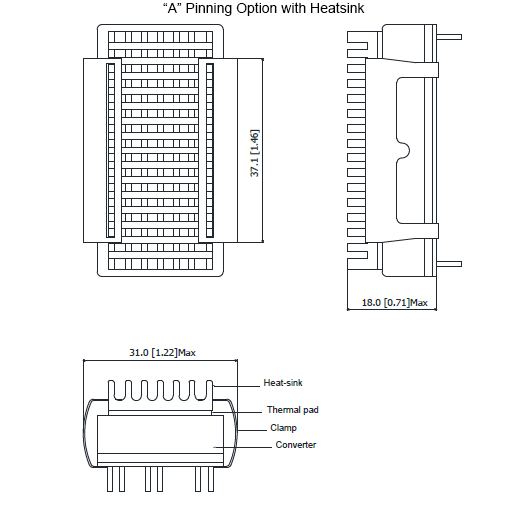

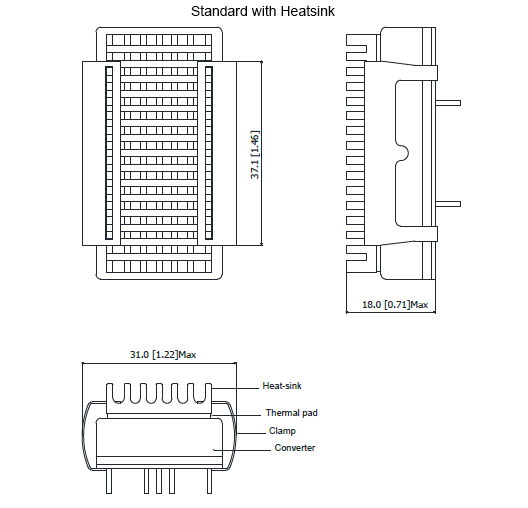

| Dimensions: | Standard Case, "A" Pinning: 2in x 1in x 0.43in (50.8mm x 25.4mm x 11mm) Case with Heatsink: 2in x 1.22in x 0.71in (50.8mm x 31mm x 18mm) |
| Case Material: | Red Copper, Powder Coating |
| Shielding: | Six-Sided Shielding |
| Notes & safety | |

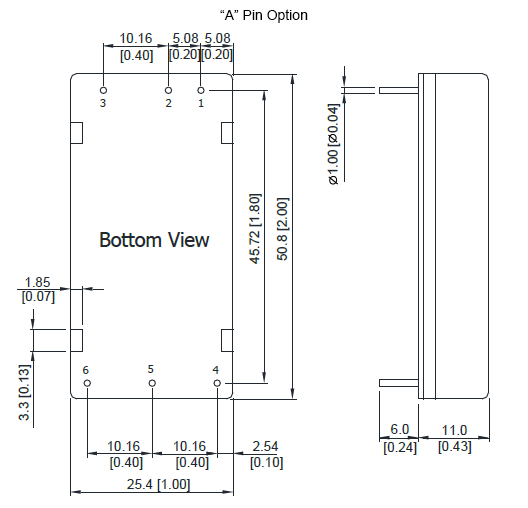

| Notes: | 1. To indicate “A” type pinning, add –A suffix to model number. Ex. MRW20-24S05-A To indicate heatsink, add –H suffix to model number. Ex. MRW20-24S05-H To indicate both “A” type pinning and Heatsink, add –AH to model number. Ex. MRW20-24S05-AH 2. To meet EN61000-4-4 & EN61000-4-5 an external capacitor across the input pins is required. Suggested Capacitors: 24V Input Models: CHEMI-CON KY Series 390µF/63V 48V Input Models: CHEMI-CON KY Series 330µF/100V 110V Input Models: CHEMI-CON KXJ Series 390µF/200V 3. Other input and output voltages may be available, please contact factory. 4. It is recommended to protect the converter by a slow blow fuse in the input supply line. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60950-1 Recognition (UL Certificate), IEC/EN 60950-1 (CB-Report), EN 50155, IEC 60571, UL/cUL 62368-1 Recognition (UL Certificate), IEC/EN 62368-1 (CB Report) |
| RoHS Compliance: | Yes |
