LANEW3

The LANEW3 Series offers 3 watts of output power from a 0.86 x 0.36 x 0.44 inch package without derating up to 71ºC. The LANEW3 Series has a 2:1 wide input voltage range of 4.5-9, 9-18, 18-36 and 36-75VDC, it features 1600VDC I/O isolation, remote on/off, and short-circuit protection. All models are ideally suited for telecommunications, mobile telecom, test equipment, and industrial applications. For 3000VDC I/O isolation see the LANEW “H” Series.

● Low Ripple & Noise ● 1600VDC I/O Isolation ● External ON/OFF Control ● High Efficiency up to 85% ● RoHS Directive Compliant ● 2:1 Wide Input Voltage Range ● UL94-V0 Case Potting Materials ● Continuous Short Circuit Protection ● SIP Package: 0.86 x 0.36 x 0.44 Inches ● ISO9001 Certified Manufacturing Facilities ● No External Input or Output Capacitor Needed ● UL60950-1, EN60950-1, and IEC60950-1 Licensed ● 3000VDC I/O Isolation Available (See LANEW3 “H” series) ● CE Mark Meets 2006/95/EC, 93/68/EEC and 2004/108/EC
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
LANEW1233R3 Input Voltage: 12 Output Voltage: 3.3 Output Current: 700mA Output Power (W): 2.3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW2433R3 Input Voltage: 24 Output Voltage: 3.3 Output Current: 700mA Output Power (W): 2.3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW4833R3 Input Voltage: 48 Output Voltage: 3.3 Output Current: 700mA Output Power (W): 2.3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW533R3 Input Voltage: 5 Output Voltage: 3.3 Output Current: 700mA Output Power (W): 2.3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW1205R3 Input Voltage: 12 Output Voltage: 5 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW1205RD3 Input Voltage: 12 Output Voltage: 5, -5 Output Current: ±300mA Output Power (W): 3 No. Outputs: D Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW1209R3 Input Voltage: 12 Output Voltage: 9 Output Current: 333mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW1212R3 Input Voltage: 12 Output Voltage: 12 Output Current: 250mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW1212RD3 Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±125mA Output Power (W): 3 No. Outputs: D Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW1215R3 Input Voltage: 12 Output Voltage: 15 Output Current: 200mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW1215RD3 Input Voltage: 12 Output Voltage: 15, -15 Output Current: ±100mA Output Power (W): 3 No. Outputs: D Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW2405R3 Input Voltage: 24 Output Voltage: 5 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW2405RD3 Input Voltage: 24 Output Voltage: 5, -5 Output Current: ±300mA Output Power (W): 3 No. Outputs: D Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW2409R3 Input Voltage: 24 Output Voltage: 9 Output Current: 333mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW2412R3 Input Voltage: 24 Output Voltage: 12 Output Current: 250mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW2412RD3 Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±125mA Output Power (W): 3 No. Outputs: D Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW2415R3 Input Voltage: 24 Output Voltage: 15 Output Current: 200mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW2415RD3 Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±100mA Output Power (W): 3 No. Outputs: D Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW4805R3 Input Voltage: 48 Output Voltage: 5 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW4805RD3 Input Voltage: 48 Output Voltage: 5, -5 Output Current: ±300mA Output Power (W): 3 No. Outputs: D Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW4809R3 Input Voltage: 48 Output Voltage: 9 Output Current: 333mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW4812R3 Input Voltage: 48 Output Voltage: 12 Output Current: 250mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW4812RD3 Input Voltage: 48 Output Voltage: 12, -12 Output Current: ±125mA Output Power (W): 3 No. Outputs: D Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW4815R3 Input Voltage: 48 Output Voltage: 15 Output Current: 200mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW4815RD3 Input Voltage: 48 Output Voltage: 15, -15 Output Current: ±100mA Output Power (W): 3 No. Outputs: D Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW505R3 Input Voltage: 5 Output Voltage: 5 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW505RD3 Input Voltage: 5 Output Voltage: 5, -5 Output Current: ±300mA Output Power (W): 3 No. Outputs: D Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW509R3 Input Voltage: 5 Output Voltage: 9 Output Current: 333mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW512R3 Input Voltage: 5 Output Voltage: 12 Output Current: 250mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW512RD3 Input Voltage: 5 Output Voltage: 12, -12 Output Current: ±125mA Output Power (W): 3 No. Outputs: D Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW515R3 Input Voltage: 5 Output Voltage: 15 Output Current: 200mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
LANEW515RD3 Input Voltage: 5 Output Voltage: 15, -15 Output Current: ±100mA Output Power (W): 3 No. Outputs: D Case: Through Hole Size: 0.86" × 0.36" × 0.44" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 5, 12, 24, 48
Input Voltage Range: 18-36, 36-75, 4.5-9, 9-18
Input Filter: Capacitor
Remote ON/OFF: ref. -Vin
Input Frequency: 0 Hz
Output
Output Voltage: 5, 9, 12, 15, ±5, ±12, ±15
Voltage Accuracy: ±1%
Output Current: 700mA, 600mA, 333mA, 250mA, 200mA, ±300mA, ±125mA, ±100mA
Output Power (Watts): 2.3, 3
Short Circuit Protection: Continuous, Automatic Recovery
General
Efficiency: Up to 81%
Isolation: 1600VDC
Environmental
Operating Temperature: -40 to 100°C
Storage Temperature: -55 to 105°C
Physical
Weight: 0.17oz (4.8g)

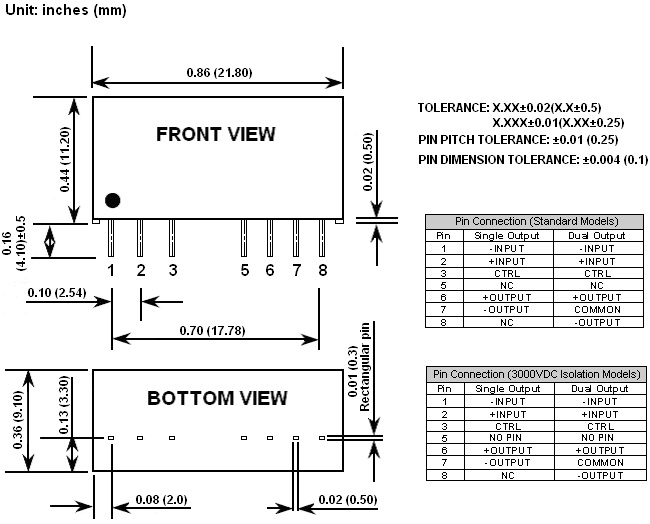

Dimensions: 0.86in. × 0.36in. × 0.44in.
Case Material: Non-Conductive Black Plastic
Notes & safety
Notes: 1. MTBF: BELLCORE TR-NWT-000332. Case: 50% Stress, Temperature at 40°C. MIL-HDBK-217F Notice2 @ Ta = 25°C, Full Load (Ground fixed and controlled environment).
2. The LANEW3 series meets EN55022 Class A with an external L-C filter before the input pins on the converter. See detailed specs for recommended configurations.
3. The external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. The filter capacitor suggested is Nippon chemi-con KY series, 220µF/100V, ESR 48MΩ.
4. For 3000VDC input/output isolation see the LANEW3 "H" Series.
5. This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications are subject to change without notice.
Safety Approvals: UL60950-1, EN60950-1, IEC60950-1
RoHS Compliance: Yes
