LANEH
The LANEH series of DC/DC power converters provides 1 Watt of output power in a 7 pin SIP package. This series consists of non-regulated single and dual output models with high efficiency and a -40°C to +85°C operating temperature range. All models in this series are RoHS compliant and have short circuit protection. This series has two package sizes available.
• 7Pin SIP Package • Unregulated Output Types • Two Package Sizes Available • RoHS Compliant • Internal SMD Construction • No External Component Required • High Efficiency • Industry Standard Pinout • Short Circuit Protection • Free Air Convection
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| LANE1205NDH | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1205NH | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1209NDH | Input Voltage: 12 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1209NH | Input Voltage: 12 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1212NDH | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1212NH | Input Voltage: 12 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1215NDH | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1215NH | Input Voltage: 12 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1224NDH | Input Voltage: 12 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1505NDH | Input Voltage: 15 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1505NH | Input Voltage: 15 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1509NDH | Input Voltage: 15 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1509NH | Input Voltage: 15 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1512NDH | Input Voltage: 15 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1512NH | Input Voltage: 15 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1515NDH | Input Voltage: 15 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1515NH | Input Voltage: 15 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE2405NDH | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE2405NH | Input Voltage: 24 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2409NDH | Input Voltage: 24 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2409NH | Input Voltage: 24 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2412NDH | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2412NH | Input Voltage: 24 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2415NDH | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2415NH | Input Voltage: 24 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE505NDH | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE505NH | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE509NDH | Input Voltage: 5 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE509NH | Input Voltage: 5 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE512NDH | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE512NH | Input Voltage: 5 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE515NDH | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE515NH | Input Voltage: 5 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE4805NDH | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4805NH | Input Voltage: 48 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4809NDH | Input Voltage: 48 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4809NH | Input Voltage: 48 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4812NDH | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4812NH | Input Voltage: 48 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4815NDH | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4815NH | Input Voltage: 48 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3333NH | Input Voltage: 3.3 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3333NDH | Input Voltage: 3.3 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3305NH | Input Voltage: 3.3 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3305NDH | Input Voltage: 3.3 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3309NH | Input Voltage: 3.3 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3309NDH | Input Voltage: 3.3 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3312NH | Input Voltage: 3.3 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3312NDH | Input Voltage: 3.3 | Output Voltage: 12, -12 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3315NH | Input Voltage: 3.3 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3315NDH | Input Voltage: 3.3 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE3324NH | Input Voltage: 3.3 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE3324NDH | Input Voltage: 3.3 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE533NH | Input Voltage: 3.3 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE533NDH | Input Voltage: 3.3 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE524NH | Input Voltage: 5 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE524NDH | Input Voltage: 5 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE933NH | Input Voltage: 9 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE933NDH | Input Voltage: 9 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE905NH | Input Voltage: 9 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE905NDH | Input Voltage: 9 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE909NH | Input Voltage: 9 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE909NDH | Input Voltage: 9 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE912NH | Input Voltage: 9 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE912NDH | Input Voltage: 9 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE915NH | Input Voltage: 9 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE915NDH | Input Voltage: 9 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE924NH | Input Voltage: 9 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE924NDH | Input Voltage: 9 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1233NH | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1233NDH | Input Voltage: 12 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1224NH | Input Voltage: 12 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1533NH | Input Voltage: 15 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1533NDH | Input Voltage: 15 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.24" x 0.39" | Get a Quote |
| LANE1524NH | Input Voltage: 15 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1524NDH | Input Voltage: 15 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2433NH | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2424NH | Input Voltage: 24 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2424NDH | Input Voltage: 24 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4824NH | Input Voltage: 48 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4824NDH | Input Voltage: 48 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE4833NH | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39 | Get a Quote |
| LANE4833NDH | Input Voltage: 48 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2433NDH | Input Voltage: 24 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 3.3, 5, 9, 12, 15, 24, 48 |
| Input Voltage Range: | 11.4-12.6, 14.25-15.75, 22.8-25.2, 3.14-3.47, 4.75-5.25, 45.6-50.4, 8.55-9.45 |
| Input Filter: | Capacitor |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 |
| Voltage Accuracy: | ±5% |
| Output Current: | 303mA, 200mA, 112mA, 84mA, 67mA, 42mA, ±150mA, ±100mA, ±56mA, ±42mA, ±34mA, ±21mA |
| Output Power (Watts): | 1 |
| Short Circuit Protection: | Short Term |
| General | |
| Efficiency: | Up to 82% |
| Isolation: | 3000VDC |
| Environmental | |

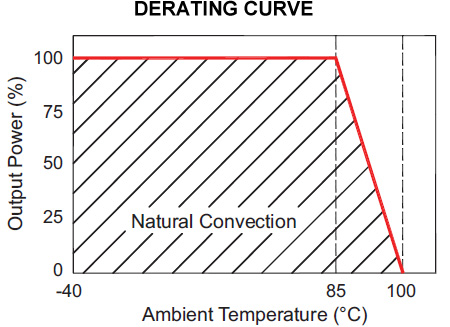

| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -40 to 100°C |
| Physical | |
| Weight: | Package 1: 0.074oz (2.1g) Package 2: 0.095oz (2.7g) |

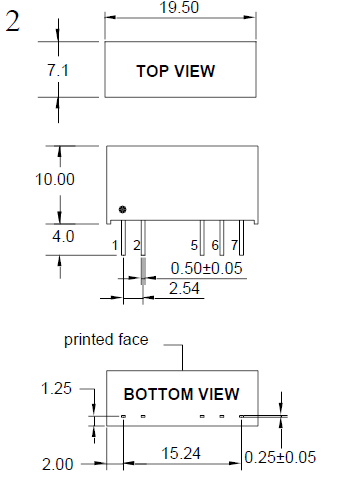

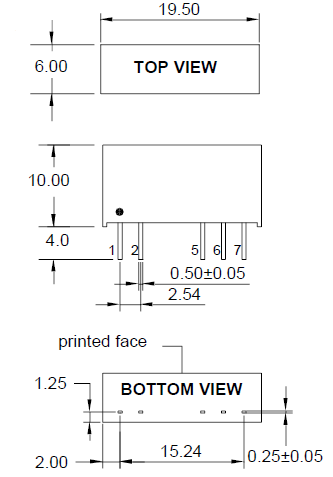

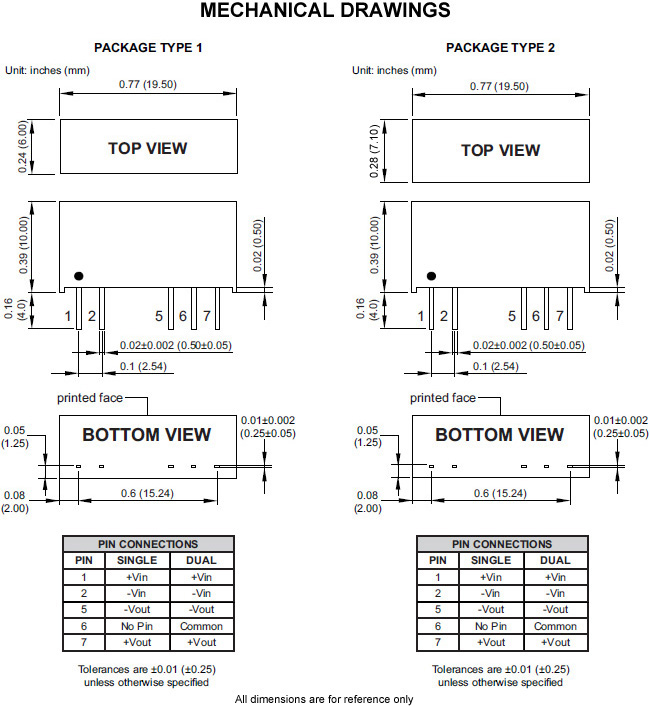

| Dimensions: | Package 1: 0.77" x 0.24" x 0.39" (19.5 x 6.0 x 10 mm) Package 2: 0.77" x 0.28" x 0.39" (19.5 x 7.10 x 10 mm) |
| Case Material: | DAP |
| Notes & safety | |
| Notes: | 1. 24VDC and 48VDC nominal input voltage and 24VDC Output models are only available in package 2 type. 2. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL 60950-1 for Certain Models |
| RoHS Compliance: | Yes |
