LANE2
The LANE2 series of DC/DC converters offers 2 watts of output power in a miniature 0.77” x 0.28” x 0.39” 5 pin SIP package. This series consists of unregulated single and dual output models with internal SMD construction. This series has short circuit protection, high efficiency, and no external components are required. The LANE2 series is RoHS compliant and is recognized by UL 60950-1. Please contact factory for order details.
• 5 PIN SIP Package
• Industry Standard Pinout
• Single and Dual Outputs
• RoHS Compliant
• Internal SMD Construction
• Short Circuit Protection
• High Efficiency up to 85%
• Unregulated Output Types
• No External Component Required
• Recognized by UL 60950-1
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| LANE505N2 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE509N2 | Input Voltage: 5 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE512N2 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE515N2 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE524N2 | Input Voltage: 5 | Output Voltage: 24 | Output Current: 84mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE905N2 | Input Voltage: 9 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE909N2 | Input Voltage: 9 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE912N2 | Input Voltage: 9 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE915N2 | Input Voltage: 9 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE924N2 | Input Voltage: 9 | Output Voltage: 24 | Output Current: 84mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1205N2 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1209N2 | Input Voltage: 12 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1212N2 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1215N2 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1224N2 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 84mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1505N2 | Input Voltage: 15 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1509N2 | Input Voltage: 15 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1512N2 | Input Voltage: 15 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1515N2 | Input Voltage: 15 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1524N2 | Input Voltage: 15 | Output Voltage: 24 | Output Current: 84mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2405N2 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2409N2 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2412N2 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2415N2 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2424N2 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 84mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE505ND2 | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE509ND2 | Input Voltage: 5 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE512ND2 | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±84mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |

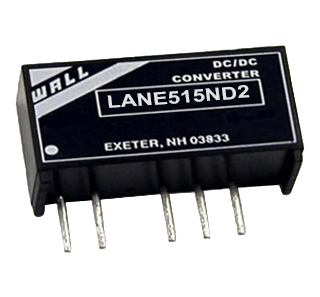

| LANE515ND2 | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE524ND2 | Input Voltage: 5 | Output Voltage: 24, -24 | Output Current: ±42mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE905ND2 | Input Voltage: 9 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE909ND2 | Input Voltage: 9 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE912ND2 | Input Voltage: 9 | Output Voltage: 12, -12 | Output Current: ±84mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE915ND2 | Input Voltage: 9 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE924ND2 | Input Voltage: 9 | Output Voltage: 24, -24 | Output Current: ±42mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1205ND2 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1209ND2 | Input Voltage: 12 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1212ND2 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±84mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1215ND2 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1224ND2 | Input Voltage: 12 | Output Voltage: 24, -24 | Output Current: ±42mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1505ND2 | Input Voltage: 15 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1509ND2 | Input Voltage: 15 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1512ND2 | Input Voltage: 15 | Output Voltage: 12, -12 | Output Current: ±84mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1515ND2 | Input Voltage: 15 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE1524ND2 | Input Voltage: 15 | Output Voltage: 24, -24 | Output Current: ±42mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2405ND2 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2409ND2 | Input Voltage: 24 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2412ND2 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±84mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2415ND2 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| LANE2424ND2 | Input Voltage: 24 | Output Voltage: 24, -24 | Output Current: ±42mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 9, 12, 15, 24 |
| Input Voltage Range: | 4.5~5.5, 8.1~9.9, 10.8~13.2, 13.5~16.5, 21.6~26.4 |
| Input Filter: | Capacitor |
| Output | |
| Output Voltage: | 5, 9, 12, 15, 24, ±5, ±9, ±12, ±15, ±24 |
| Output Current: | 84mA, 133mA, 167mA, 222mA, 400mA, ±42mA, ±67mA, ±84mA, ±111mA, ±200mA |
| Output Power (Watts): | 2 |
| Short Circuit Protection: | Short Term |
| General | |
| Efficiency: | Up to 85% |
| Environmental | |
| Operating Temperature: | -40 to +85ºC |
| Physical | |
| Weight: | 0.095 (2.7g) |

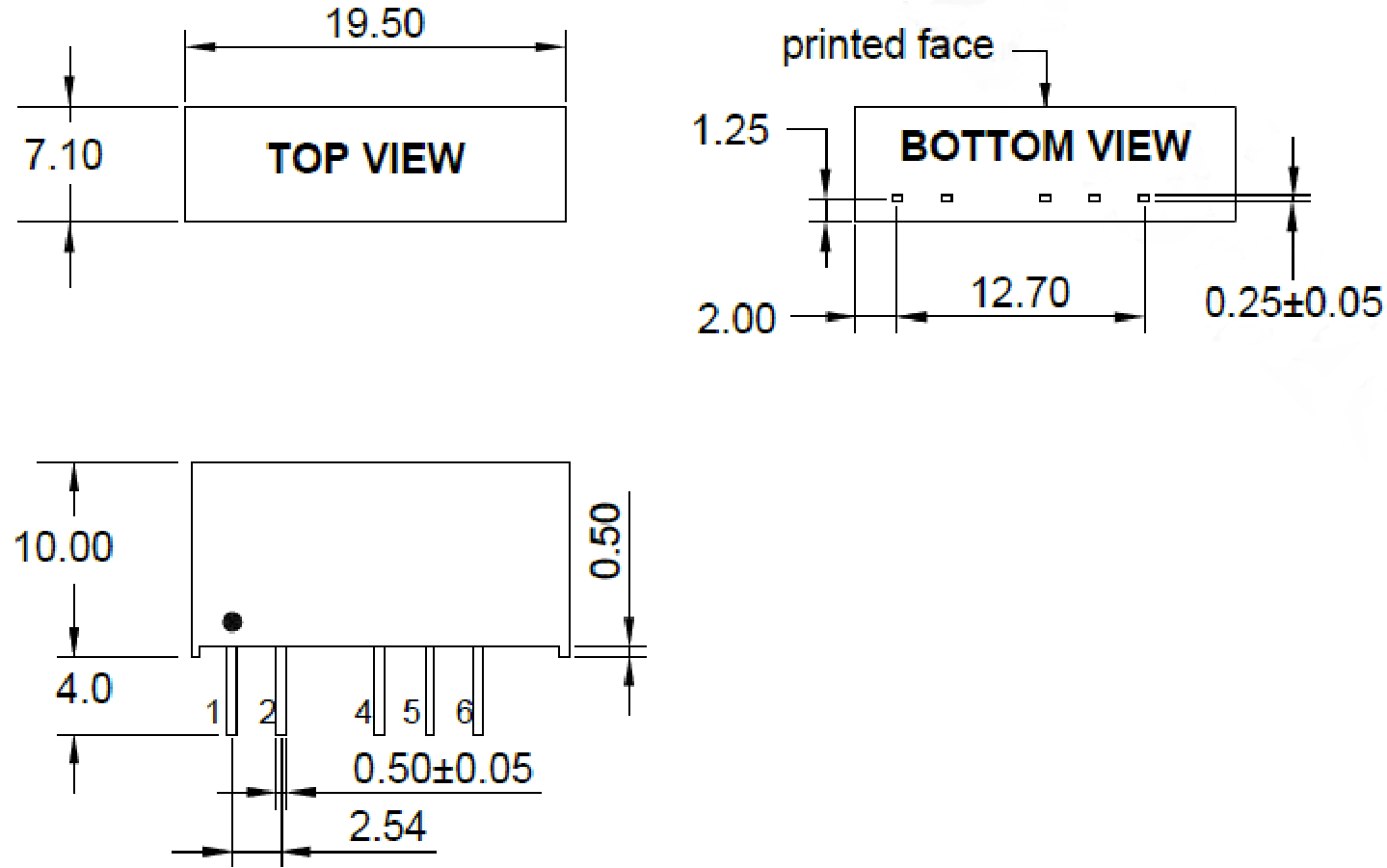

| Dimensions: | 0.77in x 0.28in x 0.39in (19.50mm x 7.10mm x 10mm) |
| Case Material: | DAP |
| Notes & safety | |
| Notes: | 1. If the input voltage increases, there will be an increase in efficiency. 2. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL 60950-1 |
| RoHS Compliance: | Yes |
