LANCW8
The LANCW8 Series of DC/DC converters offers up to 8 watts of output power from a package in and IC compatible 24 pin DIP configuration (add suffix S for SMT Type). The LANCW8 Series has a 2:1 wide input voltage of 9-18, 18-36, and 36-75VDC. This Series is intended to provide power and isolation for applications requiring high power density. Some features include 1600VDC isolation, short circuit protection, and five-sided shielding.
● 8 Watts Output Power
● Output Current up to 2A
● High Efficiency up to 85%
● Five-Sided Continuous Shield
● 2:1 Wide Input Voltage Range
● Fixed Switching Frequency (300KHz)
● Standard 1.25 x 0.8 x 0.4 Inch Package
● ISO9001 Certified Manufacturing Facilities
● Compliant to RoHS EU Directive 2002/95/EC
● Standard 24 Pin DIP Package & SMT Type Package
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

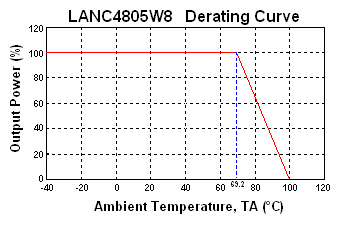

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| LANC123.3W8 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 2A | Output Power (W): 6.6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC243.3W8 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 2A | Output Power (W): 6.6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC483.3W8 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 2A | Output Power (W): 6.6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1205W8 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 1.5A | Output Power (W): 7.5 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2405W8 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1.5A | Output Power (W): 7.5 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4805W8 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1.5A | Output Power (W): 7.5 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2405DW8 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: 800mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1205DW8 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±800mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1212DW8 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±333mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1212W8 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 666mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1215DW8 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±267mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1215W8 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 533mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2412DW8 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±333mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2412W8 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 666mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2415DW8 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±267mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2415W8 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 533mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4805DW8 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±800mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4812DW8 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±333mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4812W8 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 666mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4815DW8 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±267mA | Output Power (W): 8 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4815W8 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 533mA | Output Power (W): 8 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 18-36, 36-75, 9-18 |
| Input Filter: | Pi Filter |
| Remote ON/OFF: | ref. -Vin |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 2A, 1.5A, 666mA, 533mA, ±800mA, ±333mA, ±267mA |
| Output Power (Watts): | 6.6, 7.5, 8 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 88% |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 105°C |
| Physical | |
| Weight: | DIP Type: 0.55oz (16g) SMT Type: 0.63 (18g) |

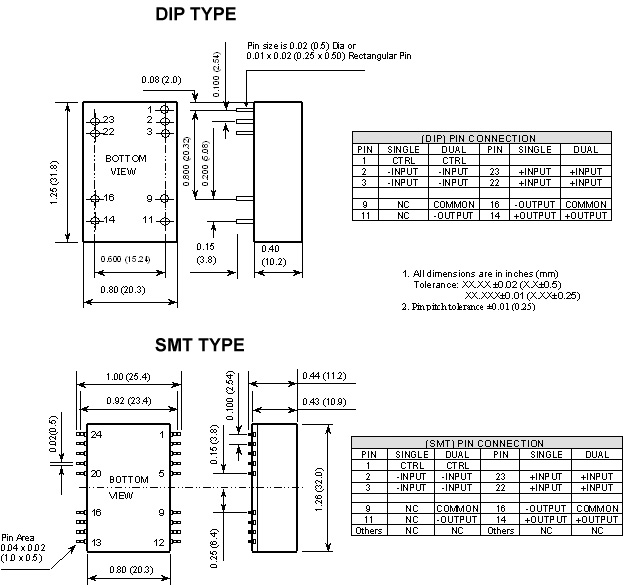

| Dimensions: | DIP Type: 1.25" x 0.80" x 0.40" (31.8 x 20.3 x 10.2 mm) SMT Type: 1.26" x 0.80" x 0.43" (32.0 x 20.3 x 10.9 mm) |
| Case Material: | Nickel-Coated Copper |
| Shielding: | Five-Sided |
| Notes & safety | |
| Notes: | 1. For negative logic remote on/off, add suffix "R". 2. For SMT Type, add suffix "S". 3. All case and pin-to-case dimensions reference only unless otherwise noted. 4. Pin size is 0.020" dia. or 0.010 x 0.020" rectangular pin x 0.15 long (min.) typical 9 places. 5. Pin to pin tolerance is ±0.010". Pin diameter tolerance is ±0.005". Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
