LANCW5
The LANCW5 series of DC/DC converters offers up to 6 watts of output power in an IC compatible 24 pin DIP configuration. The LANCW5 series has a 2:1 (W) wide input voltage of 9-18, 18-36, and 36-75VDC. The LANCW5 series also has a 4:1 (UW) ultra wide input range of 9-36 and 18-75VDC. This series is intended to provide power and isolation for applications requiring high power density. Some features include 1600VDC isolation, short circuit protection, and five-sided shielding. Also available are SMT type (suffix “S”) and I type (operating temperature: -40°C~+85°C without derating – add suffix “I”).
● Single and Dual Outputs
● High Efficiency up to 84%
● Standard 1.25 x 0.8 x 0.4 Inches
● Fixed Switching Frequency (300KHz)
● 2:1 and 4:1 Ultra Wide Input Voltage Ranges
● Compliant to RoHS EU Directive 2002/95/EC
● UL60950-1, EN60950-1, and IEC60950-1 Licensed
● Standard 24 Pin DIP Package and SMT Type Package
● CE Mark meets 2006/95/EC, 93/68/EEC, and 2004/108/EC
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| LANC1233W5 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 3.3 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2433UW5 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 3.3 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2433W5 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 3.3 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4833UW5 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 3.3 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4833W5 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 3.3 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2405DW5 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: 500mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1205DW5 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±500mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1205W5 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2405DUW5 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±500mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2405UW5 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2405W5 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2406UW5 | Input Voltage: 24 | Output Voltage: 6 | Output Current: 833mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4805DUW5 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±500mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4805DW5 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±500mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4805UW5 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4805W5 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1212DW5 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±230mA | Output Power (W): 5.5 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2412DUW5 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±230mA | Output Power (W): 5.5 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2412DW5 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±230mA | Output Power (W): 5.5 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4812DUW5 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±230mA | Output Power (W): 5.5 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4812DW5 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±230mA | Output Power (W): 5.5 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1212W5 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 470mA | Output Power (W): 5.64 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2412UW5 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 470mA | Output Power (W): 5.64 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2412W5 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 470mA | Output Power (W): 5.64 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4812UW5 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 470mA | Output Power (W): 5.64 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4812W5 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 470mA | Output Power (W): 5.64 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1215DW5 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±190mA | Output Power (W): 5.7 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2415DUW5 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±190mA | Output Power (W): 5.7 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2415DW5 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±190mA | Output Power (W): 5.7 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4815DUW5 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±190mA | Output Power (W): 5.7 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4815DW5 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±190mA | Output Power (W): 5.7 | No. Outputs: D | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC1215W5 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2415UW5 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC2415W5 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4815UW5 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| LANC4815W5 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 400mA | Output Power (W): 6 | No. Outputs: S | Case: Through Hole | Size: 1.25" x 0.8" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 18-36, 18-75, 36-75, 9-18, 9-36 |
| Input Filter: | Pi Type |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 1A, 470mA, 400mA, ±500mA, ±230mA, ±190mA |
| Output Power (Watts): | 3.3, 5, 5.5, 5.64, 5.7, 6 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 84% |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | -25 to 85°C |
| Storage Temperature: | -55 to 105°C |

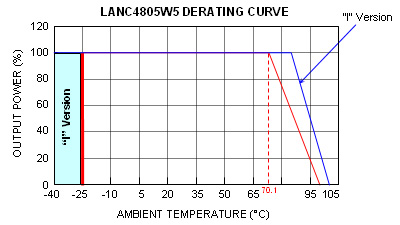

| Extended Operating Temp. Option: | -40 to 85°C |
| Physical | |
| Weight: | DIP Type: 0.55oz (16g) SMT Type: 0.63oz (18g) |

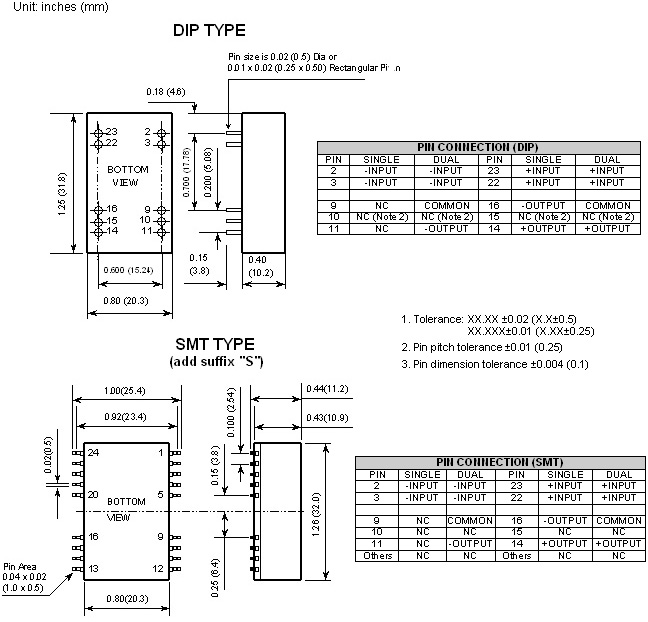

| Dimensions: | DIP Type: 1.25" x 0.80" x 0.40" (31.8 x 20.3 x 10.2 mm) SMT Type: 1.26" x 0.80" x 0.43" (32.0 x 20.3 x 10.9 mm) |
| Case Material: | Nickel-Coated Copper, Non-Conductive Baseplate |
| Notes & safety | |
| Notes: | 1. MTBF: BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40°C. MIL-HDBK-217F Notice2 @ Ta=25°C, Full load (Ground, benign, controlled environment). 2. There are no pins at 10 and 15 on 4:1 input type (UW) models. 3. An external filter capacitor is required if the module has to meet EN61000-4-5. 4. The LANCW5 Series can meet EMC EN55022 Class A and Class B with an external filter in parallel with the input pins. See the data sheet for filter suggestions. 5. 2:1 input, -40°C to +85°C (without derating) and 4:1 input, -40 to 85°C (with derating) operating temperature ranges available, add "I" suffix. 6. Add the suffix "S" for SMT type. 7. UL approval can be added to any products not currently listed if required. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
