LANCW3
The LANCW3 series of DC DC power converters provides 3 Watts of output power in a 1.25” x 0.8” x 0.4” 24- pin DIP plastic package. This series consists of fully regulated single and dual output models with 2:1 wide input voltage ranges of 4.5~9VDC, 9~18VDC, 18~36VDC, and 36~75VDC and a 3:1 input voltage range of 10~30VDC. These converters operate over a temperature range of -40°C to +85°C while maintaining all specifications. This product features an input filter that meets EN 55022 Class A and FCC Level A requirements. Other features include efficiency up to 81%, 1500VDC I/O isolation, and over load and short circuit protection. These converters are RoHS compliant and have UL 60950-1 (CSA Certificate) and IEC/EN 60950-1 safety approvals. The LANCW3 series offers an economical solution for many cost critical applications in batterypowered equipment and instrumentation.
• RoHS Compliant
• 3 Watts Output Power
• 1.25” x 0.8” x 0.4” 24-Pin DIP Plastic Package
• 2:1 & 3:1 Wide Input Voltage Ranges
• 1500VDC I/O Isolation
• High Efficiency up to 81%
• Single & Dual Fully Regulated Outputs
• -40°C to +85°C Operating Temperature Range
• Short Circuit and Over Load Protection
• Input Filter meets EN55022 Class A and FCC Level A
• UL/cUL 60950-1 (CSA Certificate) & IEC/EN 60950-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| LANC1205W3 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC1212DW3 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC1212W3 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC1215DW3 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC1215W3 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC2405W3 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC2412DW3 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC2412W3 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC2415DW3 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC2415W3 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC4805W3 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC4812DW3 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC4812W3 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC4815DW3 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC4815W3 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC505W3 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC512DW3 | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC512W3 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC515DW3 | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC515W3 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC2005W3 | Input Voltage: 20 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC2012W3 | Input Voltage: 20 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC2012DW3 | Input Voltage: 20 | Output Voltage: 12, -12 | Output Current: ±125mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC2015W3 | Input Voltage: 20 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANC2015DW3 | Input Voltage: 20 | Output Voltage: 15, -15 | Output Current: ±100mA | Output Power (W): 3 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 20, 24, 48 |
| Input Voltage Range: | 10-30, 18-36, 36-75, 4.5-9, 9-18 |
| UVLO: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 5, 12, 15, ±12, ±15 |
| Voltage Accuracy: | ±0.5% |
| Output Current: | 600mA, 250mA, 200mA, ±125mA, ±100mA |
| Output Power (Watts): | 3 |
| Short Circuit Protection: | Continuous |
| Over Voltage Protection: | 1.2 |
| General | |
| Efficiency: | Up to 81% |
| Isolation: | 1500VDC |
| Environmental | |

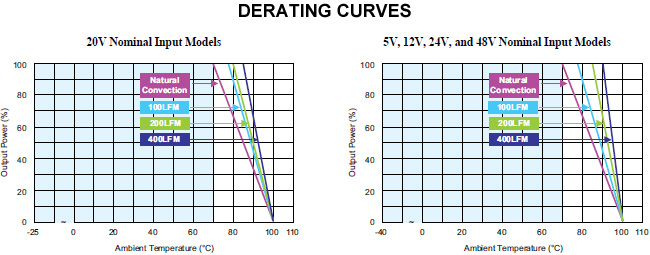

| Operating Temperature: | 20V nominal input models: -25°C to +85°C (with derating)Others: -40°C to +85°C (with derating) |
| Storage Temperature: | -50 to 125°C |
| Physical | |
| Weight: | 0.44 oz. |

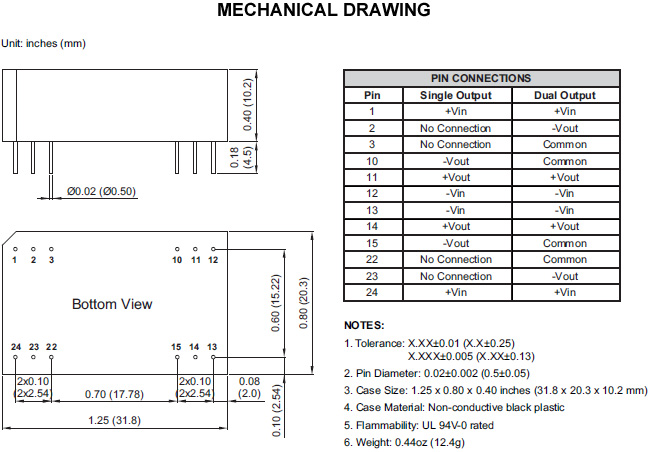

| Dimensions: | 1.25in. × 0.8in. × 0.4in. |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. These power converters require a minimum output loading to maintain all specified regulations. Operation under no-load conditions will not damage these devices; however, they may not meet all the listed specifications. 2. All DC/DC converters should be externally fused at the front end for protection. 3. UL approval can be added to any products not currently listed if required. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL/cUL 60950-1 recognition (CSA certificate). IEC/EN 60950-1 |
| RoHS Compliance: | Yes |
