JFCW
The JFCW series of single and dual output DC DC converters provide up to 15 watts output power in an industry standard package and footprint. These units are specifically designed to meet power needs in a low profile package. All models feature a 4:1 wide input voltage range of 9~36VDC or 18~75VDC. Some features include positive or negative remote on/off, 1600VDC I/O isolation, and no minimum load requirement. All models are protected against over current, over voltage, and short circuit conditions and have IEC/UL/EN 60950-1, 62368-1 safety approvals.
• Input Voltage of 9~36VDC or 18~75VDC
• Six-Sided Shielding
• High Efficiency up to 91%
• 1600VDC Input to Output Isolation
• 4:1 Ultra Wide Input Voltage Range
• Compliant to RoHS & Reach
• No Min. Load Required
• Small Size and Low Profile: 1” x 1” x 0.39”
• IEC/UL/EN 60950-1. 62368-1 Safety Approvals
• CE Marked
• Over Current, Short Circuit, and Over Voltage Protection
• Single and Dual Outputs Available
• Negative Logic Remote On/Off Optional
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| JFCW24S3.3-4000 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 4A | Output Power (W): 13.2 | No. Outputs: S | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| JFCW48S3.3-4000 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 4A | Output Power (W): 13.2 | No. Outputs: S | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| JFCW24D12-625 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±625mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| JFCW24D15-500 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| JFCW24D5-1500 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±1500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| JFCW24D24-315 | Input Voltage: 24 | Output Voltage: 24, -24 | Output Current: ±315mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| JFCW48D12-625 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±625mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| JFCW48D15-500 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| JFCW48D5-1500 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±1500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| JFCW48D24-315 | Input Voltage: 48 | Output Voltage: 24, -24 | Output Current: ±315mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| JFCW24S15-1000 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| JFCW24S24-625 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 625mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| JFCW24S5-3000 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| JFCW48S15-1000 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| JFCW48S5-3000 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| JFCW48S24-625 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 625mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| JFCW24S12-1300 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1.3A | Output Power (W): 15.6 | No. Outputs: S | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| JFCW48S12-1300 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1.3A | Output Power (W): 15.6 | No. Outputs: S | Case: Through Hole | Size: 1" × 1" × 0.39" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 18-75, 9-36 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Positive or negative logic |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, ±5, 12, ±12, 15, ±15, 24, ±24 |
| Voltage Accuracy: | ±1% |
| Output Current: | 4A, 3A, ±1500mA, ±625mA, 1.3A, 1A, ±500mA, 625mA, ±315mA |
| Output Power (Watts): | 13.2, 15, 15.6 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 91% |
| Isolation: | 1600VDC Input to Output |
| Environmental | |
| Operating Temperature: | -40 - +105°C |
| Storage Temperature: | -55 to +125°C |
| Physical | |
| Weight: | 0.53 oz. (15g) |

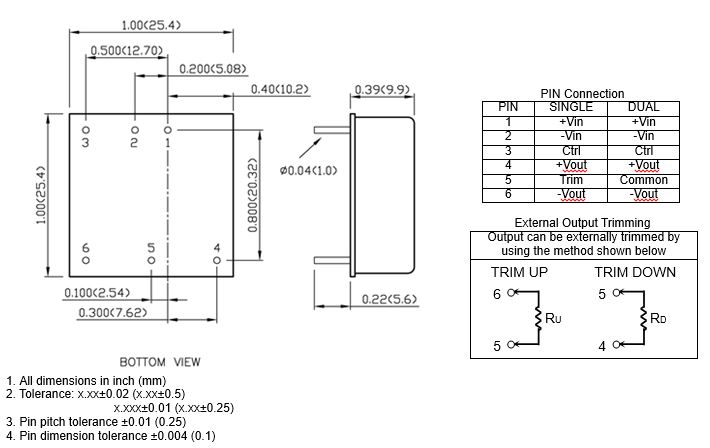

| Dimensions: | 1in. × 1in. × 0.39in. (25.4mm x 25.4mm x 9.9mm) |
| Case Material: | Nickel-Coated Copper |
| Notes & safety | |
| Notes: | (1) Add “V” to end of 5V models for -10 ~ +20% adjustability. (2) This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must always be used. *Due to advances in technology, specifications subject to change without notice |
| Safety Approvals: | IEC/UL/EN60950-1, 62368-1 |
| RoHS Compliance: | Yes |
