HVIB
The HVIB Series consists of 500 watt dc/dc converters with a single output and a 175~405VDC input voltage range. The HVIB series is being introduced to answer the needs of higher power systems requiring off-line voltages at higher power levels up to 500 watts. The HVIB is particularly suited for use in telecommunications equipment, network (LANs/WANs) equipment, and industrial and test equipment. As specialists in modified standard and customized power solutions, Wall Industries is also capable of rapidly customizing the HVIB series to meet specific customer needs.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| HVIB300S12-500 | Input Voltage: 300 | Output Voltage: 12 | Output Current: 41.67A | Output Power (W): 500 | No. Outputs: S | Case: Through Hole | Size: 6" x 3" x 0.69" | Get a Quote |
| HVIB300S24-500 | Input Voltage: 300 | Output Voltage: 24 | Output Current: 20.83A | Output Power (W): 500 | No. Outputs: S | Case: Through Hole | Size: 6" x 3" x 0.69" | Get a Quote |
| HVIB300S28-500 | Input Voltage: 300 | Output Voltage: 28 | Output Current: 17.86A | Output Power (W): 500 | No. Outputs: S | Case: Through Hole | Size: 6" x 3" x 0.69" | Get a Quote |
| HVIB300S48-500 | Input Voltage: 300 | Output Voltage: 48 | Output Current: 10.42A | Output Power (W): 500 | No. Outputs: S | Case: Through Hole | Size: 6" x 3" x 0.69" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 300 |
| Input Voltage Range: | 175~405 |
| UVLO: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 12, 24, 28, 48 |
| Voltage Accuracy: | 99%-101% of Vout |
| Output Current: | 41.67A, 20.83A, 17.86A, 10.42A |
| Output Power (Watts): | 500 |
| Output Trim/Adjustability: | ±10% |
| Thermal Protection: | 105°C |
| General | |
| Isolation: | 3000Vrms (1 minute) |
| Environmental | |
| Operating Temperature: | -40 to 100°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | TBD |

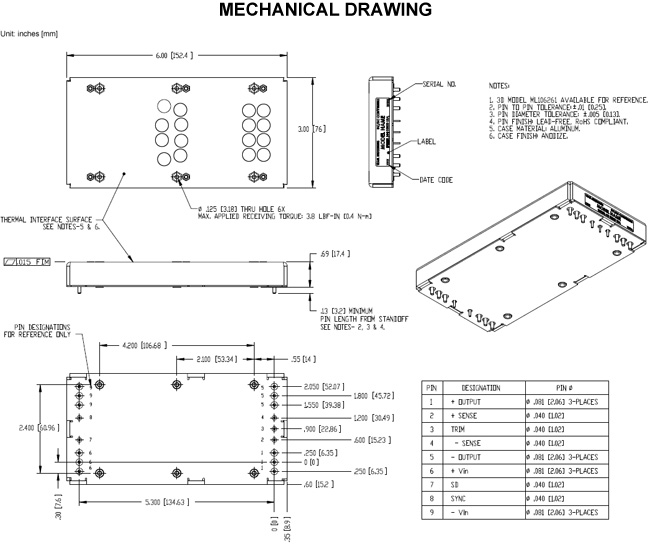

| Dimensions: | 6.00" x 3.00 x 0.69 |
| Notes & safety | |
| Notes: | Due to advances in technology, specifications are subject to change without notice. |
