FIL FLMCF
The FIL FLMCF is a series of non-isolated EMI filter and transient protectors. This model series comes in a low profile package and offers 4:1 input range. It features reverse polarity protection, remote on/off, and over current, over temperature, over voltage, under voltage, and short circuit protection. The FIL FLMC-2805 is RoHS and REACH compliant and are designed to meet MIL-STD 1275D and MIL-STD 461G standards.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| FIL FLMCF-2805 | Input Voltage: 28 | Output Voltage: - | Output Current: 5A | Output Power (W): 45 | No. Outputs: S | Case: EMI Filter | Size: 1.6" x 1" x 0.4" | Get a Quote |
| FIL FLMCF-2808 | Input Voltage: 28 | Output Voltage: - | Output Current: 8A | Output Power (W): 75 | No. Outputs: S | Case: EMI Filter | Size: 2" x 1" x 0.4" | Get a Quote |
| FIL FLMCF-2810 | Input Voltage: 28 | Output Voltage: - | Output Current: 10A | Output Power (W): 150 | No. Outputs: S | Case: EMI Filter | Size: 2.26" x 1.45" x 0.5" | Get a Quote |
| FIL FLMCF-2815 | Input Voltage: 28 | Output Voltage: - | Output Current: 15A | Output Power (W): 250 | No. Outputs: S | Case: EMI Filter | Size: 2.26" x 1.45" x 0.5" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 28 |
| Input Voltage Range: | 9~36 |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | - |
| Output Current: | 5A, 8A, 10A, 15A |
| Output Power (Watts): | 45, 75, 150, 250 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Thermal Protection: | 115ºC |
| General | |
| Efficiency: | Up to 98% |
| Isolation: | 2250VDC |
| Environmental | |
| Operating Temperature: | -40 to +105°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | FIL FLMCF-2805: 0.069oz (19.7g) FIL FLMCF-2808: 0.99oz (28g) FIL FLMCF-2810 & FIL FLMCF-2815: 2.26oz (64g) |

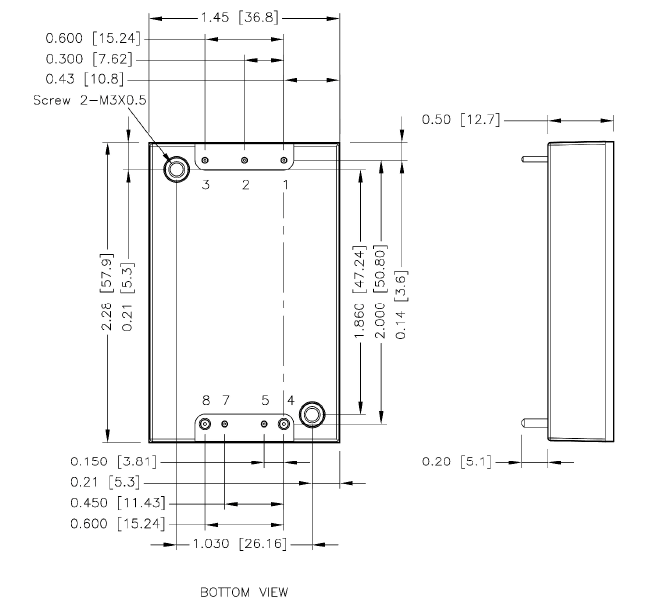

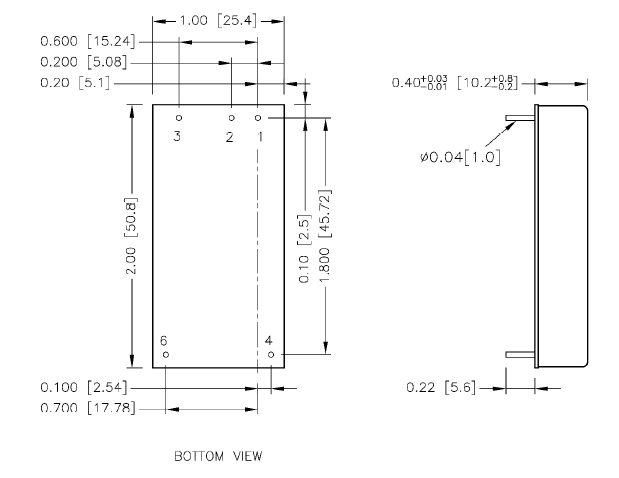

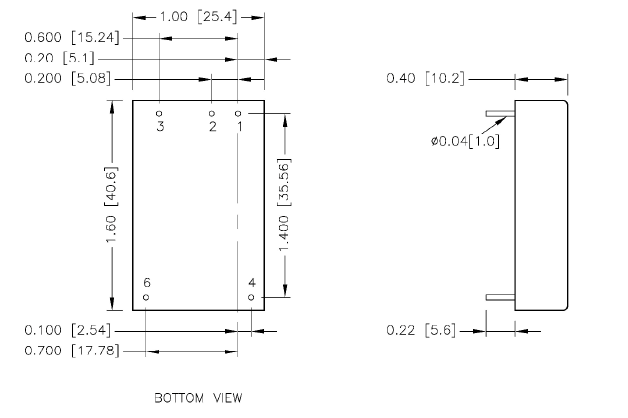

| Dimensions: | FIL FLMCF-2805: 1.6in x 1in x 0.4in (40.6mm x 25.4mm x 10.2mm) FIL FLMCF-2808: 2in x 1in x 0.4in (50.8mm x 25.4mm x 10.2mm) FIL FLMCF-2810 & FIL FLMCF-2815: 2.26in x 1.45in x 0.5in (57.9mm x 36.8mm x 12.7mm) |
| Case Material: | FIL FLMCF-2805: Non-Conductive Black Plastic FIL FLMCF-2808: Copper FIL FLMCF-2810 & FIL FLMCF-2815: Plastic |
| Notes & safety | |
| Notes: | 1. The FIL FLMCF series is a DC front-end module that provides EMI filtering and transient protection. The module enables designers using certain Wall 24V DC/DC converters to meet conducted emission and conducted susceptibility per MIL-STD-461G. For list of compliant 24V DC/DC converter series, please contact factory. 2. Contact factory for more details on recommended external components. CAUTION: This power module is not internally fused. An input line fuse must always be used. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | MIL-STD-1275E Surge Susceptibility, MIL-STD-704F Surge Susceptibility, RTCA DO-160G Surge Susceptibility |
| RoHS Compliance: | Yes |
