DH40

The DH40 series is the latest generation of high performance DC/DC converters setting a new standard concerning power density. These converters offer 40 Watts of continuous output power in a 2.0” x 1.0” x 0.4” encapsulated, shielded metal package. The DH40 series has single and dual output models with 2:1 wide input voltage ranges of 9-18VDC, 18-36VDC, and 36-75VDC. Advanced circuit topology provides a very high efficiency up to 92% and an operating temperature range of -40°C to +80°C. Further features include remote on/off, trimmable output voltage, under-voltage lockout as well as over load, over voltage, short circuit, and over-temperature protection. These converters are RoHS compliant and are ideal for use in battery operated equipment, instrumentation, distributed power architectures in communication and industrial electronics and many other space critical applications.

• RoHS Compliant • 40 Watts Output Power • 2:1 Wide Input Voltage Ranges • Single & Dual Outputs • Remote ON/OFF Control • 1500VDC I/O Isolation • High Efficiency up to 92% • Under Voltage Lockout (UVLO) • 2.0” x 1.0” x 0.4” Package Size • Trimmable Output Voltage • Shielded Metal Case with Isolated Base-plate • -40°C to +80°C Operating Temperature Range • Over Load, Short Circuit, Over Voltage, and Over Temperature Protection • UL/IEC/EN 60950-1 Safety Approvals (Pending) • Heatsink (Optional)
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DH12S3.3-26 Input Voltage: 12 Output Voltage: 3.9 Output Current: 8A Output Power (W): 26.4 No. Outputs: S Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH24S3.3-26 Input Voltage: 24 Output Voltage: 3.9 Output Current: 8A Output Power (W): 26.4 No. Outputs: S Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH48S3.3-26 Input Voltage: 48 Output Voltage: 3.9 Output Current: 8A Output Power (W): 26.4 No. Outputs: S Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH12S5-40 Input Voltage: 12 Output Voltage: 6.2 Output Current: 8A Output Power (W): 40 No. Outputs: S Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH12S12-40 Input Voltage: 12 Output Voltage: 15 Output Current: 3.33A Output Power (W): 40 No. Outputs: S Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH12S15-40 Input Voltage: 12 Output Voltage: 18 Output Current: 2.67A Output Power (W): 40 No. Outputs: S Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH12S24-40 Input Voltage: 12 Output Voltage: 30 Output Current: 1.67A Output Power (W): 40 No. Outputs: S Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH24S5-40 Input Voltage: 24 Output Voltage: 6.2 Output Current: 8A Output Power (W): 40 No. Outputs: S Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH24S12-40 Input Voltage: 24 Output Voltage: 15 Output Current: 3.33A Output Power (W): 40 No. Outputs: S Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH24S15-40 Input Voltage: 24 Output Voltage: 18 Output Current: 2.67A Output Power (W): 40 No. Outputs: S Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH24S24-40 Input Voltage: 24 Output Voltage: 30 Output Current: 1.67A Output Power (W): 40 No. Outputs: S Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH48S5-40 Input Voltage: 48 Output Voltage: 6.2 Output Current: 8A Output Power (W): 40 No. Outputs: S Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH48S12-40 Input Voltage: 48 Output Voltage: 15 Output Current: 3.33A Output Power (W): 40 No. Outputs: S Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH48S15-40 Input Voltage: 48 Output Voltage: 18 Output Current: 2.67A Output Power (W): 40 No. Outputs: S Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH48S24-40 Input Voltage: 48 Output Voltage: 30 Output Current: 1.67A Output Power (W): 40 No. Outputs: S Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH12D12-40 Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±1.67A Output Power (W): 40 No. Outputs: D Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH12D15-40 Input Voltage: 12 Output Voltage: 15, -15 Output Current: ±1.33A Output Power (W): 40 No. Outputs: D Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH24D12-40 Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±1.67A Output Power (W): 40 No. Outputs: D Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH24D15-40 Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±1.33A Output Power (W): 40 No. Outputs: D Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH48D12-40 Input Voltage: 48 Output Voltage: 12, -12 Output Current: ±1.67A Output Power (W): 40 No. Outputs: D Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
DH48D15-40 Input Voltage: 48 Output Voltage: 15, -15 Output Current: ±1.33A Output Power (W): 40 No. Outputs: D Case: Through Hole Size: 2" x 1" x 0.43" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 12, 24, 48
Input Voltage Range: 18~36, 36~75, 9~18
Input Filter: LC Filter
Remote ON/OFF: Positive Logic
UVLO: 12VDC Input Models: 8.3VDC24VDC Input Models: 16.5VDC48VDC Input Models: 33VDC
Input Frequency: 0 Hz
Output
Output Voltage: 3.3, 5, 12, 15, 24, ±12, ±15
Voltage Accuracy: ±1.0%
Output Current: 8A, 3.33A, 2.67A, ±1.67A, ±1.33A
Output Power (Watts): 26.4, 40
Output Trim/Adjustability: ±10%
Short Circuit Protection: hiccup, automatic recovery
Over Voltage Protection: Yes
Thermal Protection: 110°C
General
Efficiency: Up to 92%
Isolation: 1500VDC min. (input to output)
Environmental
Operating Temperature: See Data Sheet
Storage Temperature: -50 to 125°C
Physical
Weight: 1.06 oz

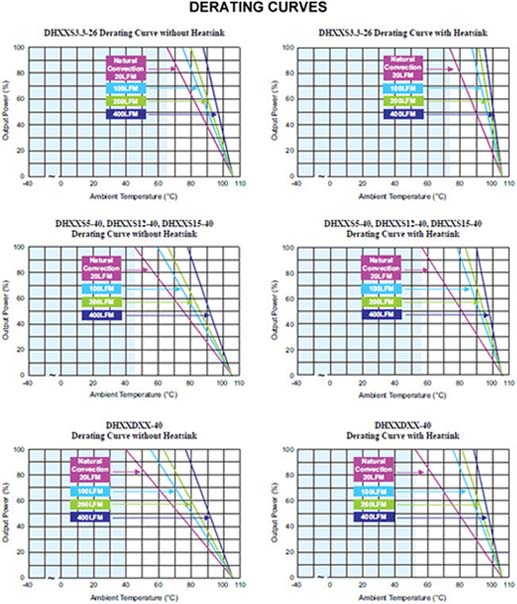

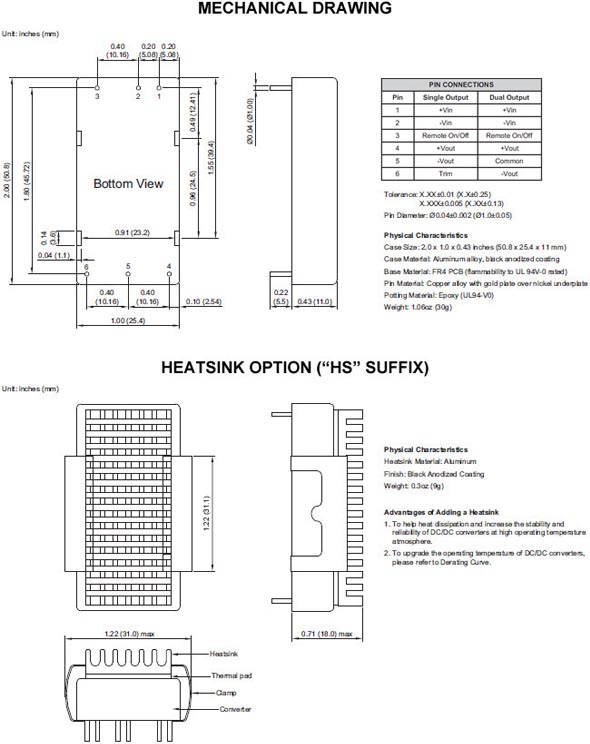

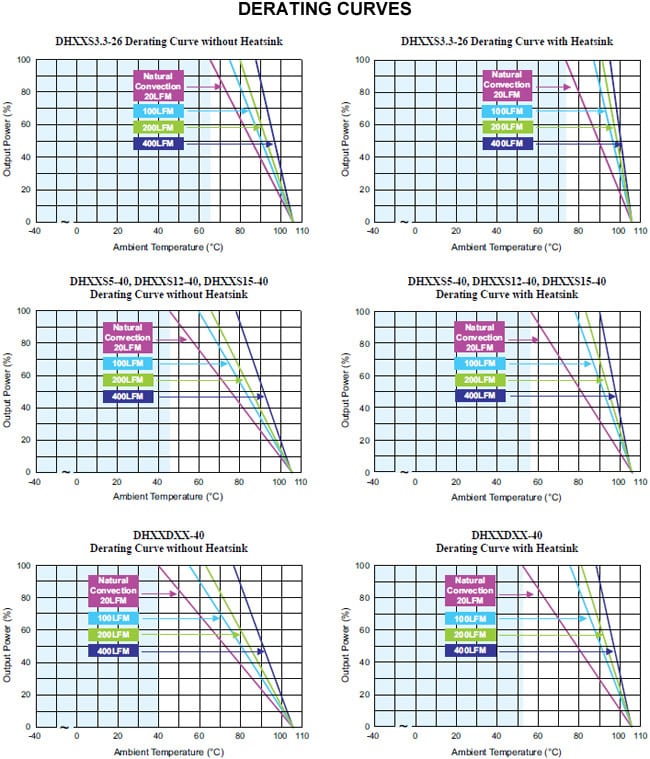

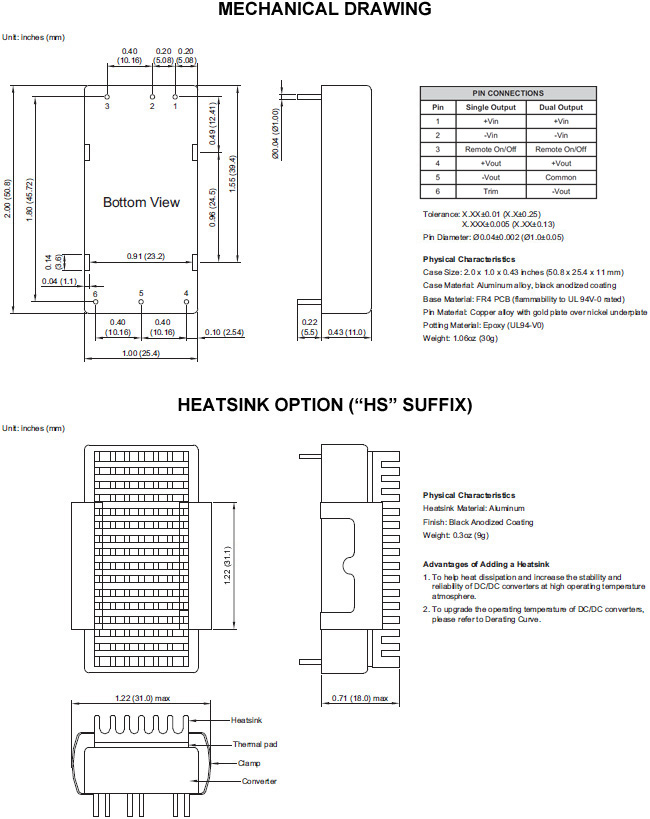

Dimensions: 2.0 x 1.0 x 0.43
Case Material: Aluminum Alloy, Black Anodized Coating
Shielding: Six-Sided
Notes & safety
Notes: 1. “*” for each output
2. Transient recovery time is measured to within 1% error band for a step change in output load from 75% to 100%.
3. All DC/DC converters should be externally fused at the front end for protection.
4. To order the converter with a heatsink, please add the suffix “HS” to the model number. (Ex: DH12S12-40HS)
5. To order the converter without Remote on/off control, please add the suffix “N” to the model number. (Ex: DH12S12-40N)
6. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/IEC/EN 60950-1 (Pending)
RoHS Compliance: Yes
