DD

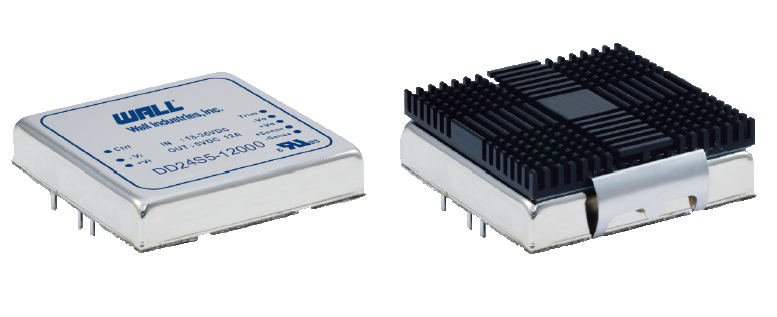

The DD Series offers 60 watts of output power from a 2 x 2 x 0.4 inch package. The DD series operates off 2:1 wide input voltage ranges of 18-36VDC and 36-75VDC and features 1600VDC of isolation, short-circuit, over load, over temperature, and over-voltage protection, as well as six sided shielding. This series has IEC/UL/EN60950-1 safety approvals and is RoHS and REACH compliant.

• Single Outputs • High Efficiency up to 91% • RoHS & REACH Compliant • 1600VDC Isolation Voltage • No Minimum Load Required • Six-Sided Shielding • 2:1 Wide Input Voltage Range • Remote On/Off • 60 Watts Maximum Output power • IEC/UL/EN60950-1
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DD24S3.3-14000 Input Voltage: 24 Output Voltage: 3.3 Output Current: 14A Output Power (W): 46.2 No. Outputs: S Case: Through Hole Size: 2" × 2" × 0.4" Get a Quote
DD48S3.3-14000 Input Voltage: 48 Output Voltage: 3.3 Output Current: 14A Output Power (W): 46.2 No. Outputs: S Case: Through Hole Size: 2" × 2" × 0.4" Get a Quote
DD24S12-5000 Input Voltage: 24 Output Voltage: 12 Output Current: 5A Output Power (W): 60 No. Outputs: S Case: Through Hole Size: 2" × 2" × 0.4" Get a Quote
DD24S15-4000 Input Voltage: 24 Output Voltage: 15 Output Current: 4A Output Power (W): 60 No. Outputs: S Case: Through Hole Size: 2" × 2" × 0.4" Get a Quote
DD24S5-12000 Input Voltage: 24 Output Voltage: 5 Output Current: 12A Output Power (W): 60 No. Outputs: S Case: Through Hole Size: 2" × 2" × 0.4" Get a Quote
DD48S12-5000 Input Voltage: 48 Output Voltage: 12 Output Current: 5A Output Power (W): 60 No. Outputs: S Case: Through Hole Size: 2" × 2" × 0.4" Get a Quote
DD48S15-4000 Input Voltage: 48 Output Voltage: 15 Output Current: 4A Output Power (W): 60 No. Outputs: S Case: Through Hole Size: 2" × 2" × 0.4" Get a Quote
DD48S5-12000 Input Voltage: 48 Output Voltage: 5 Output Current: 12A Output Power (W): 60 No. Outputs: S Case: Through Hole Size: 2" × 2" × 0.4" Get a Quote
DD24S24-2500 Input Voltage: 24 Output Voltage: 24 Output Current: 2500mA Output Power (W): 60 No. Outputs: S Case: Through Hole Size: 2" x 2" x 0.4" Get a Quote
DD48S24-2500 Input Voltage: 48 Output Voltage: 24 Output Current: 2500mA Output Power (W): 60 No. Outputs: S Case: Through Hole Size: 2" x 2" 0.4" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 24, 48
Input Voltage Range: 18-36, 36-75
Input Filter: Pi Type
Remote ON/OFF: ref. -Vin
UVLO: Yes
Input Frequency: 0 Hz
Output
Output Voltage: 3.3, 5, 12, 15, 24
Voltage Accuracy: ±1%
Output Current: 2.5A, 4A, 5A, 12A, 14A
Output Power (Watts): 46.2, 60
Output Trim/Adjustability: 24Vout: -10/+20%
Other Models: ±10%
Short Circuit Protection: Hiccup, Automatic Recovery
Over Voltage Protection: Yes
Thermal Protection: Yes
General
Efficiency: Up to 91%
Isolation: 1600VDC min.
Environmental

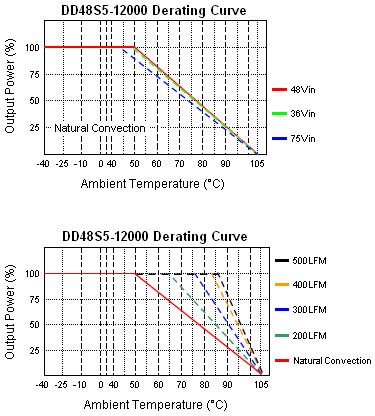

Operating Temperature: -40 to 110°C
Storage Temperature: -55 to 125°C
Physical
Weight: 2.11 oz.

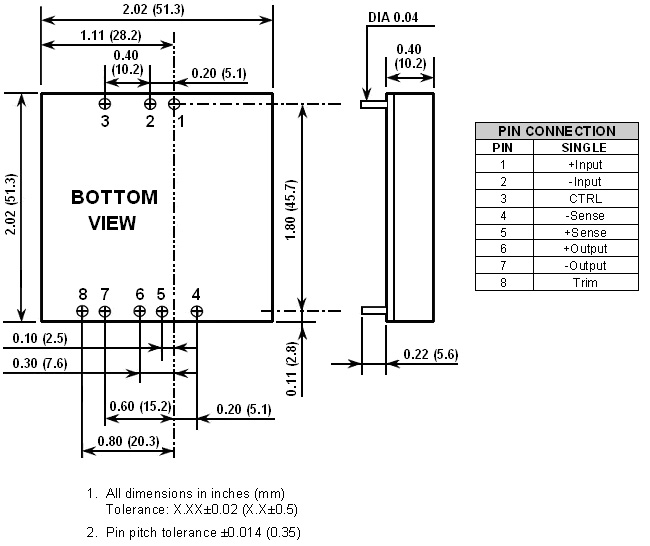

Dimensions: 2 in × 2 in. × 0.4 in.
Case Material: Nickel-coated copper
Shielding: six sided
Notes & safety
Notes: 1. Referred to -Vin pin
2. This product is Listed to applicable standards and requirements by UL.
3. With an external input filter capacitor (Nippon chemi-con KY series, 220µF/100V.
CAUTION: This power module is not internally fused. An input line fuse must always be used.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: IEC60950-1, UL60950-1, EN60950-1
RoHS Compliance: Yes
