DCSMU2

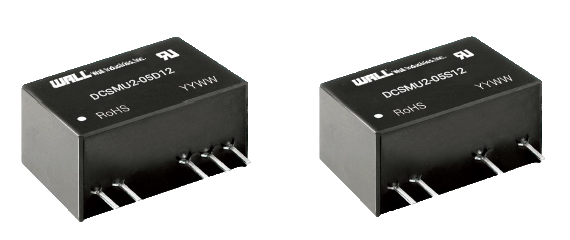

The DCSMU2 series of DC/DC converters offers 2 watt of output power in a compact SIP package. This series consists of unregulated single and dual output models with fixed input voltage. Each model features internal surface mounted design, reinforced insulation, and high efficiency. This series is also RoHS compliant and has EN60601-1, ANSI/AAMI ES60601-1 (1xMOPP/2xMOOP) approvals.
• Fixed Input Voltage • Unregulated Dual and Single Outputs • High Efficiency • Reinforced Insulation • I/O Isolation Test Voltage:4.2kVAC or 6kVDC • Compact SIP Package • Patient Leakage Current: Max 2µA • Short Circuit Protection • Internal Surface Mounted Design • Industry Standard Pin-Out • RoHS Compliant • EN60601-1, ANSI/AAMI ES60601-1 Approval (1xMOPP/2xMOOP)
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCSMU2-05S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-05S12 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-05S15 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-15S05 | Input Voltage: 15 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-15S15 | Input Voltage: 15 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-05D05 | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-05D09 | Input Voltage: 5 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-05D12 | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-05D15 | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-12D05 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-12D09 | Input Voltage: 12 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-12D12 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-15D05 | Input Voltage: 15 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-15D09 | Input Voltage: 15 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-15D15 | Input Voltage: 15 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-24D05 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±200mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-24D09 | Input Voltage: 24 | Output Voltage: 9, -9 | Output Current: ±111mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| DCSMU2-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±67mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.39" x 0.49" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 15, 24 |
| Input Voltage Range: | 4.5-5.5, 10.8-13.2, 13.5-16.5, 21.6-26.4 |
| Input Filter: | Capacitance Filter |
| Output | |
| Output Voltage: | 5, 12, 15, ±5, ±9, ±12, ±15 |
| Voltage Accuracy: | See Data Sheet |
| Output Current: | 400mA, 167mA, 133mA, ±200mA, ±111mA, ±83mA, ±67mA |
| Output Power (Watts): | 2 |
| Short Circuit Protection: | 3S |
| General | |
| Efficiency: | Up to 84% |
| Isolation: | Up to 6000VAC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.15oz (4.2g) |

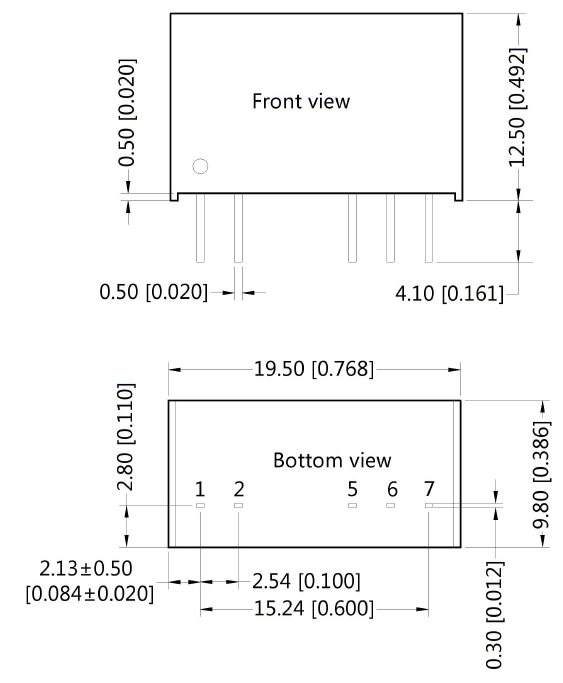

| Dimensions: | 0.76 x 0.39 x 0.49in (19.5 x 9.8 x 12.50mm) |
| Case Material: | Black Plastic, Flame-Retardant and Heat-Resistant (UL94-V0) |
| Notes & safety | |
| Notes: | 1. The specified capacitive load value for positive and negative outputs are identical. 2. Contact factory for more information about reflected ripple current testing method. 3. Output voltage accuracy of DCSMU2-15D15 with 10% load, min. -5% 4. Ripple and noise tested with ‘parallel cable’ method. Contact factory for more information. 5. At the end of the short circuit duration, the supply voltage must be disconnected from the modules. 6. Patient leakage current and reinforced insulation is based on a 250VAC, 50/60Hz system input voltage. 7. The UL certification (ANSI/AAMI ES60601-1) of this series is approved, series meets 1xMOPP/2xMOOP when system input voltage is with 250VAC, 50/60Hz. 8. See ‘EMC (Class B) Compliance Circuit’ for recommended circuit. 9. In order to guarantee product performance and data sheet compliance, product must be operated within specifications and load range requirement. 10. Maximum capacitive load offered was tested at input voltage range and full load. 11. Product customization is available. Contact factory for more information. 12. Products should be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | EN60601-1, ANSI/AAMI ES60601-1 Approval (1xMOPP/2xMOOP) |
| RoHS Compliance: | Yes |
