DCSMU1
The DCSMU1 series of DC/DC converters offers 1 watt of output power in a compact SIP package. This series consists of isolated and unregulated single and dual output models with fixed input voltage. Each model features internal surface mounted design, reinforced insulation, and high efficiency. This series is also RoHS compliant and has EN60601-1, ANSI/AAMI ES60601-1 (1xMOPP/2xMOOP), and IEC60950 approvals.
• Fixed Input Voltage • Isolated and Unregulated Positive-Negative Dual and Single Outputs • High Efficiency • Reinforced Insulation • Isolation Voltage:4200VAC or 6000VDC • Compact SIP Package • Patient Leakage Current: Max 2µA • Short Circuit Protection • Internal Surface Mounted Design • International Standard Pin-Out • RoHS Compliant • EN60601-1, ANSI/AAMI ES60601-1 Approval (1xMOPP/2xMOOP) • IEC60950 Approval
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCSMU1-03S05 | Input Voltage: 3.3 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-05S03 | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-05S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-05S12 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-15S15 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-05D05 | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-05D09 | Input Voltage: 5 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DSCMU1-05D12 | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-05D15 | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-12D05 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-12D09 | Input Voltage: 12 | Output Voltage: 9, -9 | Output Current: ±6mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-12D12 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-15D15 | Input Voltage: 15 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-24D05 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-24D09 | Input Voltage: 24 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| DCSMU1-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.76" x 0.39" x 0.49" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 3.3, 5, 12, 24 |
| Input Voltage Range: | 2.97-3.63, 4.5-5.5, 10.8-13.2, 21.6-26.4 |
| Input Filter: | Capacitor Filter |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24, ±5, ±9, ±12, ±15 |
| Voltage Accuracy: | See Data Sheet |
| Output Current: | 303mA, 200mA, 84mA, 67mA, ±100mA, ±56mA, ±42mA, ±34mA |
| Output Power (Watts): | 1 |
| Short Circuit Protection: | 3S |
| General | |
| Efficiency: | Up to 81% |
| Isolation: | Up to 6000VAC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.15oz (4.2g) |

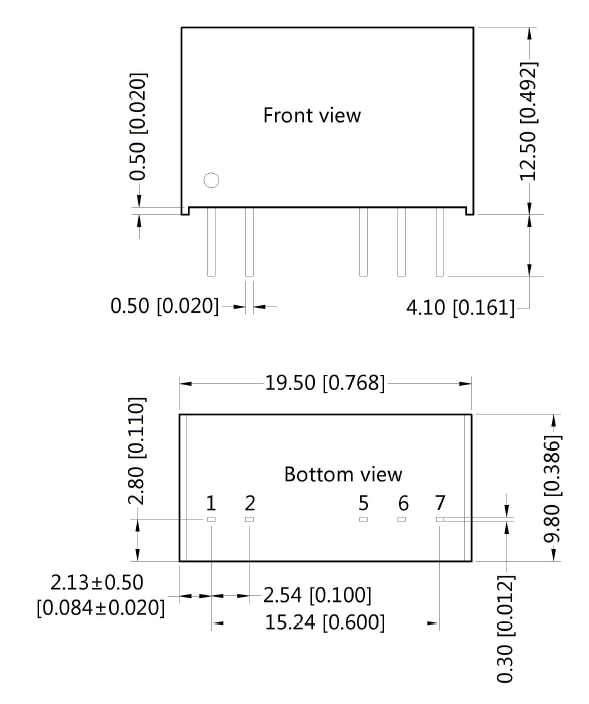

| Dimensions: | 0.76 x 0.39 x 0.49in (19.5 x 9.8 x 12.50mm) |
| Case Material: | Black Flame-Retardant and Heat-Resistant Plastic (UL94-V0) |
| Notes & safety | |
| Notes: | 1. Capacitive loads of positive and negative outputs are identical. 2. Contact factory for more information about reflected ripple current testing method. 3. Ripple and noise tested with ‘parallel cable’ method. Contact factory for specific operation methods. 4. Supply voltage must be discontinued at the end of short circuit duration which is less than 3s. 5. Patient leakage current and reinforced insulation is based on a 250VAC, 50/60Hz system input voltage. 6. The UL certification (ANSI/AAMI ES60601-1) of this series is approved, series meets 1xMOPP/2xMOOP when system input voltage is with 250VAC, 50/60Hz. 7. See ‘EMC Typical Recommended Circuit’ for recommended circuit. 8. If product is not operated within the required load range, the product performance cannot be guaranteed to comply with all parameters in the datasheet. 9. Maximum capacitive load offered was tested at input voltage range and full load. 10. Products should be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units. 11. Product customization is available. Contact factory for more information. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | EN60601-1, ANSI/AAMI ES60601-1 Approval (1xMOPP/2xMOOP), IEC60950 |
| RoHS Compliance: | Yes |
