DCSDW01
The DCSDW01 series of DC DC converters offers up to 1.08 watts of output power in a compact package. This series consists of single and dual output models with 4:1 ultra wide input range. Each model in this series has a no minimum load requirement and offers continuous short circuit protection. The DCSDW01 series has UL60950-1, EN60950-1, & IEC60950-1 safety approvals. Either surface mount or through hole package types are available as well as a 1600VDC input to output isolation or a 3000VDC optional isolation. Please call factory for order details.
• Ultra Small SMT and DIP Package
• SMT Package Qualifies for Lead-Free Reflow Solder Process According to IPC J-STD-020D
• No Minimum Load Required
• 1600VDC Input to Output Isolation or Optional 3000VDC
• Remote Control
• 4:1 Ultra Wide Input Range
• Up to 1.08 Watts of Output Power
• RoHS II & REACH Compliant
• CE Marked
• Continuous Short Circuit Protection
• UL60950-1, EN60950-1, & IEC60950-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCSDW01-12S33 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 300mA | Output Power (W): 1.08 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1.08 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 90mA | Output Power (W): 1.08 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 70mA | Output Power (W): 1.08 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 45mA | Output Power (W): 1.08 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-24S33 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 300mA | Output Power (W): 1.08 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1.08 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 90mA | Output Power (W): 1.08 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 70mA | Output Power (W): 1.08 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 45mA | Output Power (W): 1.08 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-48S33 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 300mA | Output Power (W): 1.08 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1.08 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 90mA | Output Power (W): 1.08 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 70mA | Output Power (W): 1.08 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 45mA | Output Power (W): 1.08 | No. Outputs: S | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-12D05 | Input Voltage: 12 | Output Voltage: -5, 5 | Output Current: ±100mA | Output Power (W): 1.08 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-12D12 | Input Voltage: 12 | Output Voltage: -12, 12 | Output Current: ±45mA | Output Power (W): 1.08 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-12D15 | Input Voltage: 12 | Output Voltage: -15, 15 | Output Current: ±35mA | Output Power (W): 1.08 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-24D05 | Input Voltage: 24 | Output Voltage: -5, 5 | Output Current: ±100mA | Output Power (W): 1.08 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-24D12 | Input Voltage: 24 | Output Voltage: -12, 12 | Output Current: ±45mA | Output Power (W): 1.08 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-24D15 | Input Voltage: 24 | Output Voltage: -15, 15 | Output Current: ±35mA | Output Power (W): 1.08 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-48D05 | Input Voltage: 48 | Output Voltage: -5, 5 | Output Current: ±100mA | Output Power (W): 1.08 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-48D12 | Input Voltage: 48 | Output Voltage: -12, 12 | Output Current: ±45mA | Output Power (W): 1.08 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-48D15 | Input Voltage: 48 | Output Voltage: -15, 15 | Output Current: ±35mA | Output Power (W): 1.08 | No. Outputs: D | Case: Through Hole | Size: 0.52" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-12S33S | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 300mA | Output Power (W): 1.08 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-12S05S | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1.08 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-12S12S | Input Voltage: 12 | Output Voltage: 12 | Output Current: 90mA | Output Power (W): 1.08 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-12S15S | Input Voltage: 12 | Output Voltage: 15 | Output Current: 70mA | Output Power (W): 1.08 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-12S24S | Input Voltage: 12 | Output Voltage: 24 | Output Current: 45mA | Output Power (W): 1.08 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-24S33S | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 300mA | Output Power (W): 1.08 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-24S05S | Input Voltage: 24 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1.08 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-24S12S | Input Voltage: 24 | Output Voltage: 12 | Output Current: 90mA | Output Power (W): 1.08 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-24S15S | Input Voltage: 24 | Output Voltage: 15 | Output Current: 70mA | Output Power (W): 1.08 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-24S24S | Input Voltage: 24 | Output Voltage: 24 | Output Current: 45mA | Output Power (W): 1.08 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-48S33S | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 300mA | Output Power (W): 1.08 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-48S05S | Input Voltage: 48 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1.08 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-48S12S | Input Voltage: 48 | Output Voltage: 12 | Output Current: 90mA | Output Power (W): 1.08 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-48S15S | Input Voltage: 48 | Output Voltage: 15 | Output Current: 70mA | Output Power (W): 1.08 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-48S24S | Input Voltage: 48 | Output Voltage: 24 | Output Current: 45mA | Output Power (W): 1.08 | No. Outputs: S | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-12D05S | Input Voltage: 12 | Output Voltage: -5, 5 | Output Current: ±100mA | Output Power (W): 1.08 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-12D12S | Input Voltage: 12 | Output Voltage: -12, 12 | Output Current: ±45mA | Output Power (W): 1.08 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-12D15S | Input Voltage: 12 | Output Voltage: -15, 15 | Output Current: ±35mA | Output Power (W): 1.08 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-24D05S | Input Voltage: 24 | Output Voltage: -5, 5 | Output Current: ±100mA | Output Power (W): 1.08 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-24D12S | Input Voltage: 24 | Output Voltage: -12, 12 | Output Current: ±45mA | Output Power (W): 1.08 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-24D15S | Input Voltage: 24 | Output Voltage: -15, 15 | Output Current: ±35mA | Output Power (W): 1.08 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-48D05S | Input Voltage: 48 | Output Voltage: -5, 5 | Output Current: ±100mA | Output Power (W): 1.08 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-48D12S | Input Voltage: 48 | Output Voltage: -12, 12 | Output Current: ±45mA | Output Power (W): 1.08 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| DCSDW01-48D15S | Input Voltage: 48 | Output Voltage: -15, 15 | Output Current: ±35mA | Output Power (W): 1.08 | No. Outputs: D | Case: Surface Mount | Size: 0.56" x 0.36" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 4.5-18, 9-36, 18-75 |
| Input Filter: | Capacitor |
| Remote ON/OFF: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 300mA, 200mA, 90mA, 70mA, 45mA, ±100mA, ±45mA, ±35mA |
| Output Power (Watts): | 1.08 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 81% |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | -40 - +105°C With Derating |
| Storage Temperature: | -55 - +125°C |
| Physical | |
| Weight: | 0.1 oz |

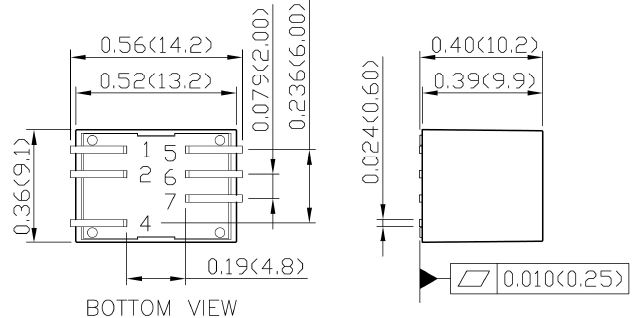

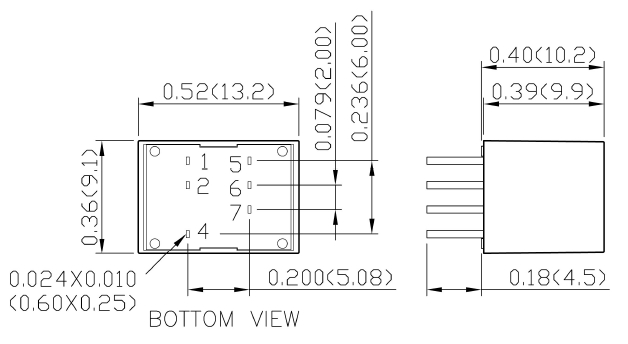

| Dimensions: | Through Hole Models: 0.52" x 0.36" x 0.40" Surface Mount Models: 0.56" x 0.36" x 0.40" |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. “S” added at the end of the model number represents SMT (surface mount) package type. 2. The standard module meets EMI Class A or Class B and input reflected current with external components. Please contact factory for more information. 3. An external input filter capacitor is required if the module will meet EN61000-4-4, EN61000-4-5. Suggested filter capacitor: Nippon chemi-con KY series, 220µF/100V. 4. This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must always be used. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
