DCQAW100

The DCQAW100 series of DC/DC power converters provides up to 90 Watts of output power in a 2.28” x 1.45” x 0.5” industry standard quarter-brick package. This series has single output models with 4:1 wide input voltage ranges of 8.5-36VDC, 16.5-75VDC, and 40-160VDC. Some features include high efficiency up to 90%, 2250VDC I/O basic insulation, and remote ON/OFF control. These converters are also protected against input under voltage, short circuit, over voltage, over load, and over temperature conditions. All models are RoHS compliant and have UL60950-1, EN60950-1, IEC60950-1, and EN50155 safety approvals. Several different options are available for this series including negative logic remote ON/OFF, heatsinks, and thru-hole inserts.

• Soft Start • Single Outputs • Input Under Voltage Protection • High Efficiency up to 90% • Remote ON/OFF Control • 4:1 Ultra Wide Input Voltage Ranges • No Minimum Load Required • Low Stand-by Power Consumption • Industry Standard Quarter-brick Package • Compliant to RoHS II & Reach • Up to 90 Watts Maximum Output Power • 2250VDC I/O Basic Insulation • Short Circuit, Over Voltage, Over Load, & Over Temp. Protection • UL60950-1, EN60950-1, IEC60950-1, & EN50155 Safety Approvals • CE Marked • Optional Heatsinks Available (Suffix “HS”) • Threaded (Standard) or Thru-Hole (Optional) Inserts Available • Railway Applications
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCQAW100-110S33 Input Voltage: 110 Output Voltage: 3.3 Output Current: 23A Output Power (W): 75.9 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-24S33 Input Voltage: 24 Output Voltage: 3.3 Output Current: 25A Output Power (W): 82.5 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-48S33 Input Voltage: 48 Output Voltage: 3.3 Output Current: 25A Output Power (W): 82.5 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-110S15 Input Voltage: 110 Output Voltage: 15 Output Current: 5.5A Output Power (W): 82.5 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-110S12 Input Voltage: 110 Output Voltage: 12 Output Current: 7A Output Power (W): 84 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-110S24 Input Voltage: 110 Output Voltage: 24 Output Current: 3.5A Output Power (W): 84 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-110S30 Input Voltage: 110 Output Voltage: 30 Output Current: 2.8A Output Power (W): 84 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-110S05 Input Voltage: 110 Output Voltage: 5 Output Current: 17A Output Power (W): 85 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-24S48 Input Voltage: 24 Output Voltage: 48 Output Current: 1.8A Output Power (W): 86.4 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-48S48 Input Voltage: 48 Output Voltage: 48 Output Current: 1.8A Output Power (W): 86.4 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-110S48 Input Voltage: 110 Output Voltage: 48 Output Current: 1.8A Output Power (W): 86.4 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-24S24 Input Voltage: 24 Output Voltage: 24 Output Current: 3.7A Output Power (W): 88.8 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-48S24 Input Voltage: 48 Output Voltage: 24 Output Current: 3.7A Output Power (W): 88.8 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-24S05 Input Voltage: 24 Output Voltage: 5 Output Current: 18A Output Power (W): 90 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-24S12 Input Voltage: 24 Output Voltage: 12 Output Current: 7.5A Output Power (W): 90 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-24S15 Input Voltage: 24 Output Voltage: 15 Output Current: 6A Output Power (W): 90 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-24S30 Input Voltage: 24 Output Voltage: 30 Output Current: 3A Output Power (W): 90 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-48S05 Input Voltage: 48 Output Voltage: 5 Output Current: 18A Output Power (W): 90 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-48S12 Input Voltage: 48 Output Voltage: 12 Output Current: 7.5A Output Power (W): 90 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-48S15 Input Voltage: 48 Output Voltage: 15 Output Current: 6A Output Power (W): 90 No. Outputs: S Case: Through Hole Get a Quote
DCQAW100-48S30 Input Voltage: 48 Output Voltage: 30 Output Current: 3A Output Power (W): 90 No. Outputs: S Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 24, 48, 110
Input Voltage Range: 16.5~75, 40~160, 8.5~36
Input Filter: Pi Type
Remote ON/OFF: Positive (standard) or Negative (optional) logic
Input Frequency: 0 Hz
Output
Output Voltage: 3.3, 5, 12, 15, 24, 30, 48
Voltage Accuracy: ±1.0%
Output Current: 25A, 18A, 7.5A, 6A, 3.7A, 3A, 1.8A, 23A, 17A, 7A, 5.5A, 3.5A, 2.8A, 1.8A
Output Power (Watts): 75.9, 82.5, 84, 85, 86.4, 88.8, 90
Output Trim/Adjustability: -20 to 10%
Short Circuit Protection: Continuous, Automatic Recovery
Over Voltage Protection: 115-130%
Thermal Protection: Yes
General
Efficiency: Up to 90%
Isolation: 2250VDC

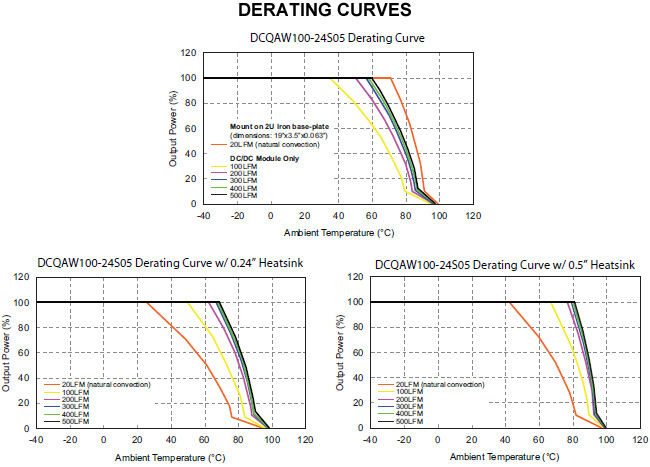

Environmental
Operating Temperature: -40 to 100°C
Storage Temperature: -55 to 125°C

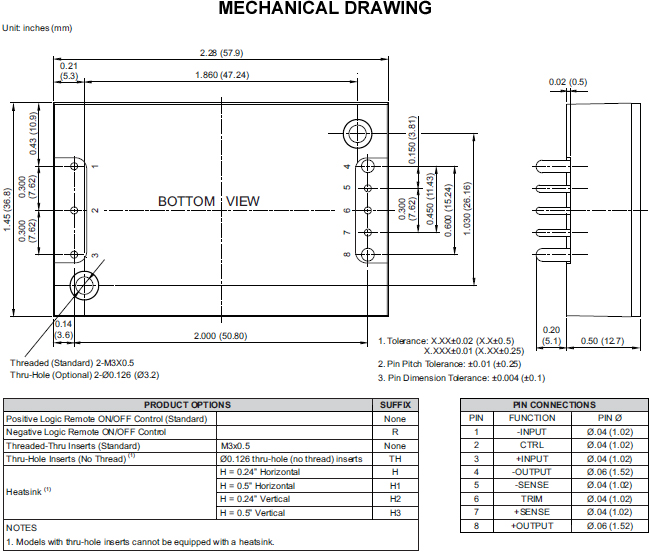

Physical
Weight: 2.26 oz
Dimensions: 2.28” x 1.45” x 0.5”
Case Material: Aluminum base-plate with plastic case
Notes & safety
Notes: 1. Input Source Impedance: The power modules will operate to specifications without external components, assuming that the source voltage has very low impedance and reasonable input voltage regulation. Highly inductive source impedances can affect the stability of the power module. Since real-world voltage sources have finite impedance, performance is improved by adding an external filter capacitor.
- For 24VDC & 48VDC input models we recommend using Nippon Chemi-con KY series, 100µF/100V.
- For 110VDC input models we recommend using Ruby-con BXF series, 39µF/200V.
2. Maximum output deviation is +10% inclusive of remote sense and trim. If remote sense is not being used the +SENSE should be connected to its corresponding +OUTPUT and likewise the -SENSE should be connected to its corresponding –OUTPUT.
3. The DCQAW100 series can only meet EMI Class A or Class B with external components added. Please contact factory for more information.
4. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5.
- For 24VDC & 48VDC input models we recommend connecting two aluminum electrolytic capacitors (Nippon chemi-con KY series, 220µF/100V) in parallel.
- For 110VDC input models we recommend connecting three aluminum electrolytic capacitors (Ruby-con BXF series, 100µF/250V) in parallel.
5. Both positive logic and negative logic remote ON/OFF control is available. Positive logic remote ON/OFF comes standard; for negative logic remote ON/OFF add the suffix “R” to the model number (Ex: DCQAW100-48S24R).

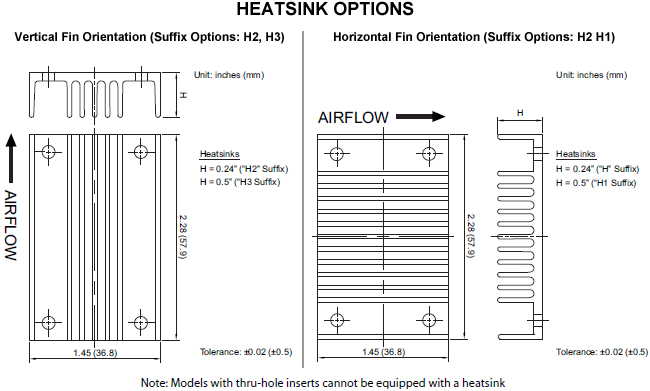

6. Optional heatsinks available. See page 5 for ordering details.
7. M3 x 0.5 threaded-thru inserts come standard. For Ø.126 thru-hole inserts add the suffix “TH” to the model number (Ex: DCQAW100-48S24TH). Models with thru- hole inserts cannot be equipped with a heatsink.
8. BASE-PLATE GROUNDING: EMI can be reduced when you connect the case pin and the four screw bolts to the shield plane.
CAUTION: This power module is not internally fused. An input line fuse must always be used.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1, EN60950-1, IEC60950-1, EN50155
RoHS Compliance: Yes
